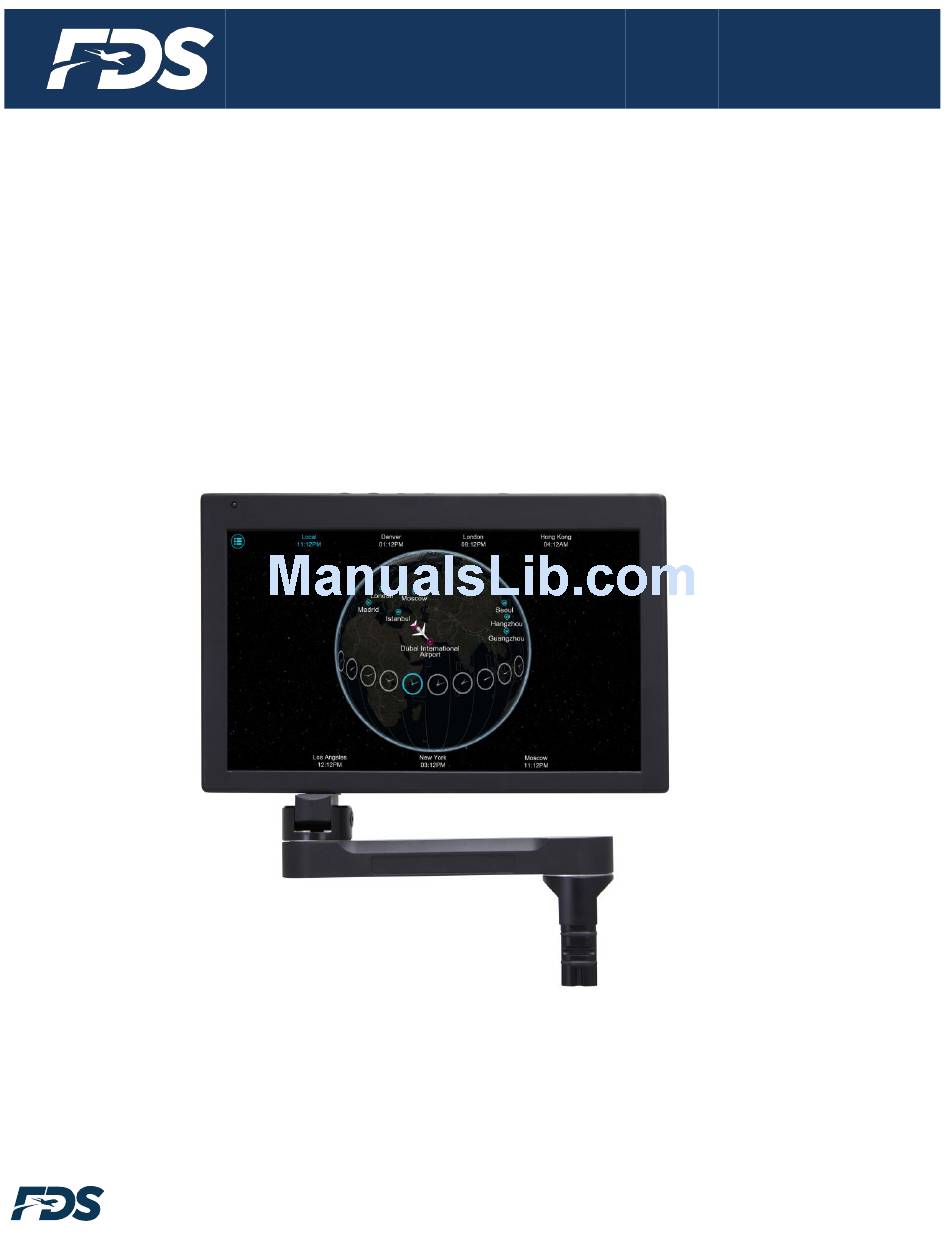

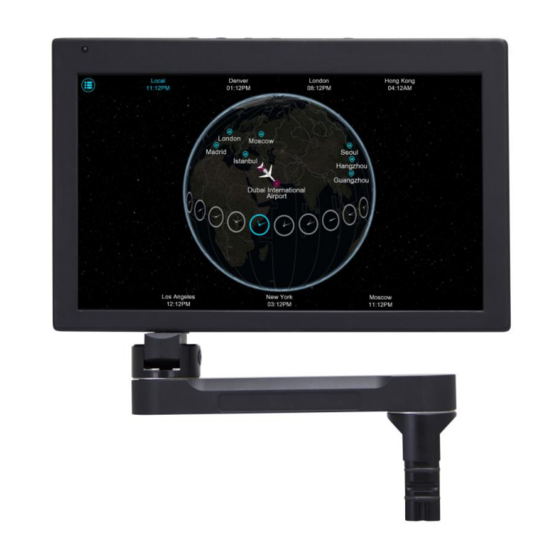

- Page 1 Revision Date: Rev: Document Number: 05/22/2017 MAN – FD102ARM Page 1 of 13 Installation and Operation Manual FD102ARM 10.2” Widescreen LCD on Arm © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com...
-
Page 2: Table Of Contents
Button Control ..................... 8 Remote Control Buttons..................9 Technical Drawing .................... 10 Technical Support ..................... 11 Instructions for Continued Airworthiness ............11 Warranty ......................12 Log of Revisions ....................13 © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 3: General Information
The articulating arm rotates 180 degrees, tilts forward and aft, and the monitor can turn 180 degrees on the end of the mount. The FD102ARM can also be connected to existing video switchers and can take a composite video input from a selector interface box. Multiple input sources can be selected and displayed on the monitor. -
Page 4: Specifications
This is a 12VDC monitor that requires 2 Amps of power to operate. This is also available as FD102ARM (28V) which is a 28VDC monitor that requires .5 Amp of power to operate. The unit turns on automatically upon power application. -
Page 5: Wiring Suggestions
75 Ohm video isolation transformer such as Deerfield Laboratory, Inc. Part No. 162-1 (www.deerfieldlab.com, (650) 632-4090). In most cases this should be added to the video output of the source. © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. -
Page 6: Vga Wiring
& green wires, and Raychem caps for the blue, white, and black wires. Mounting and Base Information The FD102ARM mates with a drink rail mount (FDBASE, below left), a wall mount (FDBASE-W, below right) or a flush wall mount (FDBASE-W-FM, not shown). -
Page 7: Power & Ground Wiring
P/N 748565-1 HD15F pins P/N M39029/57-354 Number Description 12VDC Power (28VDC for FD102ARM (28V)) 12VDC Ground (28VDC for FD102ARM (28V)) Composite Video #1 - Signal Composite Video #1 - Shield Composite Video #2 - Signal Composite Video #2 - Shield... -
Page 8: Operations Instructions
No pilot or aircrew action is necessary during flight or ground operation. The passengers will be able to change the video output from the FD102ARM using the video source select switch on the LCD monitor, or remotely throughout the cabin with the included IR remote. -
Page 9: Remote Control Buttons
MAN – FD102ARM Page 9 of 13 Remote Control Buttons The remote control included with the FD102ARM contains the same functionality available on the display buttons, to include power, source, menu, and directional arrows. © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. -
Page 10: Technical Drawing
Revision Date: Rev: Document Number: 05/22/2017 MAN – FD102ARM Page 10 of 13 Technical Drawing © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 11: Technical Support
05/22/2017 MAN – FD102ARM Page 11 of 13 Technical Support Should you have any questions concerning this product or other FDS Avionics Corp. products, please contact our Product Support representatives at (470) 239-7421. FDS Avionics Corp. 6435 Shiloh Road Alpharetta, GA 30005... -
Page 12: Warranty
Warranty Information All FDS Avionics Corp. (FDS) products are warranted to be free from material or manufacturing defects for a period of 24 months from the date of shipment for General Aviation customers or 12 months from the date of shipment for Government/Special Mission customers. -
Page 13: Log Of Revisions
Revised Photo, Button Controls, Remote Control Added Operating Temp, New Format, new VGA & 10/14/2011 Technical Drawing 08/24/2012 Updated format, warranty and non-PMA info 05/22/2017 New Corporate Name, Branding, Format, Warranty © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com...
