General Information

The FD151CV-QUAD is a 15.1" Low-Profile LCD which has features that allow
installation in the smallest of mounting areas with the minimum of interface equipment.
Built with retrofit aircraft integration in mind, this display can switch between three video
input sources using an infrared remote.

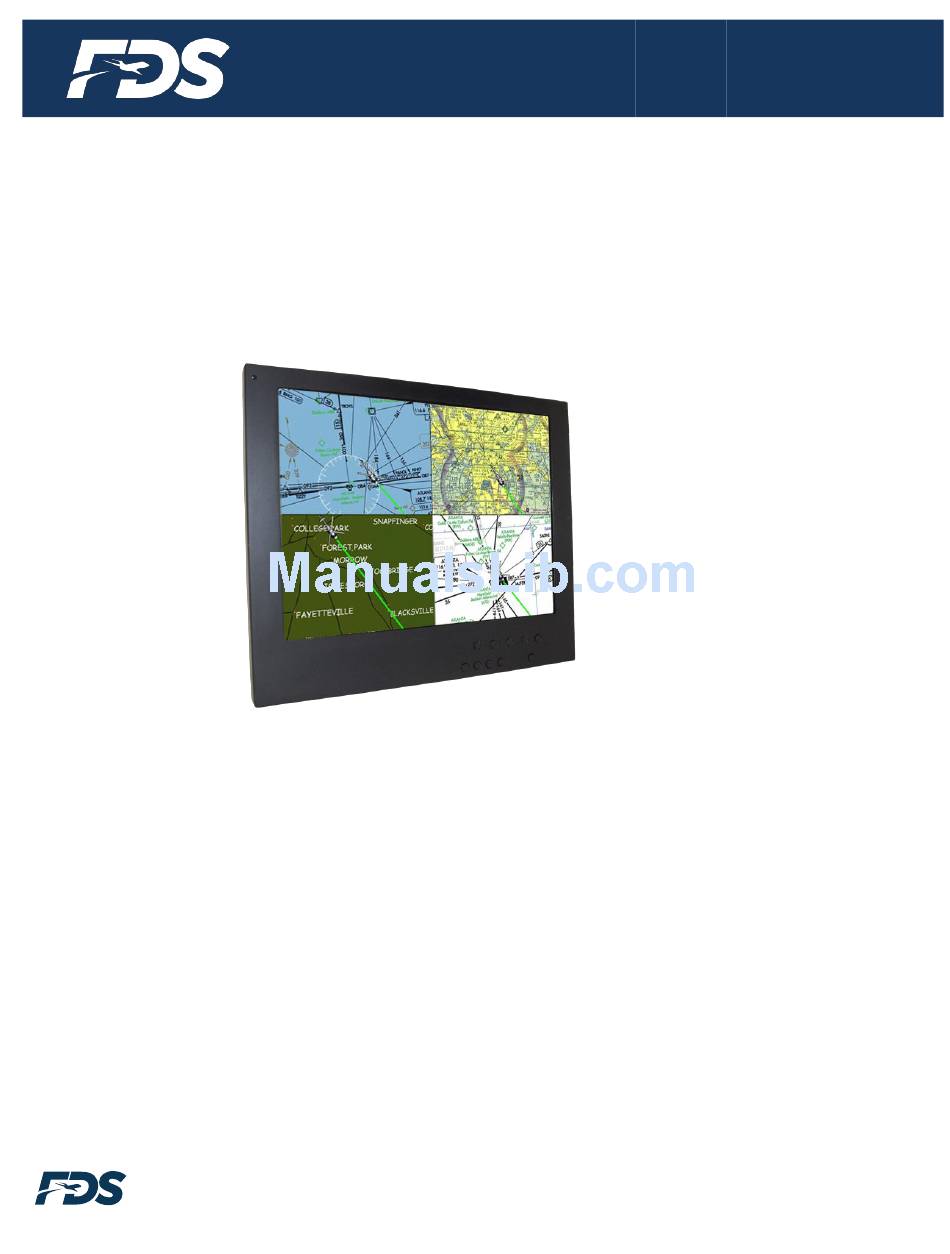

Front View

Additional Information

The FD151CV-QUAD utilizes a state of the art digital video decoding chipset for the
analog video input. The video sources in order of picture quality are VGA (computer
graphics like moving maps), and Composite Video (DVD, camera or VCR). Both NTSC
and PAL formats are auto-detected.
The FD151CV-QUAD can also be connected to existing video switchers and just take a
composite video input from a selector interface box. In this case multiple input sources
can be selected and displayed on the monitor. You would only use the IR remote to set
up the screen during installation.
The FD151CV-QUAD is made of all metal components. DO-160 testing has been
completed and is available upon request.
The LCD is protected with a .060" Lexan lens to prevent scratching of the LCD.
