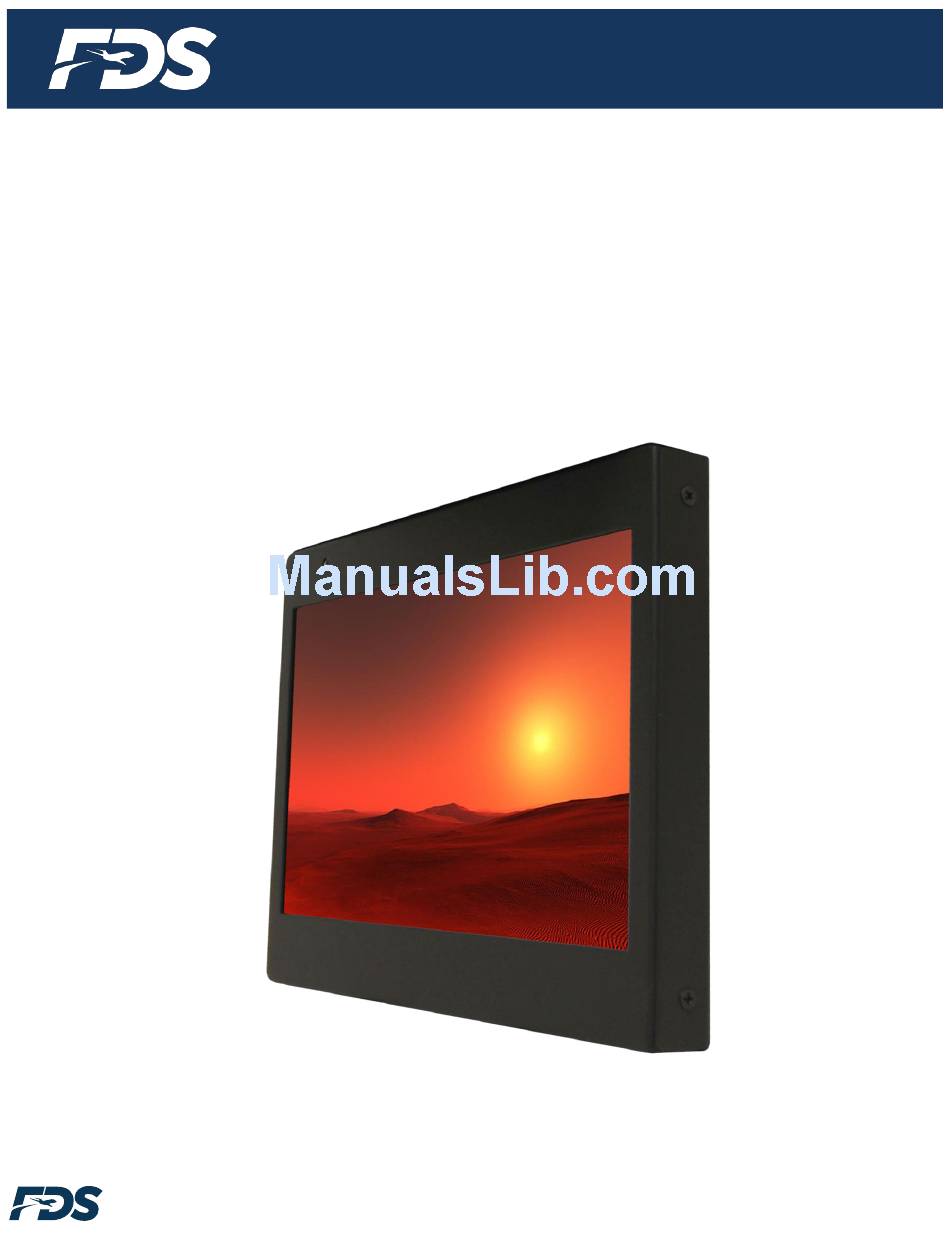

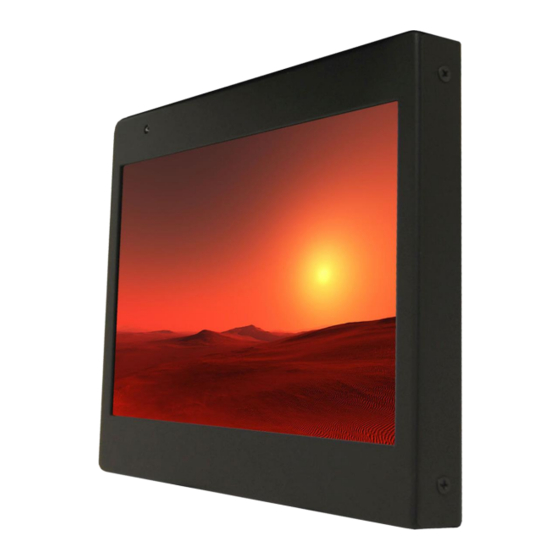

- Page 1 Revision Date: Rev: Document Number: 06/02/2017 MAN – FD102CV-LP-S Page 1 of 22 Installation and Operation Manual FD102CV-LP-S Low Profile 10.1” Widescreen LCD © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com...
-
Page 2: Specifications
3 lbs. 15 oz. Materials Aluminum Features PC & Video Input VGA, 2 Composite Video Video type Supported NTSC, PAL Screen Control On Screen Display Menu Remote control IR, included © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... - Page 3 Revision Date: Rev: Document Number: 06/02/2017 MAN – FD102CV-LP-S Page 3 of 22 Connectivity Product INPUTS OUTPUTS COMMUNICATION FD102CV-LP-S © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com...
-
Page 4: Table Of Contents
OSD ........................17 Setup ........................18 Technical Drawing..................... 19 Technical Support ..................... 20 Instructions for Continued Airworthiness ............20 Warranty ......................21 Log of Revisions ....................22 © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 5: General Information/ Front View/ Additional Information
Moving Maps), and two (2x) Composite Video (DVD, Camera or VCR). Both NTSC and PAL formats are auto-detected. The FD102CV-LP-S can also be connected to existing video switchers and can take a composite video input from a selector interface box. In this case, multiple input sources can be selected and displayed on the monitor. -
Page 6: Installation Instructions
Page 6 of 22 Installation Instructions All cabin entertainment equipment, such as the FD102CV-LP-S, should be installed on a non-essential bus and have a dedicated circuit breaker. It is a requirement that a switch be installed in the cockpit so that the pilot can de-energize the entertainment system should it become necessary. -
Page 7: Composite And Audio Wiring
Recommended cable for VGA purpose is Carlisle (formally known as ECS) P/N 453005. This is a single shielded cable containing 5 separate coaxial cables, color-coded to match the functions of the wires. © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. -
Page 8: Power Ground Wiring
It is the installer's responsibility to understand the product's requirements to install the product in compliance with industry standards and safety. Operation Instructions The FD102CV-LP-S is continuously on but can be de-energized by removing power from the entertainment system. No pilot or aircrew action is necessary during flight or ground operation. -
Page 9: Operation Instructions/Button Control
SOURCE Switches between sources coming into the display. DOWN Moves to the next selection in the OSD menu. Moves to the previous selection in the OSD menu. © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 10: Remote Control Buttons
LEFT/RIGHT – Menu Move &Brightness control * Below keys used for special function. * Before using the Remote control for the first time, ensure two AAA batteries are installed. © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 11: Accessing The Osd Menu/ Osd Menu
4. WINDOWS: MAIN INPUT/OSD MENU a. OSD MENU: LANGUAGE/FLIP/TIMEOUT/H POS/V POS/BLEND LEVEL 5. SETUP: MAX BL/MIN BL/BACKLIGHT LEVEL/VIDEO PROCESSING MENU/BAUD RATE/SERIAL ID/FACTORY RESET a. VIDEO PROCESSING MENU: MPEG NR/DYNAMIC CONTRAST/MADI/TNR/CCS © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 12: Image Setting
Adjusts the saturation level of the image Hue: Adjusts the hue level of the image Sharpness: Adjusts the sharpness of the image Gamma: Compensates for non-linear response of an LCD panel © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 13: Display Setting
Scan Adjusts the scan mode based on the desired selection: Zero Scan, Mode: Over Scan, native scan, Under scan, Fit Width Scan. FDS Avionics leaving this setting at Zero Scan. Aspect Adjusts the aspect ratio based on the desired selection: auto, full Ratio: screen, 16:9, 4:3, and native. -
Page 14: Color Temp
MAN – FD102CV-LP-S Page 14 of 22 Color Temp COLOR Adjusts the color temperature based on user selection. Options are TEMP: 6500K, 7500K, 9300K, and User, Mono, Blue, Green © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 15: User
Page 15 of 22 User User The User defined color temperature submenu allows both the changing of the Gain and Offsets of the Red, Green, and Blue components. © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 16: Windows
Page 16 of 22 Windows Main This allows changing the primary source of the display. This can Source also be accomplished by using the select key or the IR remote. © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 17: Osd
Adjusts the OSD mirroring: normal, H FLIP, V FLIP, HV FLIP Timeout Adjust the OSD timeout value. H Pos Adjust the OSD Horizontal position. V Pos Adjust the OSD Vertical position Blend Adjusts the OSD transparency Level © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 18: Setup
Backlight: Adjusts the backlight intensity of the displays backlight Video Allows the user to enter the Video Processing submenu. FDS Processing Avionics does not recommend adjusting settings in this submenu. Serial ID: Changes the serial ID of the unit if utilizing RS-485 and multiple... -
Page 19: Technical Drawing
Revision Date: Rev: Document Number: 06/02/2017 MAN – FD102CV-LP-S Page 19 of 22 Technical Drawing © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 20: Technical Support
06/02/2017 MAN – FD102CV-LP-S Page 20 of 22 Technical Support Should you have any questions concerning this product or other FDS Avionics Corp. products, please contact our Service and Support representatives at 470-239-7421. FDS Avionics Corp. 6435 Shiloh Road Alpharetta, GA 30005... -
Page 21: Warranty
Limited Warranty All FDS Avionics Corp. products are warranted to be free from material or manufacturing defects for a period of 24 months from the date of shipment for General Aviation customers or 12 months from the date of shipment for Government/Special Mission customers. -
Page 22: Log Of Revisions
Added Connectivity, Ship Kit, Accessing OSD Menu, Image setting, display setting, Color Temp Menus, User Control Menu, 06/02/2017 Windows Menu, OSD, Setup Menu, Changed remote control picture © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com...
