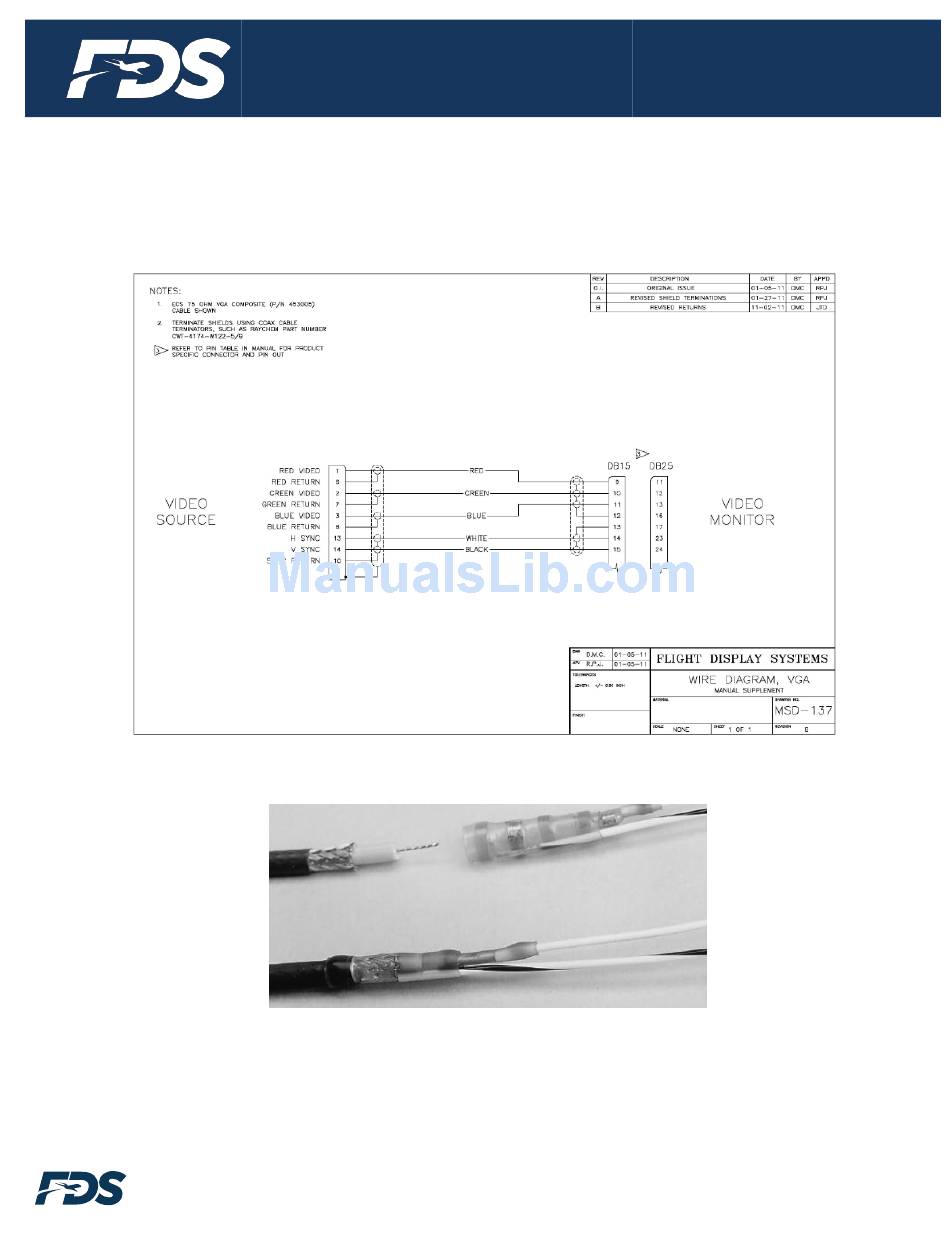

VGA Wiring
Recommended cable for VGA purpose is ECS P/N 453005. This is a single shielded
cable containing 5 separate coaxial cables, color-coded to match the functions of the
wires.
We recommend coax cables be terminated using solder sleeve coaxial cable
terminators such as Raychem Part Number CWT-4174-W122-5/9.
Power and Ground Wiring
20 AWG wire is recommended for Power and Ground applications.
