Composite Video Control Buttons

Four composite video inputs can be viewed through the FD201CV-C-1. The operator can
choose between a quad screen of four composite images at one time, or a full screen
image of any one of the composite inputs.

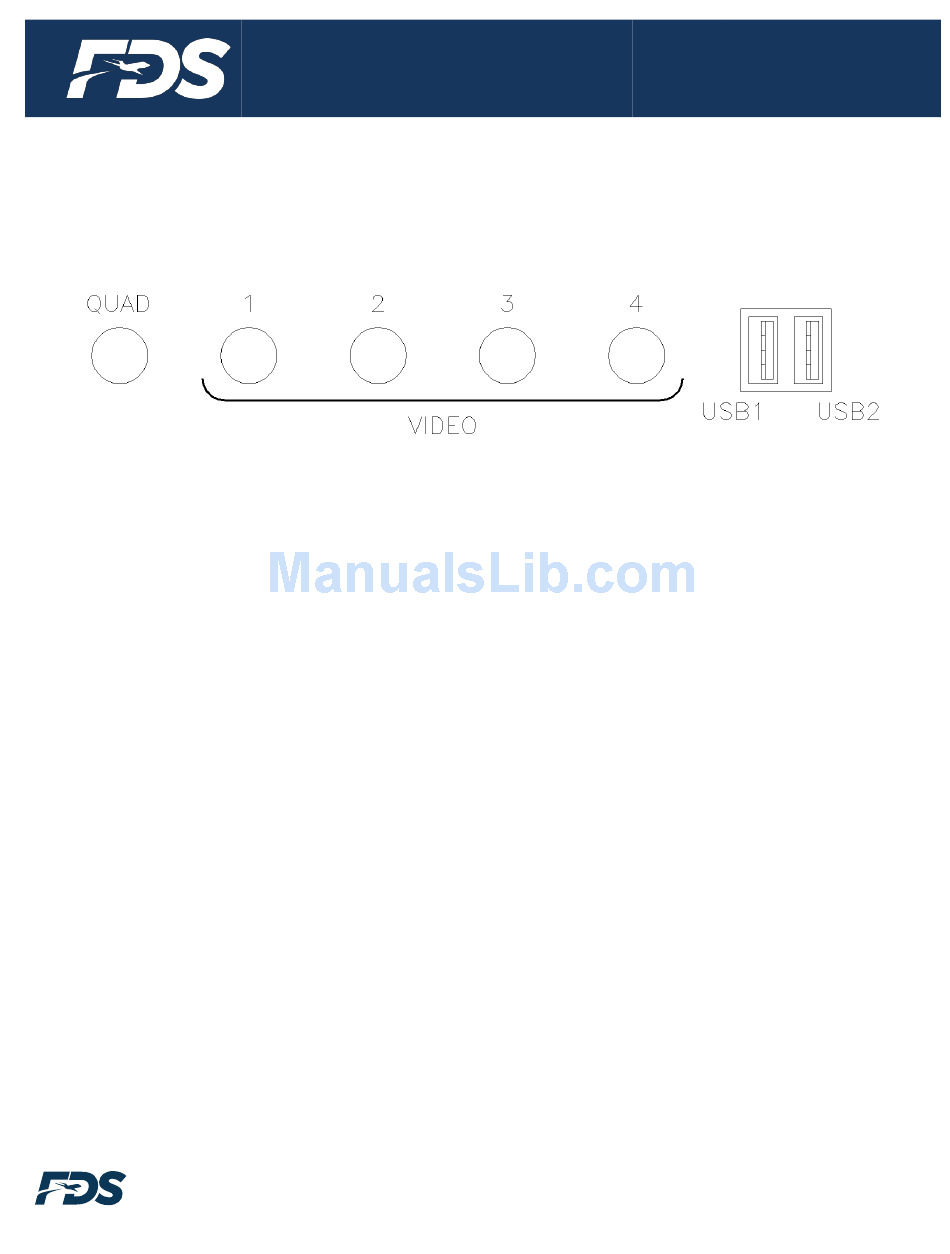

The control buttons for the composite video inputs are located on the lower right front of
the bezel.
