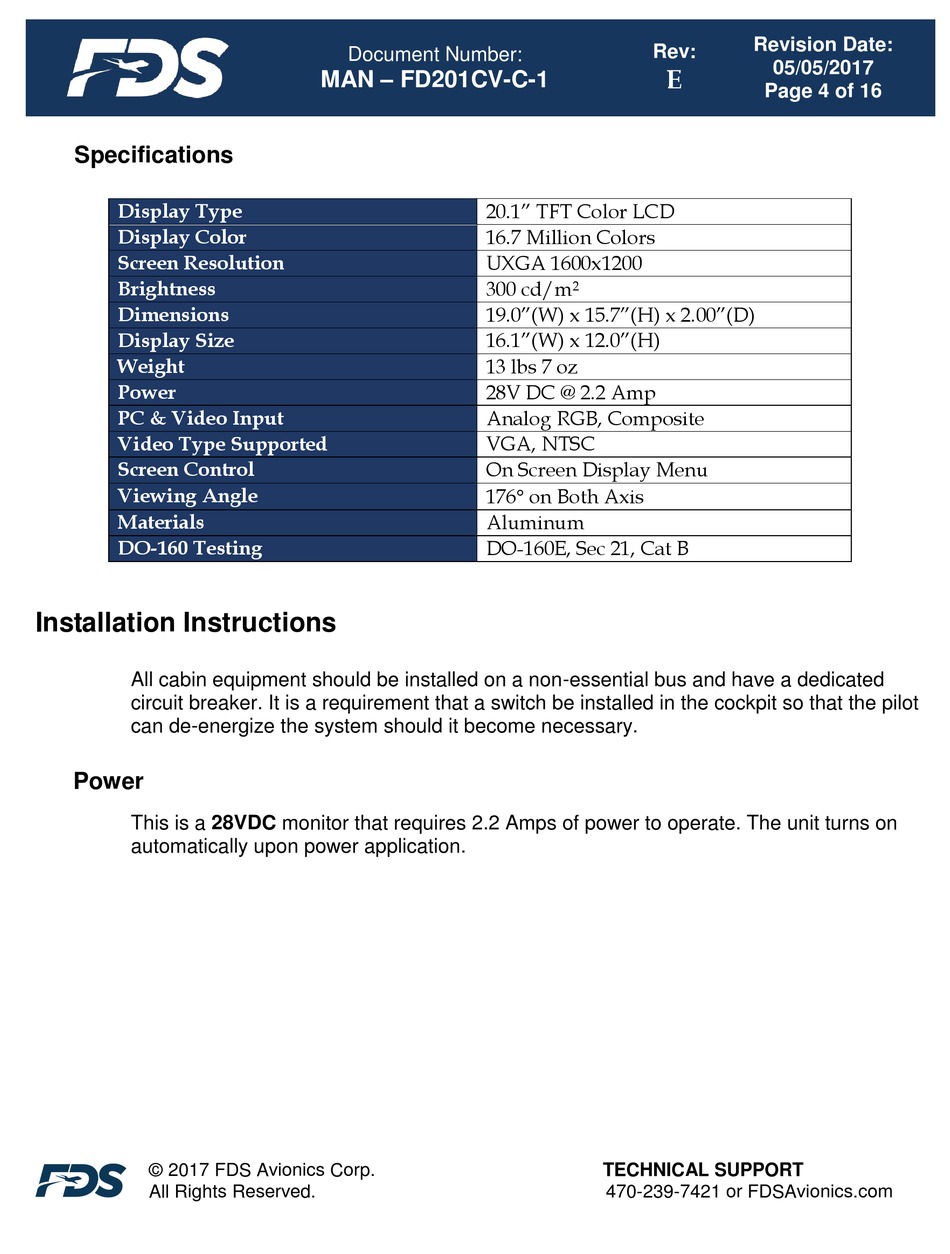

Specifications

Display Type
Display Color
Screen Resolution
Brightness
Dimensions
Display Size
Weight

Power

PC & Video Input
Video Type Supported
Screen Control
Viewing Angle
Materials
DO-160 Testing

Installation Instructions

All cabin equipment should be installed on a non-essential bus and have a dedicated
circuit breaker. It is a requirement that a switch be installed in the cockpit so that the pilot
can de-energize the system should it become necessary.
Power
This is a 28VDC monitor that requires 2.2 Amps of power to operate. The unit turns on
automatically upon power application.
© 2017 FDS Avionics Corp.
All Rights Reserved.
Document Number:
MAN – FD201CV-C-1
20.1" TFT Color LCD
16.7 Million Colors
UXGA 1600x1200
300 cd/m
19.0"(W) x 15.7"(H) x 2.00"(D)
16.1"(W) x 12.0"(H)
13 lbs 7 oz
28V DC @ 2.2 Amp
Analog RGB, Composite
VGA, NTSC
On Screen Display Menu
176 on Both Axis
Aluminum
DO-160E, Sec 21, Cat B
