SP Dual compact Product Overview
key control
Touch control table
Operating Instructions SP Dual compact | B1500016_en

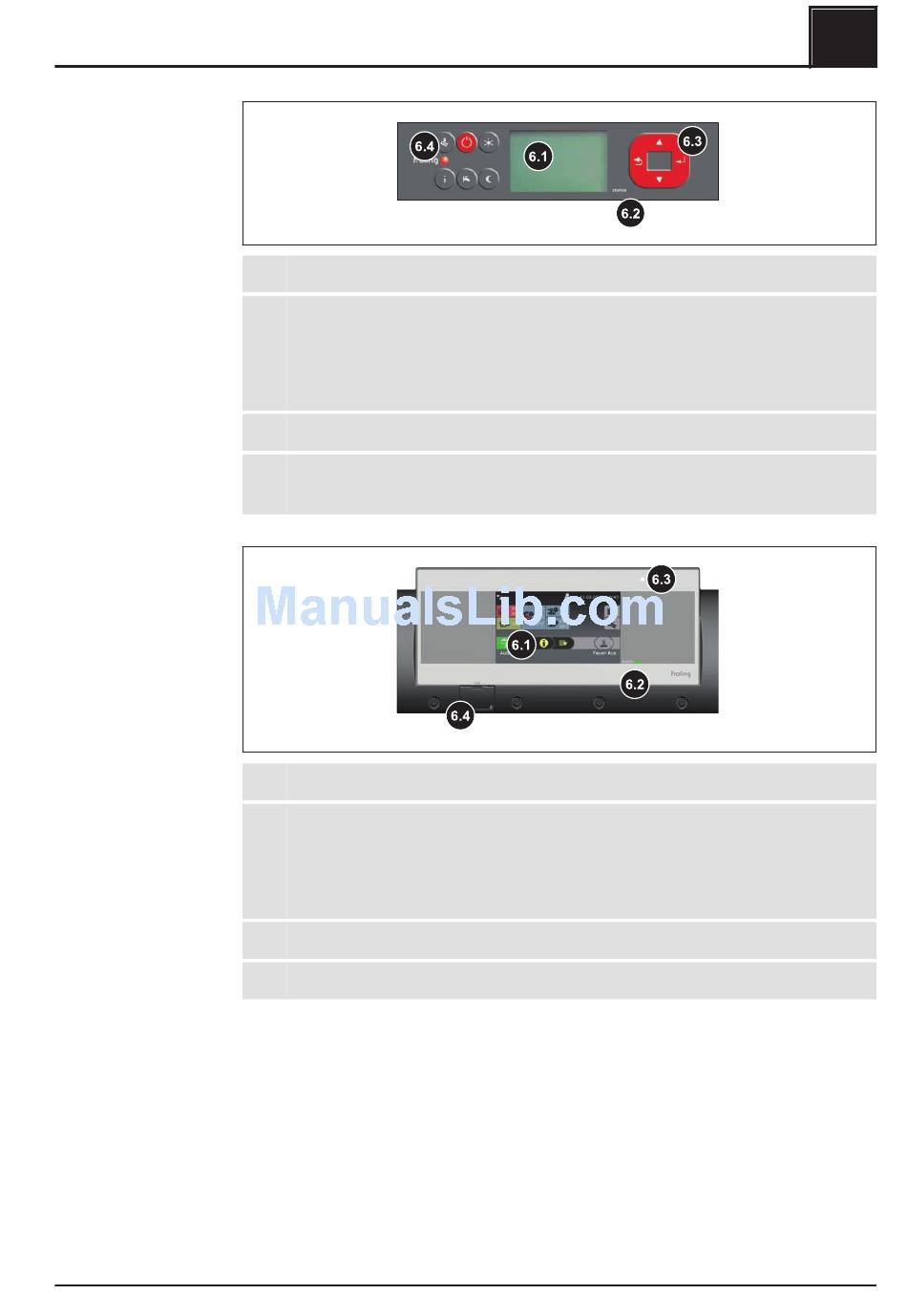

6.1 Visual display showing operating statuses and parameters
6.2 Status LED to display the operating status:
- GREEN constant: AUTOMATIC MODE ACTIVE / ON
- GREEN flashing: AUTOMATIC MODE DEACTIVATED / OFF
- ORANGE flashing: WARNING
- RED flashing: ERROR or ALARM
6.3 Navigation keys to move around in the menus and to change the parameter values
6.4 Function keys to call up individual boiler functions directly
NOTICE! For key layout see controller operating instructions
6.1 Large touchscreen showing operating statuses and parameters
6.2 Status LED to display the operating status:
- GREEN constant: AUTOMATIC MODE ACTIVE / ON
- GREEN flashing: AUTOMATIC MODE DEACTIVATED / OFF
- ORANGE flashing: WARNING
- RED flashing: ERROR or ALARM
6.3 Brightness sensor for automatically adjusting the brightness of the display
6.4 USB port for connecting a USB stick for software updates
