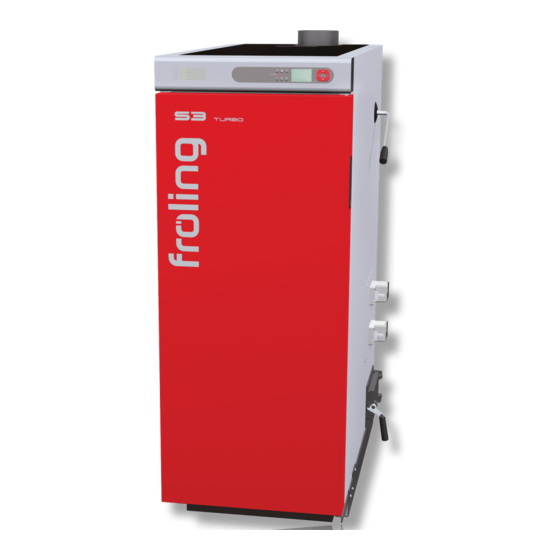

Froling S3 Turbo Manual
Firewood boiler
Hide thumbs
Also See for S3 Turbo:
- Operating instructions manual (31 pages) ,
- Operating instructions manual (45 pages) ,
- Installation instructions manual (67 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Froling S3 Turbo
Summary of Contents for Froling S3 Turbo

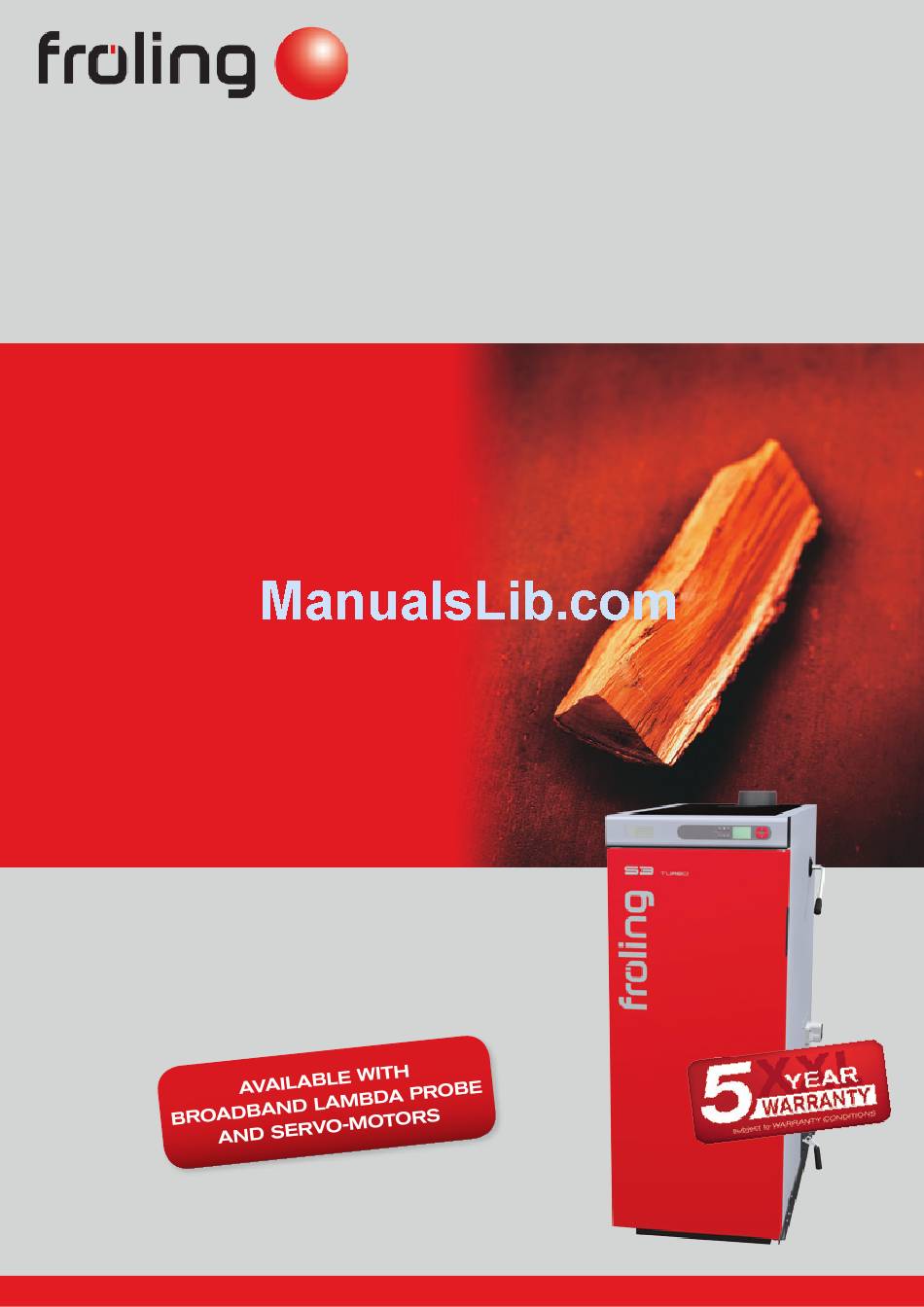

- Page 1 S3 Turbo Firewood boiler S3 Turbo www.froeling.com...
- Page 2 From a renowned company For more than 50 years Froling has specialised in the efficient use of wood as a source of energy. Today the name Froling stands for modern biomass heating technology. Froling firewood, wood chip and pellet boilers are successfully in operation all over Europe.
- Page 3 S3 Turbo The firewood boiler with special benefits: Speed-regulated induced draught fan for maximum ease of use. WOS (efficiency optimisation system) for high efficiency and easy cleaning. Top quality thermal insulation. Manual adjusters (or actuators with Lambdatronic) for primary and secondary air.
- Page 4 S3 Turbo. This means the boiler delivers excellent combustion values. The generous dimensions of the combustion zone guarantee low emissions. So by using a Froling S3 Turbo you are helping to keeping our air clean. Feature: WOS system Advantages: •...
- Page 5 This offers excellent output adjustment with full operating safety. In the S3 Turbo with broadband lambda probe the primary and secondary air settings are adjusted by means of servo-motors, ensuring that output is adapted to given requirements at every stage of combustion.
-
Page 6: Temperature Sensor
RBG 3200/RGB 3200 Touch room console The main modes of the designated heating cir- cuit can be easily adjusted and selected using the Froling FRA room temperature sensor. The adjusting wheel allows you to change the room Feature: Lambdatronic control temperature by up to ±... - Page 7 H2 Hygienic layered tank S3 Turbo with S-Tronic The Lambdatronic controllers allow for efficient energy management. Up to 4 storage tanks, up to 8 hot water tanks and up to 18 heating circuits can be integrated into the heating management system.
-
Page 8: Technical Specifications
1280 1280 1380 1380 H4 Return connection [mm] H5 Safety heat exchanger connection [mm] Flue pipe diameter [mm] Technical specifications - S3 Turbo Nominal output [kW] 22.5 31.0 36.0 45.0 Fuel loading chamber capacity Fuel loading door (width/height) [mm] 330 / 370...
