Boiler servicing

Inspection and cleaning

Operating Instructions SP Dual compact | B1500016_en

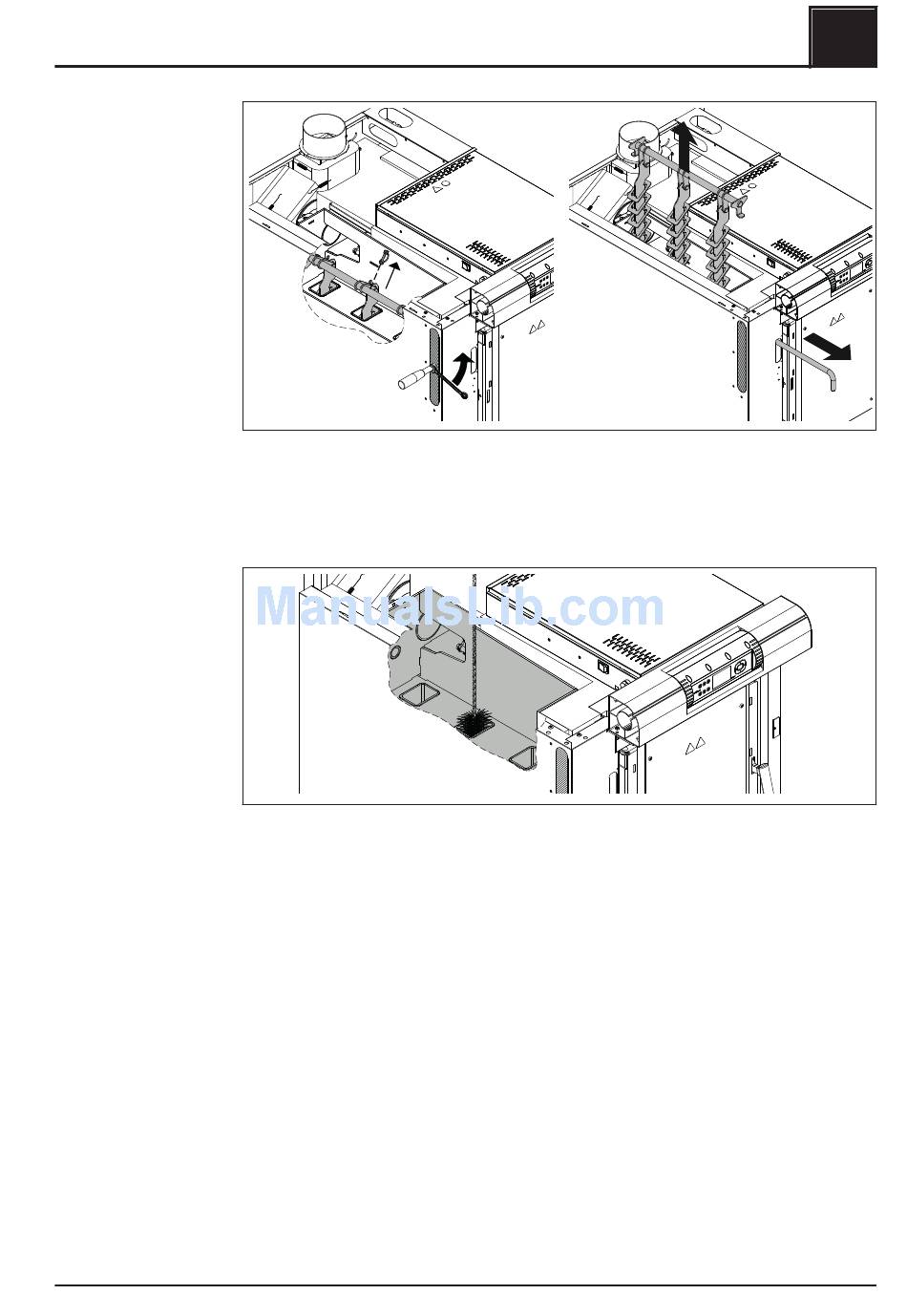

❒ Push the WOS lever down and remove it from the shaft

❒ Remove the pipe locking pin connecting the shaft and the stay tube

❒ Pull the shaft out of the brass bushing

❒ Remove the WOS turbulators together with the stay tube and clean them

❒ Clean the heat exchanger pipes with the brush provided

➥ Push the cleaning brush all the way through before pulling it up

➥ The bristles cannot be turned in the pipe

❒ Clean the side passage to the flue gas pipe

➥ TIP: use an ash vacuum!

❒ After cleaning, reassemble the components as above in the reverse order
