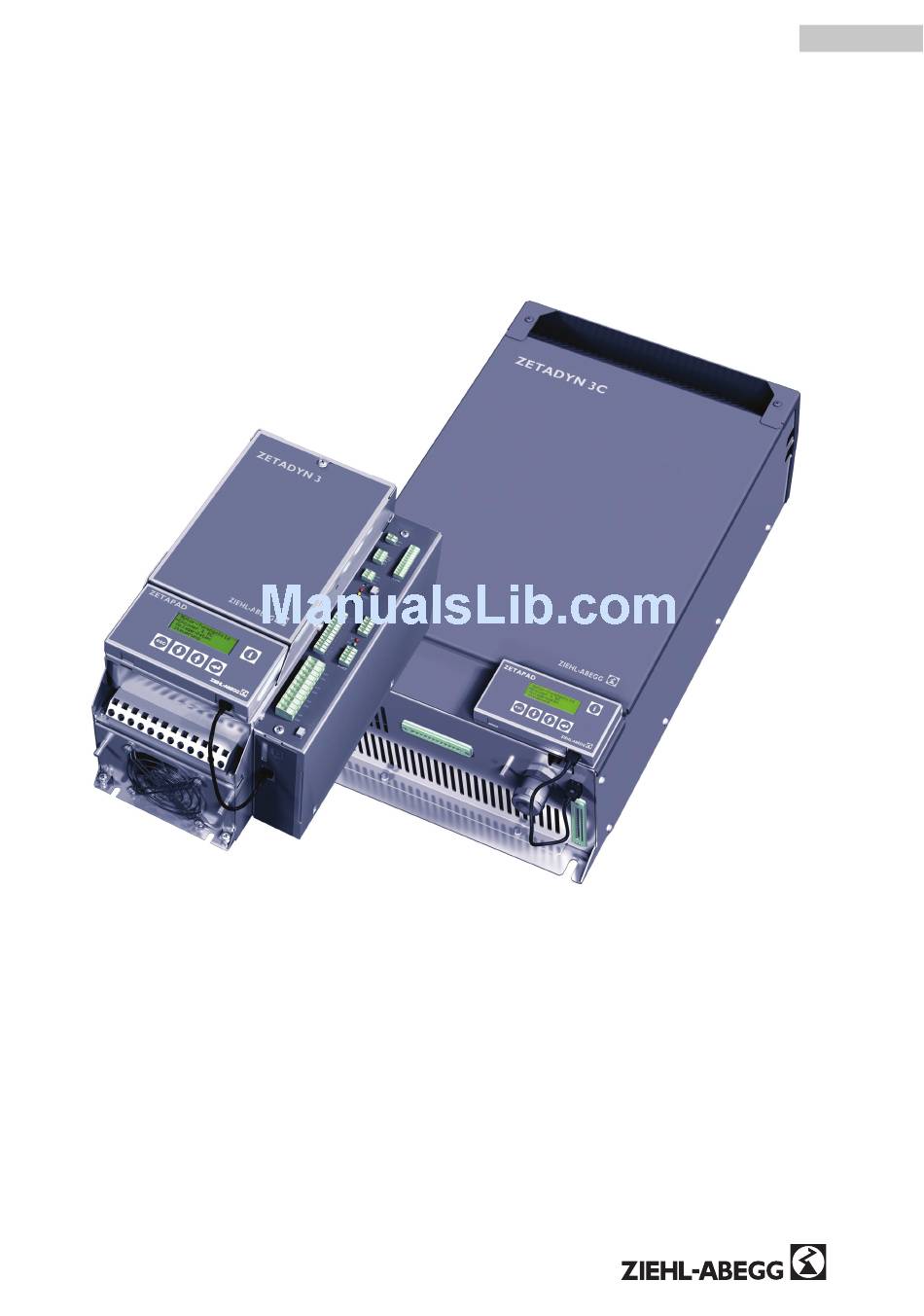

english
ZETADYN 3 Series
Additional information for CANopen Lift
Brief instruction
Additional information for the operating instructions:
ZETADYN 3BF (R-TBA05_08)
ZETADYN 3C (R-TBA08_03)
ZETADYN 3C-MRL (R-TBA09_01)
ZETADYN 3BF009-1 (R-TBA08_02)
R-TBA11_01-GB 1114
Part.-No. 00163371-GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZETADYN 3BF and is the answer not in the manual?

Questions and answers

Related Manuals for ZIEHL-ABEGG ZETADYN 3BF

Summary of Contents for ZIEHL-ABEGG ZETADYN 3BF

  • Page 1 ZETADYN 3 Series Additional information for CANopen Lift Brief instruction Additional information for the operating instructions: ZETADYN 3BF (R-TBA05_08) ZETADYN 3C (R-TBA08_03) ZETADYN 3C-MRL (R-TBA09_01) ZETADYN 3BF009-1 (R-TBA08_02) R-TBA11_01-GB 1114 Part.-No. 00163371-GB...

  • Page 2: Table Of Contents

    Brief instruction ZETADYN 3 Series Content General notes ............. Validity .

  • Page 3: General Notes

    Necessary modications are incorporated into the next version. Ziehl-Abegg AG is not liable for damage due to misuse, incorrect use, improper use or as a consequence of unauthorized repairs or modications.

  • Page 4: Start-Up

    • By implication, there can be one ZETADYN 3 connected to one bus-system. • When two ZETADYN 3 per bus-system are needed, please call Ziehl-Abegg before installing. Bus-cable • A shielded bus-cable is not needed, but the data wires should be twisted.

  • Page 5: Electrical Connection

    Brief instruction ZETADYN 3 Series Start-up Electrical connection Information The connection of the bus cable takes place at the slot X-CAN of the frequency inverter. X-CAN CAN High (H) Optionaler Schirmanschluss CAN Low (L) Connection CAN Activating the interface The activation of the CAN interface can be set in the menu Control system/CONFIG. Control system CONFIG 01:ZA_IO...

  • Page 6: Operation Mode

    Brief instruction ZETADYN 3 Series Start-up Operation mode Information There are two operation modes by using CAN: • Velocity Mode [pv] Velocity Mode • Position Mode [pp] Position Mode R-TBA11_01-GB 1114 Part.-No. 00163371-GB...

  • Page 7: Command- And Statusbits Of The Recorder

    Brief instruction ZETADYN 3 Series Parameter 3.7.1 Command- and Statusbits of the recorder • Position Mode [pp] C&S / Velocity Mode [pv] C&S • C = Command = Command from the control system to the frequency inverter • S = Status = Status of the frequency inverter as reaction of a command from the control system Status- / Commandbit Description Comment...

  • Page 8: Info Menu

    Brief instruction ZETADYN 3 Series Parameter Information The in the ZETADYN 3 adjusted nominal travel speed V* has to be equal or higher than the speed which is sent to the ZETADYN 3 by the control system. Otherwise no drive takes place. Info menu The INFO menu provides an easily accessible overview of: •...

  • Page 9: Network Management Status

    Brief instruction ZETADYN 3 Series Error Network Management Status Status: BootUp: ZETADYN 3 is switching to the bus Stop: ZETADYN 3 was stopped (normally by the control sys- tem) Preop.: ZETADYN 3 can be parametrised, but before the it has to be set to "operational".
  • Page 10 HOTLINE Tel. +49 (0) 7940 16-308 +49 (0) 7940 16-249 email hotline.ra@ziehl-abegg.de Ziehl-Abegg AG Heinz-Ziehl-Straße · D-74653 Künzelsau · Germany Tel. +49 (0) 7940 16-0 · Fax +49 (0) 7940 16-249 drives@ziehl-abegg.de · www.ziehl-abegg.com...
