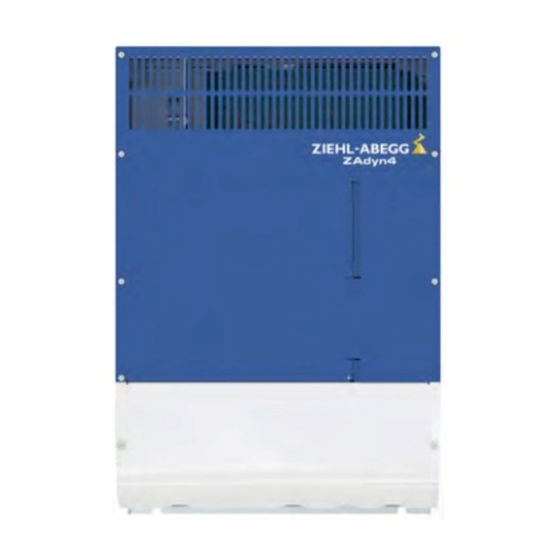

ZIEHL-ABEGG ZAdyn4CA HY Series Quick Start Manual

ZIEHL-ABEGG ZAdyn4CA HY Series Quick Start Manual

Frequency inverter for hydraulic elevators

Advertisement

ZA
dyn
4CA HY
Frequency inverter for hydraulic elevators
Quick Start Guide
Store for future use!
Additional information to the operating
instructions of the ZAdyn4C (R-TBA12_01-GB)
R-TBA16_01-GB 1845 Index 003
Part.-No. 00163456-GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZAdyn4CA HY Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ZIEHL-ABEGG ZAdyn4CA HY Series

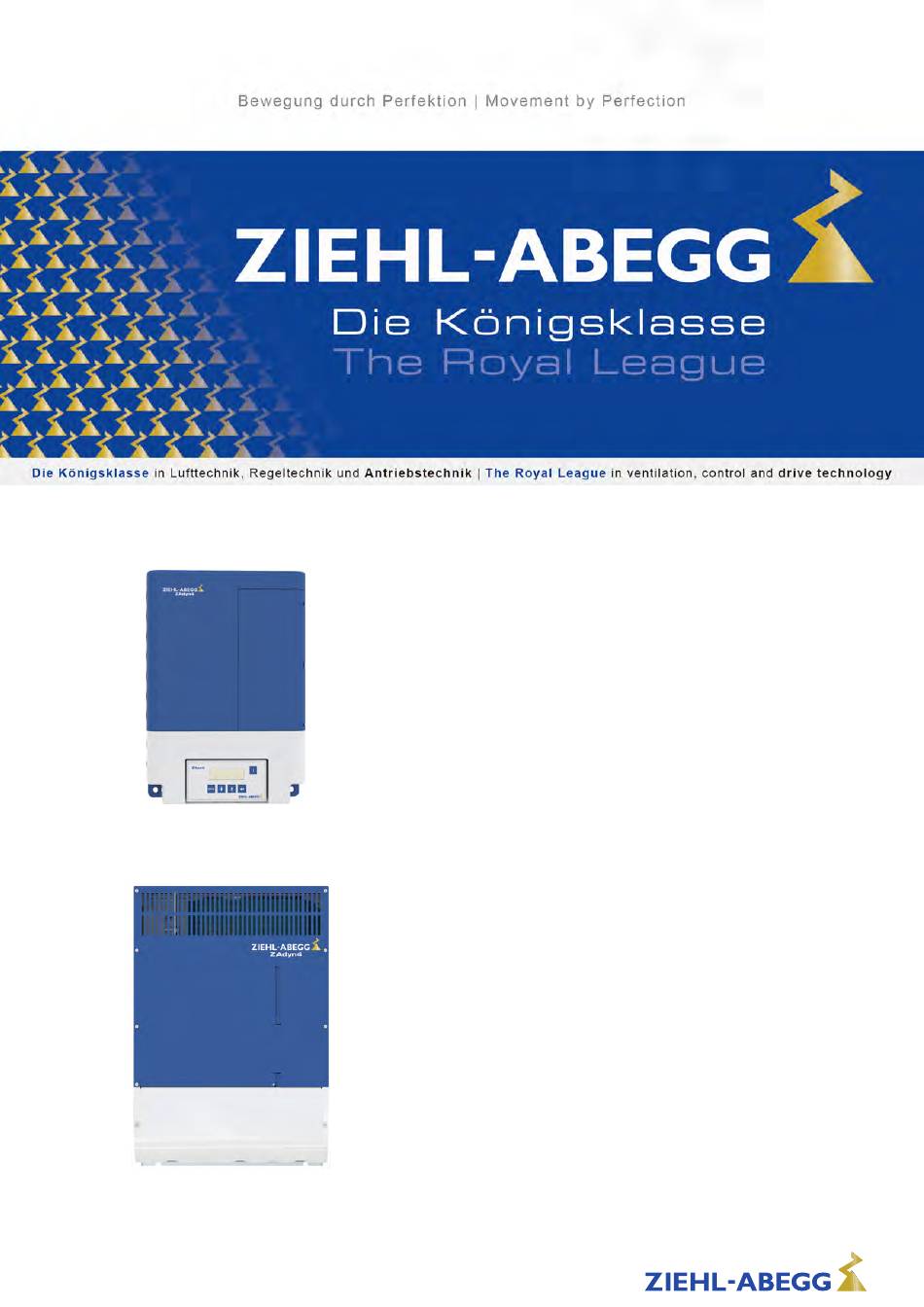

  • Page 1 4CA HY Frequency inverter for hydraulic elevators Quick Start Guide Store for future use! Additional information to the operating instructions of the ZAdyn4C (R-TBA12_01-GB) R-TBA16_01-GB 1845 Index 003 Part.-No. 00163456-GB...
  • Page 2: Table Of Contents

    Quick Start Guide ZAdyn4CA HY Content General notes ............. Validity .
  • Page 3 Quick Start Guide ZAdyn4CA HY Index ............. . R-TBA16_01-GB 1845 Index 003 Part.-No.
  • Page 4: General Notes

    Necessary modifications are incorporated into the next version. ZIEHL-ABEGG SE is not liable for damage due to misuse, incorrect use, improper use or as a consequence of unauthorized repairs or modifications.
  • Page 5: Minimum Floor Distances

    Quick Start Guide ZAdyn4CA HY Product overview Minimum floor distances The cabin must reach the nominal speed at all travels. Triangular speed profile travels are not possible. Therefore, the following minimum floor distances must be kept with: Speed [m/s] min. floor distance [m] 0.94 1.26 1.73...
  • Page 6: Mechanical Installation

    On the valve block, all adjusting screws which engage upwards in the acceleration curve must be set to maximum acceleration. Set times which help start-up delay to the minimum. In the following chapters there is a description of the settings to be made in the case of valve blocks tested by ZIEHL-ABEGG. 4.2.1 Bucher LRV-1: Bucher LRV-1 No modicications on the valve block are necessary.
  • Page 7: Blain Ev 100

    Quick Start Guide ZAdyn4CA HY Mechanical installation 4.2.2 Blain EV 100: Valve block EV100 Blain, version 1 Valve block EV100 Blain, version 2 a Valve 3 b Valve 2 a Valve 3 c Valve 5 b Valve 2 d Valve 1 c Valve 5 e Valve 4 d Valve 1...
  • Page 8: Algi Azstb

    Quick Start Guide ZAdyn4CA HY Mechanical installation 4.2.3 Algi AZSTB Algi AZSTB 1 Upward pressure or circulating pressure valve A Screw in the upward pressure or circulating pressure valve A until it is flush with the lock nut. R-TBA16_01-GB 1845 Index 003 Part.-No.
  • Page 9: Electrical Installation

    Quick Start Guide ZAdyn4CA HY Electrical installation 5 Electrical installation You must comply with the safety instructions described in the chapter Electrical Installation of the operating instructions R-TBA12_01! Mains connection (X1) Danger! Before connecting to the mains, check whether the technical data on the rating plate of the ZAdyn4CA HY correspond to the required connection values.
  • Page 10: Connection

    Quick Start Guide ZAdyn4CA HY Electrical installation 5.1.5 Connection The mains connection is designed with spring contact terminals. To avoid damage to the connection terminals and to ensure a safe contact, a suitable screwdriver must be inserted into the terminals as far as it will go to fully open them when connecting cables.
  • Page 11: Pump Drive Wiring

    Quick Start Guide ZAdyn4CA HY Electrical installation 5.2.5 Pump drive wiring The pump drive must be connected to its motor terminal board in the delta (see wiring diagram). Delta connection After entering the motor parameters (see the chapter "Parameterisation of the ZAdyn4CA HY"), the turning direction of the pump must be checked.
  • Page 12: Sto Interface (X-Sto)

    Quick Start Guide ZAdyn4CA HY Electrical installation Information If you do not use the temperature monitoring, you must switch off the temperature monitoring (Monitoring/P1P2=Off). Short-circuiting of the inputs P1 and P2 is detected as an error by the ZAdyn4CA HY. STO interface (X-STO) For the use of the "Safe switch-off (STO)"...
  • Page 13: Circuit Suggestion, Zadyn4Ca Hy

    Quick Start Guide ZAdyn4CA HY Electrical installation Circuit suggestion, ZAdyn4CA HY ZD4C01K9 R-TBA16_01-GB 1845 Index 003 Part.-No. 00163456-GB 13/28...
  • Page 14: Start-Up

    Quick Start Guide ZAdyn4CA HY Start-up 6 Start-up Prerequisites for commissioning The safety instructions described in chapter 8 of the operating instructions R-TBA12_01 have to be followed! Information This start-up assumes that the factory default setting on the monitoring contacts has not been changed! Requirements for error-free commissioning: •...
  • Page 15: Tuning Function

    Quick Start Guide ZAdyn4CA HY Start-up Startup Select parameter "P" - " - " Enter the motor's rated power Nominal Power Start-up cos phi 0.75 - " Select parameter "cos phi" 0.75 - " Enter power factor of the motor Power factor Startup star...
  • Page 16 Quick Start Guide ZAdyn4CA HY Start-up In the case of 2 or 3 stops: In the case of 4 or more stops: Give a travel command one floor higher. Give a travel command two floors higher. " " ✓ Cabin accelerates and comes to a standstill. It does not reach the specified floor. It is possible that the elevator control system automatically starts a further subsequent travel.
  • Page 17: Optimization Of Parameter Values To Improve Travel Characteristics

    Quick Start Guide ZAdyn4CA HY Start-up Dot in the info menu/page 03 Leave the info menu with the key. " Set the parameter Start-up/HY_Auto to "Off". " Overcurrent messages may appear in some cases during tuning journeys. The corresponding journey is then interrupted by the ZAdyn4CA HY.
  • Page 18: Parameter List

    Quick Start Guide ZAdyn4CA HY Parameter list 7 Parameter list The parameter list is in the chapter "Parameter list" in the operating instructions R-TBA12_01. Parameters only used in the case of the ZAdyn4CA HY: Control system menu Factory set- Parameter Designation Value range ting...
  • Page 19: Error Diagnosis

    Quick Start Guide ZAdyn4CA HY Error diagnosis 8 Error diagnosis For fault diagnosis and rectification, see the chapter "Fault diagnosis" in the operating instructions R- TBA12_01. The faults occurring and also rectification options are discussed here. Faults which can only occur in the case of the ZAdyn4CA HY: Error 5xx Error no.
  • Page 20: Enclosure

    Quick Start Guide ZAdyn4CA HY Enclosure 9 Enclosure Technical data 9.1.1 ZAdyn4CA 018-040 HY ZAdyn 4CA 018 HY 4CA 025 HY 4CA 032 HY 4CA 040 HY Electrical data Mains connection voltage 3~ 180 ... 440 absolut Mains frequency [Hz] 50 / 60 (±1,5 Hz) Typ.
  • Page 21: Zadyn4Ca 050-105 Hy

    Quick Start Guide ZAdyn4CA HY Enclosure 9.1.2 ZAdyn4CA 050-105 HY ZAdyn 4CA 050 4CA 063 HY 4CA 080 HY 4CA 105 HY Electrical data Mains connection voltage 3~ 180 ... 440 absolut Mains frequency [Hz] 50 / 60 (±1,5 Hz) Typ.
  • Page 22: Type Designation

    Quick Start Guide ZAdyn4CA HY Enclosure Type designation 0xx - HY ZAdyn Series 4th generation Structure Complete unit for asynchronous motors including power choke, filter, for operation without contactors Complete unit for synchronous motors including power choke, filter, integrated short-circuit, for operation without contactors Rated current 11 A...
  • Page 23: Part No

    Quick Start Guide ZAdyn4CA HY Enclosure Part no. Type Part no. ZAdyn4CA 018 HY 352240 ZAdyn4CA 025 HY 352241 ZAdyn4CA 032 HY 352242 ZAdyn4CA 040 HY 352243 ZAdyn4CA 050 HY 352244 ZAdyn4CA 063 HY 352245 ZAdyn4CA 080 HY 352246 ZAdyn4CA 105 HY 352247 R-TBA16_01-GB 1845 Index 003 Part.-No.
  • Page 24: Information

    Quick Start Guide ZAdyn4CA HY Index Index Application Circuit suggestion, ZAdyn4CA HY Electrical Installation Exclusion of liability fault diagnosis informations, Mains connection Mechanical Installation Motor connection Motor temperature monitoring start-up Technical data 2, 20 R-TBA16_01-GB 1845 Index 003 Part.-No. 00163456-GB 24/28...
  • Page 25 Quick Start Guide ZAdyn4CA HY Index R-TBA16_01-GB 1845 Index 003 Part.-No. 00163456-GB 25/28...
  • Page 26 Quick Start Guide ZAdyn4CA HY Index R-TBA16_01-GB 1845 Index 003 Part.-No. 00163456-GB 26/28...
  • Page 27 Quick Start Guide ZAdyn4CA HY Index R-TBA16_01-GB 1845 Index 003 Part.-No. 00163456-GB 27/28...
  • Page 28 Customer Service phone +49 7940 16-308 +49 7940 16-249 drives-service@ziehl-abegg.com Headquarters ZIEHL-ABEGG SE Heinz-Ziehl-Strasse · D-74653 Kuenzelsau Germany phone +49 (0) 7940 16-0 · fax +49 (0) 7940 16-249 drives@ziehl-abegg.de www.ziehl-abegg.com...
