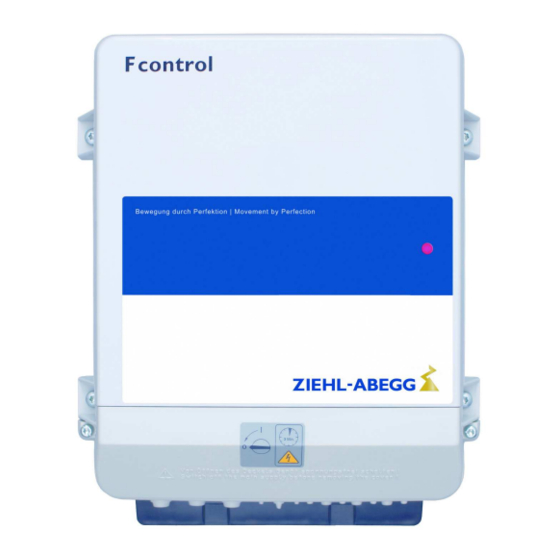

- Page 1 english Fcontrol Basic FSDM2.5..50M Frequency inverter with integrated sine filter for 3 ~ fans Operating Instructions Speed controller with 0...10 V input for presetting the fan speed Keep for reference! L-BAL-E162-GB 2022/02 Index 008 Part.-No.
-
Page 2: Table Of Contents
Operating Instructions Fcontrol Basic – model series FSDM2.5..50M Content General notes ............. Meaning of the operating instructions . - Page 3 Operating Instructions Fcontrol Basic – model series FSDM2.5..50M Analog input “E1” for setting fan speed ........Output voltage “10 V”...
-
Page 4: General Notes
We do not accept any liability for possible errors or omissions in the information contained in data, illustrations or drawings provided. ZIEHL-ABEGG SE is not liable for damage due to misuse, incorrect use, improper use or as a consequence of unauthorized repairs or modifications. -
Page 5: Explanations Of Symbols
Operating Instructions Fcontrol Basic – model series FSDM2.5..50M Safety instructions Explanations of symbols Safety instructions are highlighted with warning triangles and are depicted according to the degree of hazard as follows. Attention! General hazardous area. Death or severe injury or significant property damage can occur if the corresponding precautions are not taken! Danger due to electric current Danger by dangerous, electric voltage! Death or severe injury can occur if the corresponding... -
Page 6: Work On The Device
Use only genuine spare parts / genuine wearing parts / genuine accessories from ZIEHL-ABEGG.Th- ese parts were specifically designed for the device. There is no guarantee that parts from non-original sources are designed and manufactured in correspondence with load and safety requirements. -
Page 7: Employment Of External Personnel
The name plate carries the technical data valid for the delivered product. Example for rating plate Designation Designation Series Part no. ZIEHL-ABEGG brand name Series number Type of voltage Production code Mains voltage DATA MATRIX code serial number Mains frequency... -
Page 8: Transport
Operating Instructions Fcontrol Basic – model series FSDM2.5..50M Mounting Transport • The device is packed ex factory to suit the transport method previously agreed. • The device may only be transported in the original packaging. • Avoid shocks and impacts to the device during the transport. •... -
Page 9: Minimum Space Requirement
Operating Instructions Fcontrol Basic – model series FSDM2.5..50M Mounting Minimum space requirement In order to ensure sufficient ventilation of the device, clearance on all sides of at least 50 mm has to be maintained to the housing walls, switch cabinet doors, wiring ducts, etc. The same clearance applies to the installation of several devices next to each other. - Page 10 Operating Instructions Fcontrol Basic – model series FSDM2.5..50M Mounting Type FSDM5...16M (FSDM22M) Fastening at 4 points GM00005A_M 15.12.2015 Drill fastening points “1” - “4”. " " Fasten device with screws. Type FSDM32...50M Fastening at 8 points GM00002A_M 15.12.2015 " Drill 8 fastening points. Screw in fastening point screws “1”...
-
Page 11: Cable Inlet
Operating Instructions Fcontrol Basic – model series FSDM2.5..50M Mounting Cable inlet Proceed as follows: Remove the terminal compartment cover. " Depending on the housing model cut off necessary cable inlets respectively to the cable diameter. " Or alternative use cable inlet for cable glands. Metal sheet housings are supplied with stoppers. Any cable ducts openings not used must be sealed! Strip and insert the cables properly. -
Page 12: Outdoor Installation
Operating Instructions Fcontrol Basic – model series FSDM2.5..50M Electrical installation Outdoor installation Outdoor installation is possible up to -20 °C when the controller supply is not switched off. Installation must be protected from the effects of weather as much as possible, including protection from direct sunlight! Installation location for agriculture When using for animal keeping, do not install the device directly in the stable but in a separate room... -
Page 13: Terminal Compartment
Operating Instructions Fcontrol Basic – model series FSDM2.5..50M Electrical installation Terminal compartment Example: Position of terminals for devices with aluminum base plate 1 Line 2 motor 3 Indication relays 4 Brake control 5 Jumper J1 for thermal protector TB/TP 6 Jumper E1.1/E1.2 for speed setting signal Maximum cross sections of terminals for power section Line motor... -
Page 14: Emc-Compatible Installation
Operating Instructions Fcontrol Basic – model series FSDM2.5..50M Electrical installation EMC-compatible installation 5.3.1 Motor cable The applicable standard for interference emissions is EN IEC 61000-6-3. Compliance with this stand- ard is achieved through the use of an unscreened motor feed cable. 5.3.2 Control cables Pay attention to sufficient distance from powerlines and motor wires to prevent interferences. -
Page 15: Line Protection Fuse
Operating Instructions Fcontrol Basic – model series FSDM2.5..50M Electrical installation 5.4.3 Line protection fuse The connection must be fused depending on the used cable, the type of routing, the operating conditions and according to the standards applicable on site. The specification for the maximum admissible line fuse of the device must be observed (see technical data). -
Page 16: U/F-Characteristic Curve
Operating Instructions Fcontrol Basic – model series FSDM2.5..50M Electrical installation 5.6.3 U/f-characteristic curve Diagram setting signal and U/f curve (quadratic) = 50 Hz 100 % = 48.5 Hz edge = 0 % [Hz] start Analog In 1 0...10 V 0...20 mA 90 100 0...100 % PWM 01.02.2013 v_u_f_fcon_basic_setsig.vsd... -
Page 17: Analog Input "E1" For Setting Fan Speed
Operating Instructions Fcontrol Basic – model series FSDM2.5..50M Electrical installation Analog input “E1” for setting fan speed The device has an analog input for setting the fan speed, connection to “E1”-“GND” (Analog In 1). The factory setting for the input is configured for a 0...10 V speed setting signal. For a 0...20 mA signal or a PWM signal an adaption with internal jumpers is required. -
Page 18: Output Voltage "10 V
Operating Instructions Fcontrol Basic – model series FSDM2.5..50M Electrical installation Options for speed setting for types FSDM22...50 0...10 V (factory setting) Control via external setting signal 0...10 V Speed setting by external potenziometer (10 kΩ) at terminals “+10 V” and “GND” pick of-off at terminal “E1”. D1 GND D1 GND 10V E1.1... -
Page 19: Voltage Supply For External Devices (+24V, Gnd)
Operating Instructions Fcontrol Basic – model series FSDM2.5..50M Electrical installation 5.10 Voltage supply for external devices (+24V, GND) A voltage supply is integrated for external devices e.g. a sensor (max. current load see technical data). In case of overload or short circuit (24 V – GND), the external power supply is shut down (multi-fuse). The device performs a “Reset”... -
Page 20: Manual Bypass-Switch Type S-D-25 And S
Operating Instructions Fcontrol Basic – model series FSDM2.5..50M Electrical installation Connection suggestion for Bypass with necessary time delay Inverter / Bypass Inverter / Bypass Frequency Inverter Frequency Inverter Inverter Inverter Bypass Bypass EMPO26K3 Motor 3~ Motor 3~ 10.11.2022 * For the digital input, programming for the "Enable" function is required 5.14 Manual Bypass-Switch type S-D-25 and S-D-50 As accessories are manual main switches with bypass function available. -
Page 21: Potential At Control Voltage Connections
An additional module can be retrofitted in the slot provided if required (mounting operating instructions of the additional modules). The range of additional modules is constantly being extended and adapted to market requirements. The currently available additional modules can be requested from ZIEHL-ABEGG. Examples for currently available additional modules Type Part-No. -
Page 22: Commissioning
Operating Instructions Fcontrol Basic – model series FSDM2.5..50M Commissioning 6 Commissioning Prerequisites for commissioning Attention! 1. You must mount and connect the device in accordance with the operating instructions. 2. Double check that all connections are correct. 3. The mains voltage must match the information on the rating plate. 4. - Page 23 Operating Instructions Fcontrol Basic – model series FSDM2.5..50M Diagnostics / Faults Reaction of device Relay Code Explanation Remedial measures Failure of a phase Following a shutoff, a startup attempt is made after approximately 5 seconds, if The device is provided with a built-in the voltage supply is high enough.
-
Page 24: Enclosure
Operating Instructions Fcontrol Basic – model series FSDM2.5..50M Enclosure Reaction of device Relay Code Explanation Remedial measures Error peak current After a switch off the controller waits for 30 seconds then the controller attempt a If the output current increases above the start. - Page 25 Operating Instructions Fcontrol Basic – model series FSDM2.5..50M Enclosure FSDM40M 34.0 40.0 29.4 (308318) (31.5) FSDM50M 47.5 50.0 32.6 (308320) (43.2) {1} Rated current output current indication rating plate @ rated voltage, @ rated temperature (cos φ 0.8 at the output). {2} At rated voltage (cos φ...
-
Page 26: Max. Load Dependent On Ambient Temperature And Line Voltage
Operating Instructions Fcontrol Basic – model series FSDM2.5..50M Enclosure Broadband noise (simulated life-endurance test) in accordance with Vibratory strength EN 61373, category 1 class B. (for vertical installation, i.e. cable Shock test according to EN 61373, category 1 inlet down). IP54 Housing protection * Regarding the mains connection, these devices are to be classified as category “C2”... -
Page 27: Connection Diagram
Operating Instructions Fcontrol Basic – model series FSDM2.5..50M Enclosure Connection diagram Fcontrol Basic FSDM...(A)M FSDM2,5...16 FSDM22...50 Temperaturfühler 0...20 mA TP = Thermistors Thermostatschalter TB = Thermostats 0...20 mA 15...28 V PWM 0...10 V 0...10 V/ Kontaktbelastung (10 V PWM) Contact rating max. -
Page 28: Dimensions [Mm]
Operating Instructions Fcontrol Basic – model series FSDM2.5..50M Enclosure Dimensions [mm] FSDM2.5M FSDM5/8/10/16M (FSDM22M) L-BAL-E162-GB 2022/02 Index 008 Part.-No. 28/30... - Page 29 Operating Instructions Fcontrol Basic – model series FSDM2.5..50M Enclosure FSDM32/40/50M L-BAL-E162-GB 2022/02 Index 008 Part.-No. 29/30...
-
Page 30: Manufacturer Reference
Manufacturer reference Our products are manufactured in accordance with the relevant international regulations. If you have any questions concerning the use of our products or plan special uses, please contact: ZIEHL-ABEGG SE Heinz-Ziehl-Straße 74653 Künzelsau phone: +49 (0) 7940 16-0 info@ziehl-abegg.de...
