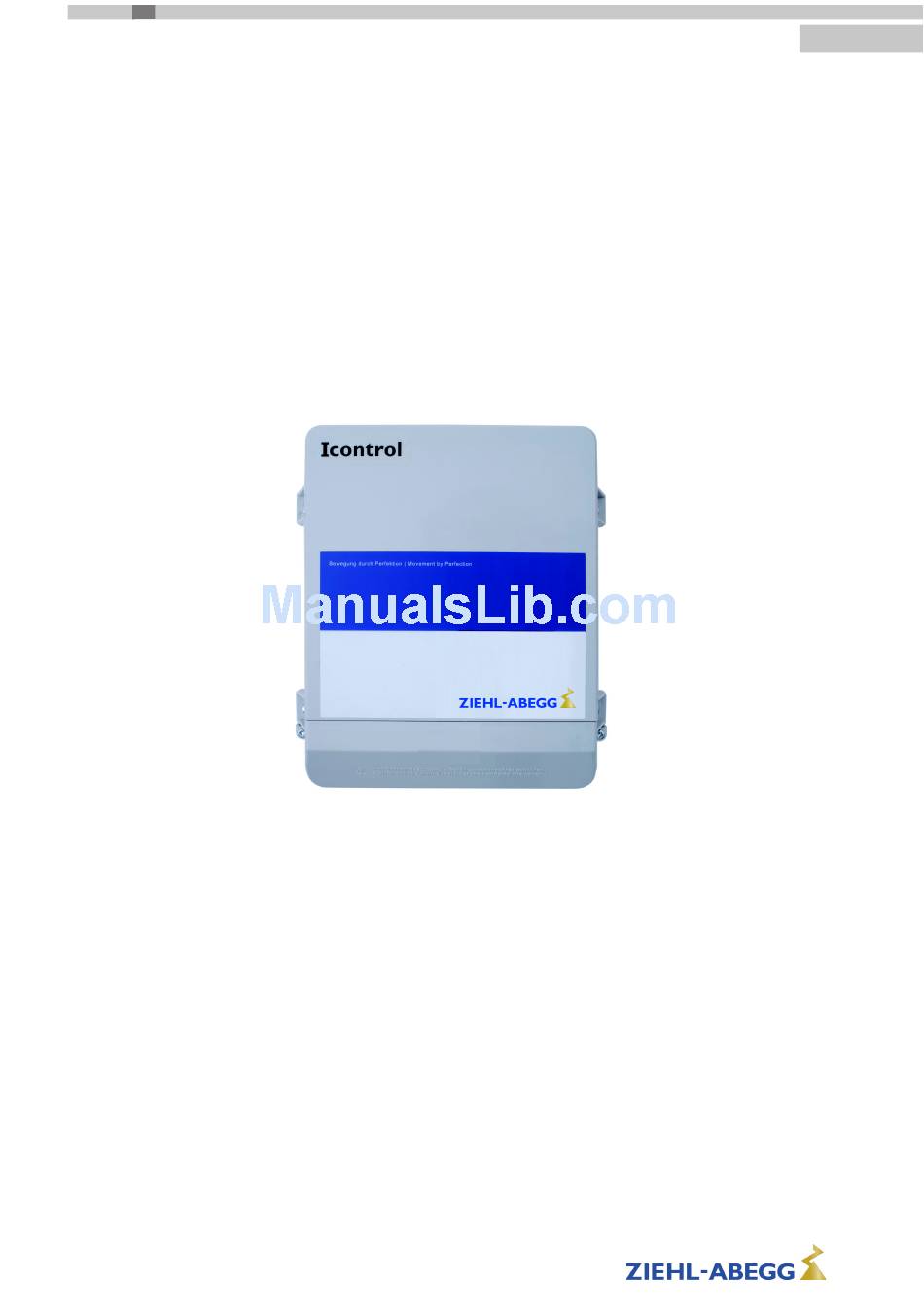

  • Page 1 ☞ www.ziehl­abegg.com english Icontrol Basic FSDM2.6...62 Frequency inverter for 3 ~ fans Speed controller with 0...10 V input for presetting the fan speed Operating Instructions Keep for reference! Software version: D2732A from Version 1.03 L-BAL-E160-GB 1701 Index 004 Part.-No.
  • Page 2: Table Of Contents

    Operating Instructions Icontrol Basic – model series FSDM2.6...62 Content General notes ............. Structure of the operating instructions .
  • Page 3 Operating Instructions Icontrol Basic – model series FSDM2.6...62 5.10 Digital input “D1” for enable (device ON / OFF) ......5.11 Relay outputs “K1”...
  • Page 4: General Notes

    We do not accept any liability for possible errors or omissions in the information contained in data, illustrations or drawings provided. ZIEHL-ABEGG SE is not liable for damage due to misuse, incorrect use, improper use or as a consequence of unauthorized repairs or modifications.
  • Page 5: Product Safety

    Operating Instructions Icontrol Basic – model series FSDM2.6...62 Safety instructions Danger due to electric current Danger by dangerous, electric voltage! Death or severe injury can occur if the corresponding precautions are not taken! Information Important additional information and advice for user. Product safety The device conforms to the state of the art at the time of delivery and is fundamentally considered to be reliable.
  • Page 6: Modifications / Interventions In The Device

    Use only genuine spare parts / genuine wearing parts / genuine accessories from ZIEHL-ABEGG.Th- ese parts were specifically designed for the device. There is no guarantee that parts from non-original sources are designed and manufactured in correspondence with load and safety requirements.
  • Page 7: Product Overview

    Only suitable for drives with low set-off torque (e.g.: fans or pumps). We expressly point out that controlling ZIEHL-ABEGG fans in parallel operation is not possible in this series without endangering the motors.
  • Page 8: Mounting

    Operating Instructions Icontrol Basic – model series FSDM2.6...62 Mounting 4 Mounting General notes Attention! The following points must be complied with during the mechanical installation to avoid causing a defect in the device due to assembly errors or environmental influences: •...
  • Page 9: Fastening The Device

    Operating Instructions Icontrol Basic – model series FSDM2.6...62 Mounting Fastening the device The type of fastening and the number of fastening points are dependent on the housing design. All the fastening points available must be used for safe fastening. Proceed as follows: Type FSDM2.6, FSDM3.6 Fastening at 3 points GM00006C_M...
  • Page 10 Operating Instructions Icontrol Basic – model series FSDM2.6...62 Mounting Type FSDM5...17 (FSDM25) Fastening at 4 points GM00005C_M 28.01.2016 Drill fastening points “1” - “4”. " Fasten device with screws. " Type FSDM32...62 Fastening at 8 points GM00002B_M 28.01.2016 " Drill 8 fastening points. Screw in fastening point screws “1”...
  • Page 11: Outdoor Installation

    Operating Instructions Icontrol Basic – model series FSDM2.6...62 Electrical installation Outdoor installation Outdoor installation is possible up to -20 °C when the controller supply is not switched off. Installation must be protected from the effects of weather as much as possible, including protection from direct sunlight! Installation location for agriculture When using for animal keeping, do not install the device directly in the stable but in a separate room...
  • Page 12: Motor Cable

    Operating Instructions Icontrol Basic – model series FSDM2.6...62 Electrical installation 5.2.2 Motor cable The screening of the motor cables (U1, V1, W1, PE) must be two-fold (both ends), i.e. connected to the protective conductor at the controller and at the motor. The use of a screened motor cable of max.
  • Page 13: Leakage Current, Securely Attached, Protective Earth Conductor

    Operating Instructions Icontrol Basic – model series FSDM2.6...62 Electrical installation 5.3.3 Leakage current, securely attached, protective earth conductor Danger due to electric current The maximum leakage current depends on the type of device and the connected mains voltage ( Technical Data). With regard to fixed connection and the type of PE conductor connection, the specification for the leakage current must be observed under consideration of the locally valid standards (for Europe EN 50178 Section 5.2.11 or 5.3.2.1 etc.).
  • Page 14: U/F-Characteristic Curve

    Operating Instructions Icontrol Basic – model series FSDM2.6...62 Electrical installation 5.5.3 U/f-characteristic curve Diagram setting signal and U/f curve (linear) edge 100 % = 0 % [Hz] start Analog In 1 0...10 V 0...20 mA 90 100 0...100 % PWM 25.01.2013 v_u_f_dia_icontr_0_10v_fix.vsd Analog In: Speed setting signal (0 - 10 V, 0...20 mA, 0...100 % PWM)
  • Page 15: Analog Input "E1" For Setting Fan Speed

    Operating Instructions Icontrol Basic – model series FSDM2.6...62 Electrical installation Analog input “E1” for setting fan speed The device has an analog input for setting the fan speed. Connection “E1” / “GND” (Analog In 1). The internal jumpers “E1.1” and “E1.2” are factory set in the position for a 0...10 V speed setting signal.
  • Page 16: Output Voltage "10 V

    Operating Instructions Icontrol Basic – model series FSDM2.6...62 Electrical installation 0...100 % PWM Control via external setting signal PWM D1 GND 10V D1 GND 10V 24V (10 V) E1,1 E1,2 E1,1 E1,2 10 k f = 1...10 kHz 31.01.12 i_jumper_if_basic_pwm.eps 15...28 V Danger due to electric current •...
  • Page 17: Digital Input "D1" For Enable (Device On / Off)

    Operating Instructions Icontrol Basic – model series FSDM2.6...62 Electrical installation 5.10 Digital input “D1” for enable (device ON / OFF) Electronic disconnection and Reset after motor fault via floating contact at terminals “D1”- “24V (input resistance and voltage range Technical data)”. Function factory setting for “D1”: •...
  • Page 18: Potential At Control Voltage Connections

    An additional module can be retrofitted in the slot provided if required (mounting operating instructions of the additional modules). The range of additional modules is constantly being extended and adapted to market requirements. The currently available additional modules can be requested from ZIEHL-ABEGG. Examples for currently available additional modules Type Part-No.
  • Page 19: Diagnostics / Faults

    Operating Instructions Icontrol Basic – model series FSDM2.6...62 Diagnostics / Faults 7 Diagnostics / Faults Operating conditions are indicated by the status LED with flashing code. 10 x 11 x 12 x 13 x 14 x 15 x 16 x 17 x 10.01.2014 v_flash_explain_1_17.vsd...
  • Page 20 Operating Instructions Icontrol Basic – model series FSDM2.6...62 Diagnostics / Faults Reaction of device Relay Code Explanation Adjustment ZK undervoltage The modulation is switched off immedi- Intermediate circuit voltage below a fixed ately at undervoltage, error message after 75 s. limit for longer than 75 s.
  • Page 21 Operating Instructions Icontrol Basic – model series FSDM2.6...62 Diagnostics / Faults Reaction of device Relay Code Explanation Adjustment Overload fault The error is set after detecting 4 times t-process; maximum overload applied The controller was switched off by the for 60 s). current limitation.
  • Page 22: Enclosure

    Operating Instructions Icontrol Basic – model series FSDM2.6...62 Enclosure 8 Enclosure Technical data Rated cur- Rated cur- Recommen- Rated tem- max. line max. heat Weight rent rent ded motor perature fuse dissipation output Output (I fundamen- [kg] tal compo- [°C] Type nent @ [kW]...
  • Page 23 Operating Instructions Icontrol Basic – model series FSDM2.6...62 Enclosure Input resistance for speed setting for 0...10 V input: R > 100 kΩ = 100 Ω signal for 0...20 mA input: R +24 V ± 20 %, I Voltage supply for external devices 70 mA Heat dissipation in standby opera- approx.
  • Page 24: Maximum Loading Dependent On Switching Frequency, Line Voltage And Ambient Temperature

    Operating Instructions Icontrol Basic – model series FSDM2.6...62 Enclosure 8.1.1 Maximum loading dependent on switching frequency, line voltage and ambient temperature The maximum permissible temperature for the rated current at rated voltage and rated clock frequency is specified as rated temperature. Since the dissipation of the power loss (heat development) in the device is decisively dependent on the ambient temperature, the max.
  • Page 25 Operating Instructions Icontrol Basic – model series FSDM2.6...62 Enclosure Maximum motor current for 10 kHz depending on line voltage and ambient temperature Type 208 V (-15 %)...415 V (+6 %) over 415 V (+6 %)...480 V (+10 %) 40 °C 50 °C 55 °C 40 °C...
  • Page 26: Connection Diagram

    Operating Instructions Icontrol Basic – model series FSDM2.6...62 Enclosure Connection diagram Icontrol Basic FSDM...(A)(Q) Temperaturfühler Hauptschalter nur bei „Q“ in Typ! TP = Thermistors Main switch only at „Q“ in type! Thermostatschalter 0...20 mA TB = Kontaktbelastung Thermostats Contact rating max.
  • Page 27: L-Bal-E160-Gb 1701 Index 004 Part.-No

    Operating Instructions Icontrol Basic – model series FSDM2.6...62 Enclosure FSDM5...FSDM17 (FSDM25) FSDM32...FSDM62 L-BAL-E160-GB 1701 Index 004 Part.-No. 27/28...
  • Page 28: Manufacturer Reference

    Manufacturer reference Our products are manufactured in accordance with the relevant international regulations. If you have any questions concerning the use of our products or plan special uses, please contact: ZIEHL-ABEGG SE Heinz-Ziehl-Straße 74653 Künzelsau Telephone: +49 (0) 7940 16-0 Telefax: +49 (0) 7940 16-504 info@ziehl-abegg.de...
