WAFER-BT

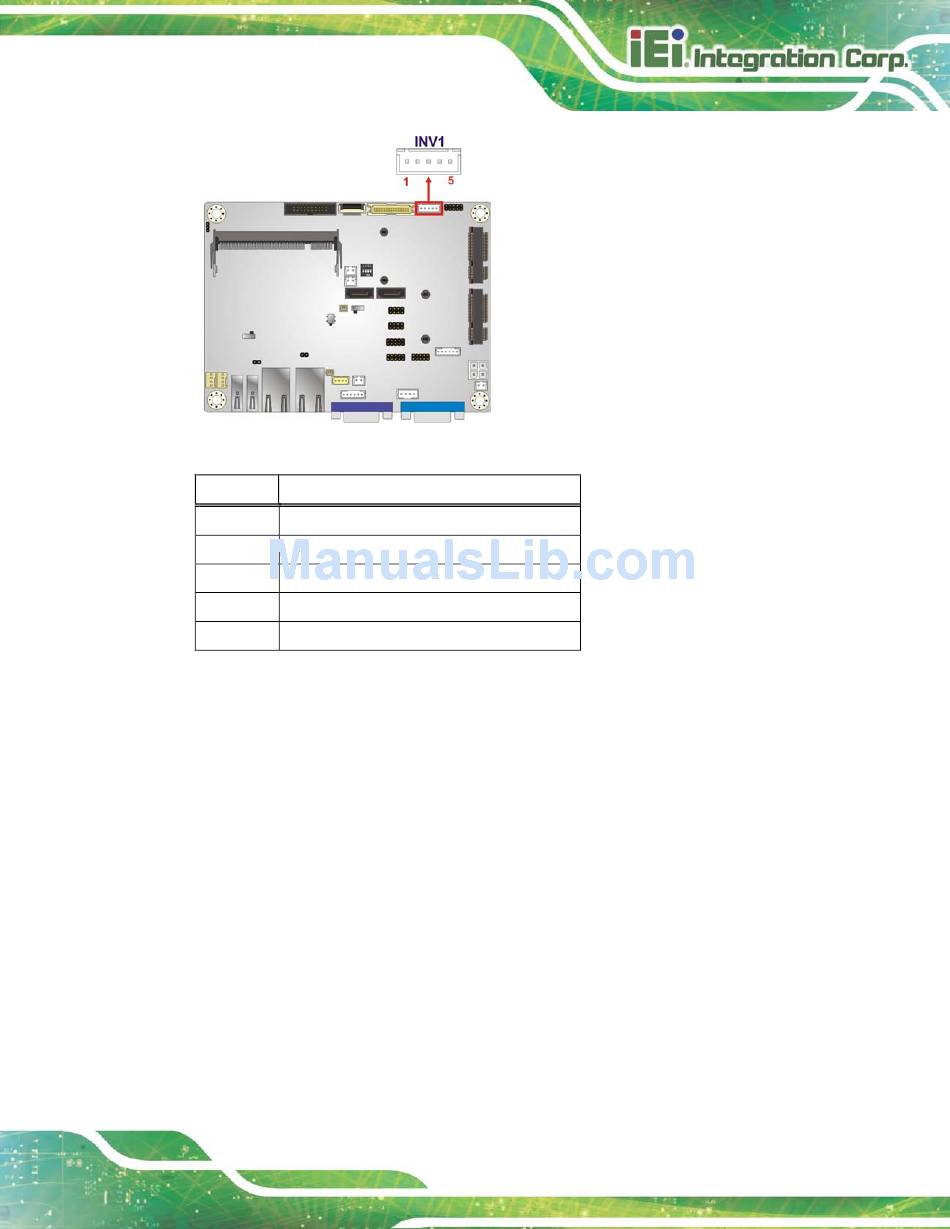

Figure 3-13: Backlight Inverter Connector Location

Pin Description
1
BRIGHTNESS2
2
GND
3
12V
4
GND
5
ENABKL2

Table 3-12: Backlight Inverter Connector Pinouts

3.2.13 LVDS LCD Co n n e c to r
CN La b e l: LVDS 1
30-pin crimp
CN Typ e :
CN Lo c a tio n : See Figure 3-14
CN P in o u ts : See Table 3-13
The LVDS connector is for an LCD panel connected to the board.
P a g e 27
