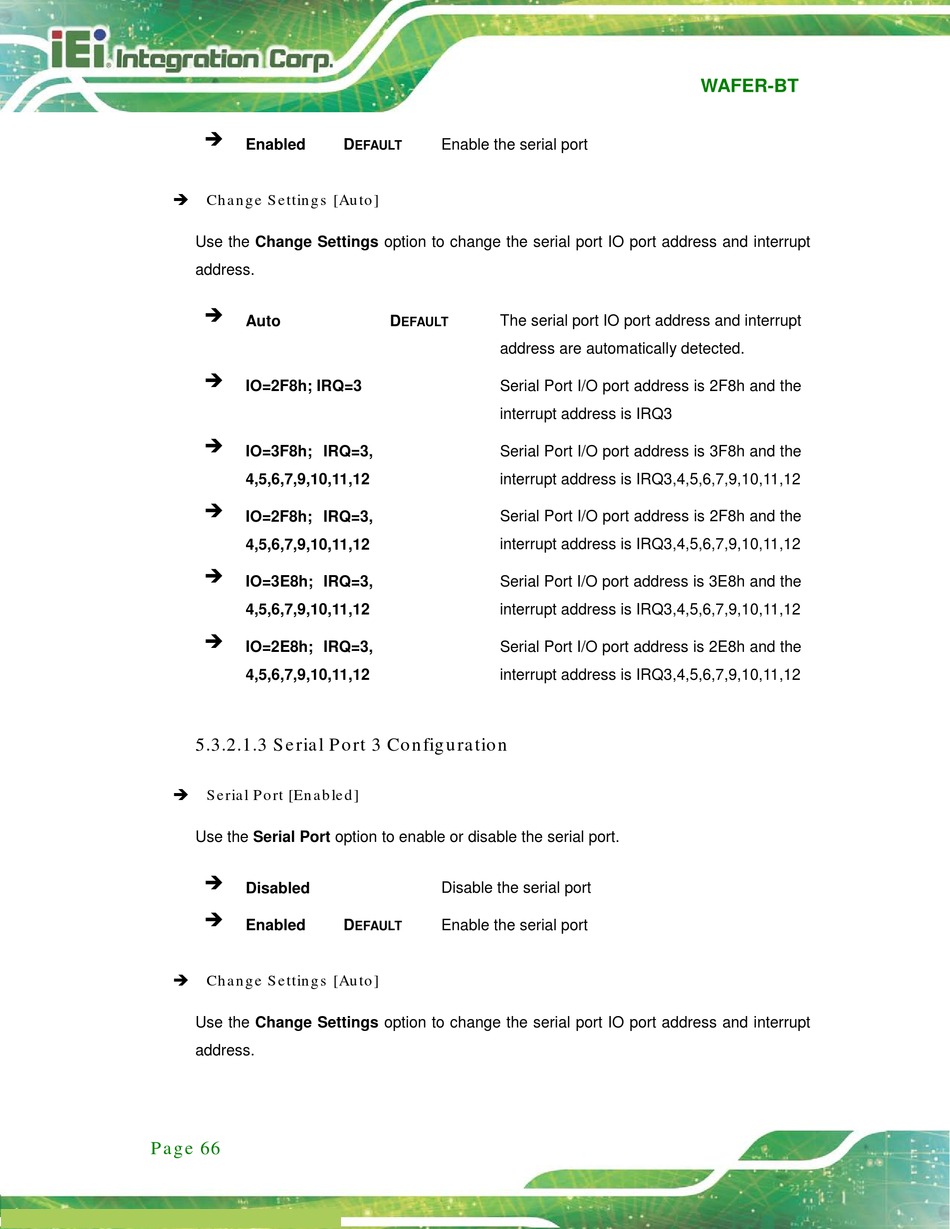

Enabled

Ch a n g e S e ttin g s [Au to ]
Use the Change Settings option to change the serial port IO port address and interrupt
address.

Auto

IO=2F8h; IRQ=3

IO=3F8h; IRQ=3,
4,5,6,7,9,10,11,12

IO=2F8h; IRQ=3,
4,5,6,7,9,10,11,12

IO=3E8h; IRQ=3,
4,5,6,7,9,10,11,12

IO=2E8h; IRQ=3,
4,5,6,7,9,10,11,12
5.3.2.1.3 S e ria l P o rt 3 Co n fig u ra tio n

S e ria l P o rt [En a b le d ]
Use the Serial Port option to enable or disable the serial port.

Disabled

Enabled

Ch a n g e S e ttin g s [Au to ]
Use the Change Settings option to change the serial port IO port address and interrupt
address.
P a g e 66
Enable the serial port
D
EFAULT
D The serial port IO port address and interrupt
EFAULT
address are automatically detected.
Serial Port I/O port address is 2F8h and the
interrupt address is IRQ3
Serial Port I/O port address is 3F8h and the
interrupt address is IRQ3,4,5,6,7,9,10,11,12
Serial Port I/O port address is 2F8h and the
interrupt address is IRQ3,4,5,6,7,9,10,11,12
Serial Port I/O port address is 3E8h and the
interrupt address is IRQ3,4,5,6,7,9,10,11,12
Serial Port I/O port address is 2E8h and the
interrupt address is IRQ3,4,5,6,7,9,10,11,12
Disable the serial port
D Enable the serial port
EFAULT
