5.3.2 S u pe r IO Co n fig u ra tio n
Use the Super IO Configuration menu (BIOS Menu 4) to set or change the
configurations for the serial ports.
Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc.
Advanced

Super IO Configuration

Super IO Chip
> Serial Port 1 Configuration
> Serial Port 2 Configuration
> Serial Port 3 Configuration
> Serial Port 4 Configuration
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

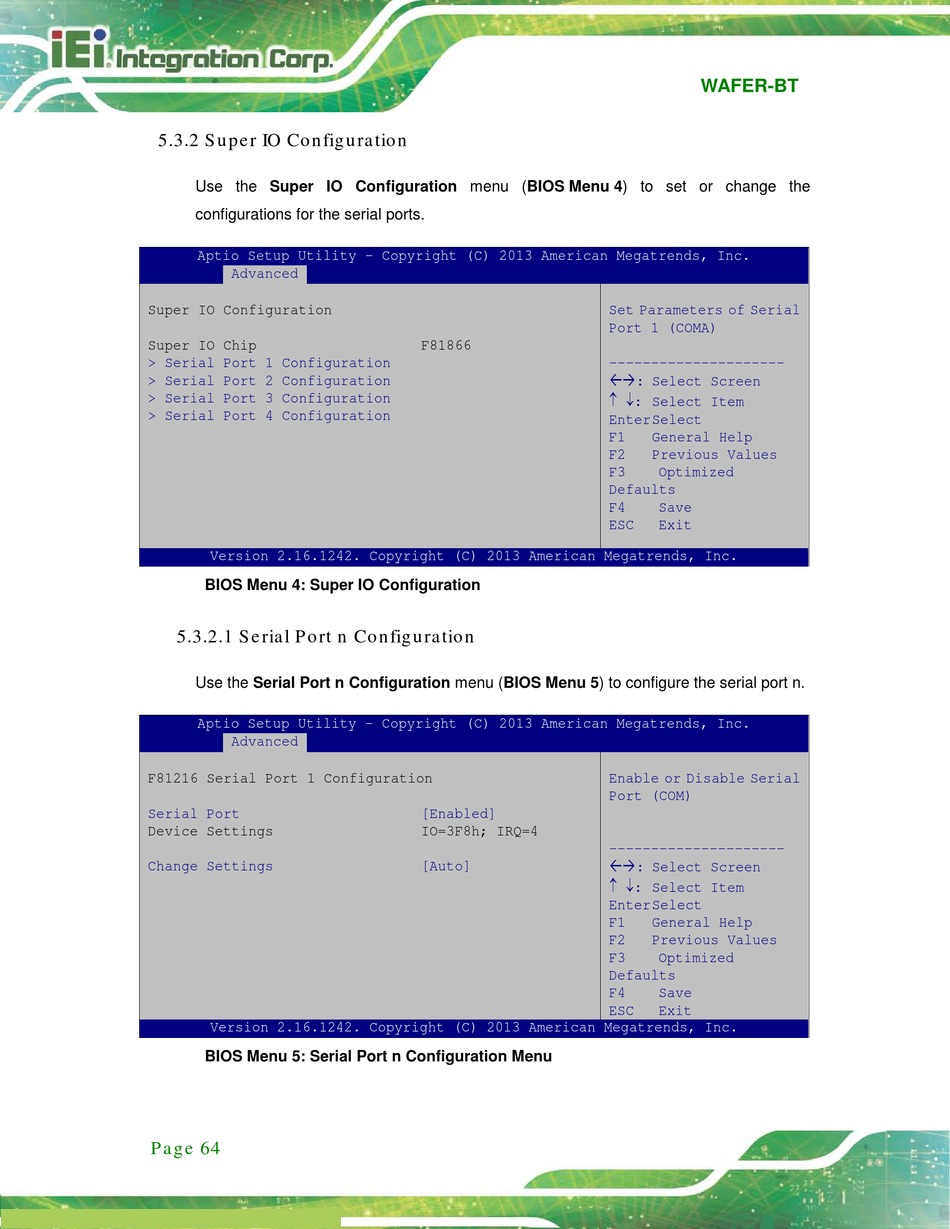

BIOS Menu 4: Super IO Configuration

5.3.2.1 S e ria l P o rt n Co n fig u ra tio n
Use the Serial Port n Configuration menu (BIOS Menu 5) to configure the serial port n.
Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc.
Advanced
F81216 Serial Port 1 Configuration
Serial Port
Device Settings
Change Settings
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

BIOS Menu 5: Serial Port n Configuration Menu
