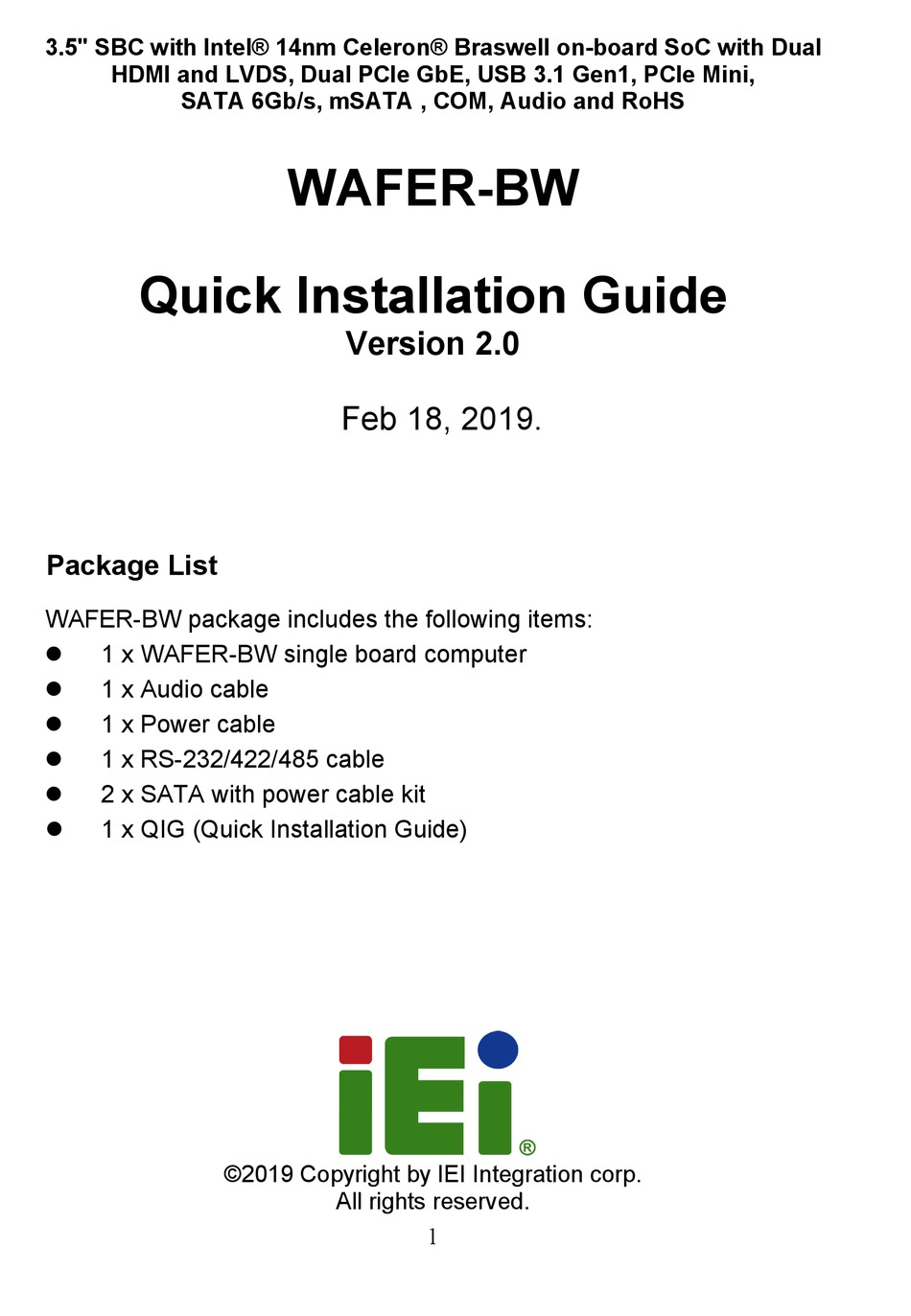

3.5" SBC with Intel® 14nm Celeron® Braswell on-board SoC with Dual
HDMI and LVDS, Dual PCIe GbE, USB 3.1 Gen1, PCIe Mini,
SATA 6Gb/s, mSATA , COM, Audio and RoHS
Quick Installation Guide
Package List
WAFER-BW package includes the following items:
1 x WAFER-BW single board computer
1 x Audio cable
1 x Power cable
1 x RS-232/422/485 cable
2 x SATA with power cable kit
1 x QIG (Quick Installation Guide)
WAFER-BW
Version 2.0
Feb 18, 2019.
©2019 Copyright by IEI Integration corp.
All rights reserved.
1
Advertisement
Related Manuals for IEI Technology WAFER-BW Series
Summary of Contents for IEI Technology WAFER-BW Series
-
Page 1: Quick Installation Guide
3.5" SBC with Intel® 14nm Celeron® Braswell on-board SoC with Dual HDMI and LVDS, Dual PCIe GbE, USB 3.1 Gen1, PCIe Mini, SATA 6Gb/s, mSATA , COM, Audio and RoHS WAFER-BW Quick Installation Guide Version 2.0 Feb 18, 2019. Package List WAFER-BW package includes the following items: 1 x WAFER-BW single board computer ... -
Page 2: Specifications
Specifications SoC: Intel® Pentium® N3710 on-board SoC (up to 2.56GHz, quad-core, 2MB cache, TDP=6W) Intel® Celeron® N3160 on-board SoC (up to 2.24GHz, quad-core, 2MB cache, TDP=6W) Intel® Celeron® N3060 on-board SoC (up to 2.48GHz, dual-core, 2MB cache, TDP=6W) Intel® Celeron® N3010 on-board SoC (up to 2.24GHz, dual-core, 2MB cache, TDP=4W) ... - Page 3 3 x RS-232 (1x9 pin, P=1.25) 1 x mSATA 4 x USB 2.0 (2x4 pin, P=2.0) 2 x RS-232/422/485 (2 by pin header) (1x9 pin, P=1.25) SMBus: 1 x SMBus (1x4 pin) I²C: 1 x I²C (1x4 pin) ...
-
Page 4: Ordering Information
Dimensions: 146mm x 102mm Weight(GW/ NW): 600g/ 250g All the drivers and One Key Recovery IEI Resource Download Center utility for the WAFER-BW are available https://download.ieiworld.com on IEI Resource Download Center. Type WAFER-BW and press Enter to find all the relevant software, utilities, and documentation. -
Page 5: Jumpers Setting And Connectors
Jumpers setting and connectors LABEL FUNCTION J_ATX_AT1 Select ATX or AT mode J_CMOS1 CMOS state setting J_PW1 LVDS1 Voltage Selection HDMI1 Dual HDMI Connector LAN1 LAN1 Connector LAN2 LAN2 Connector USB1 External 2 Port USB3.0 Connectors USB2 External 2 Port USB2.0 Connectors USB3 COM1 External Serial Port Connector... - Page 6 J_ATX_AT1: AT/ATX Power Mode Setting PIN NO. DESCRIPTION Short 1 - 2 ATX Power Mode (default) Short 2 - 3 AT Power Mode J_CMOS1: Clear CMOS Setup PIN NO. DESCRIPTION Open Normal Operation (Default) Push Clear CMOS Setup J_PW1: LVDS1 Voltage Selection PIN NO.
- Page 7 HDMI1: Dual 19-pin HDMI Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION HDMI_A_DATA2P HDMI_B_DATA2P HDMI_A_DATA2N HDMI_B_DATA2N HDMI_A_DATA1P HDMI_B_DATA1P HDMI_A_DATA1N HDMI_B_DATA1N HDMI_A_DATA0P HDMI_B_DATA0P HDMI_A_DATA0N HDMI_B_DATA0N HDMI_A_CLKP HDMI_B_CLKP HDMI_A_CLKN HDMI_B_CLKN HDMI_A_SCL HDMI_B_SCL HDMI_A_SDA HDMI_B_SDA HDMI_A_HPD HDMI_B_HPD USB1: External USB3.0 Connector PIN NO. DESCRIPTION PIN NO.
- Page 8 COM1: External Serial Port Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION COM2/3/5: Internal Serial Port Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION COM4/6: Internal Serial Port Connector Mode RS232 RS422 RS485 PIN NO. DESCRIPTION DESCRIPTION DESCRIPTION TXD- DATA- TXD+ DATA+ RXD+ RXD- AUDIO1: Audio Line-In/Out MIC Connector...
- Page 9 SATA1/2 : Serial ATA Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION SATA_PWR1/2: SATA Power Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION Ground LVDS1: LVDS Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION A_Y0 A_Y0# A_Y1 A_Y1# A_Y2 A_Y2# A_CK A_CK# A_Y3 A_Y3# B_Y0 B_Y0#...
- Page 10 CN1: Power LED & HDD LED connector PIN NO. DESCRIPTION PWR_LED+ Power LED PWR_LED- HDD_LED+ HDD LED HDD_LED- RST_BTN1: Reset Button Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION RESET+ RESET- PWR_BTN1: Power Button Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION PWR_BTN+ PWR_BTN- PWR1: +12V Power Connector...
- Page 11 MINI_PCIE1: Mini PCI-E Card Connector(Support SIM Card) PIN NO. DESCRIPTION PIN NO. DESCRIPTION PCIE_WAKE# VCC3 1.5V UIM_PWR UIM_DATA PCIE_CLK# UIM_CLK PCIE_CLK UIM_RST UIM_VPP PCIRST# PCIE_RXN PCIE_RXP 1.5V SMBCLK PCIE_TXN SMBDATA PCIE_TXP USBD- USBD+ VCC3 VCC3 1.5V VCC3...
- Page 12 MINI_PCIE2: Mini PCI-E Card Connector(Support mSATA) PIN NO. DESCRIPTION PIN NO. DESCRIPTION PCIE_WAKE# VCC3 1.5V PCIE_CLK# PCIE_CLK PCIRST# PCIE_RXN(SATA_RX+) PCIE_RXP(SATA_RX-) 1.5V SMBCLK PCIE_TXN(SATA_TX-) SMBDATA PCIE_TXP(SATA_TX+) USBD- USBD+ VCC3 VCC3 1.5V VCC3...
- Page 13 DIO1 : Digital Input / Output Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION Ground Output 3 Output 2 Output 1 Output 0 Input 3 Input 2 Input 1 Input 0 J_KB/MS1: 6-pin header Keyboard/Mouse Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION Mouse Data Mouse Clock...
- Page 14 Board Layout: Jumper and Connector Locations (Unit: mm)
