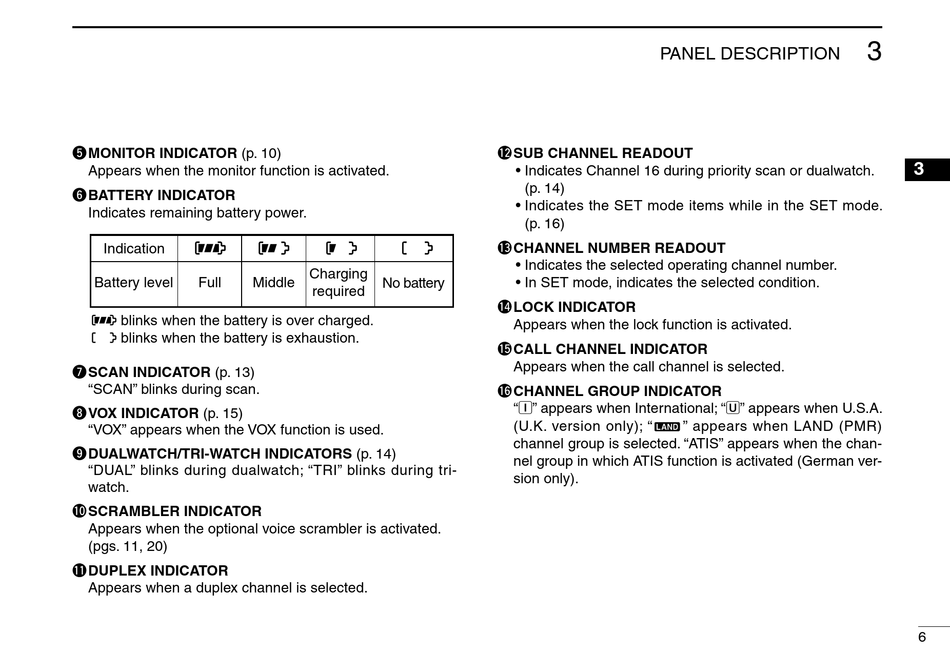

Icom IC-M90E Instruction Manual page 11

t MONITOR INDICATOR (p. 10)
Appears when the montor functon s actvated.
y BATTERY INDICATOR
Indcates remanng battery power.
Indcaton
Battery level Full
blnks when the battery s over charged.
blnks when the battery s exhauston.
u SCAN INDICATOR (p. 13)
"SCAN" blnks durng scan.
i VOX INDICATOR (p. 15)
"VOX" appears when the VOX functon s used.
o DUALWATCH/TRI-WATCH INDICATORS (p. 14)
"DUAL" blnks durng dualwatch; "TRI" blnks durng tr-
watch.
!0 SCRAMBLER INDICATOR
Appears when the optonal voce scrambler s actvated.
(pgs. 11, 20)
!1 DUPLEX INDICATOR
Appears when a duplex channel s selected.
Chargng
Mddle No battery
requred
PANEL DESCRIPTION
!2 SUB CHANNEL READOUT
• Indcates Channel 16 durng prorty scan or dualwatch.
(p. 14)
• Indcates the SET mode tems whle n the SET mode.
(p. 16)
!3 CHANNEL NUMBER READOUT
• Indcates the selected operatng channel number.
• In SET mode, ndcates the selected condton.
!4 LOCK INDICATOR
Appears when the lock functon s actvated.
!5 CALL CHANNEL INDICATOR
Appears when the call channel s selected.
!6 CHANNEL GROUP INDICATOR
"I" appears when Internatonal; "U" appears when U.S.A.
(U.K. verson only); "
channel group s selected. "ATIS" appears when the chan-
nel group n whch ATIS functon s actvated (German ver-
son only).
" appears when LAND (PMR)
3
3
6
