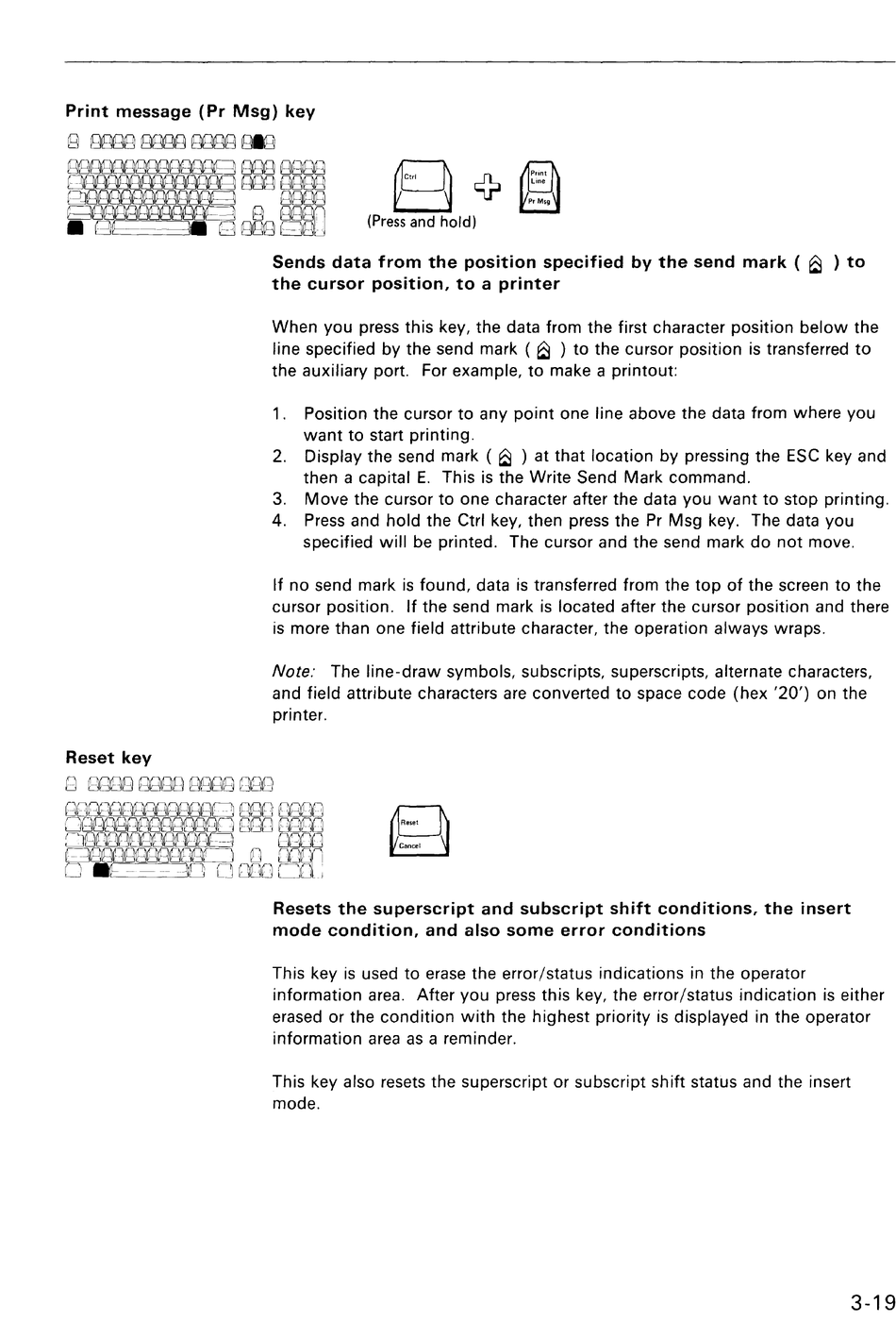

IBM 3164 ASCII Manual page 44

Print message (Pr Msg) key
B BBBB BBBB BBBB BIB
BBBBBBBBBBBB8B 8BB BBGB
OBBBBBBBBBBBBB BBB BBBB
~BBBBBBBBBBB~
BBBB
B¢
if~e~~~i~
BBB
~BD
(Press and hold)
Reset key
Sends data from the position specified by the send mark (
~
) to
the cursor position, to a printer
When you press this key, the data from the first character position below the
line specified by the send mark (
~
) to the cursor position is transferred to
the auxiliary port. For example, to make a printout:
1. Position the cursor to any point one line above the data from where you
want to start printing.
2. Display the send mark (
~
) at that location by pressing the ESC key and
then a capital E. This is the Write Send Mark command.
3. Move the cursor to one character after the data you want to stop printing.
4. Press and hold the Ctrl key, then press the Pr Msg key. The data you
specified will be printed. The cursor and the send mark do not move.
If no send mark is found, data is transferred from the top of the screen to the
cursor position. If the send mark is located after the cursor position and there
is more than one field attribute character, the operation always wraps.
Note:
The line-draw symbols, subscripts, superscripts, alternate characters,
and field attribute characters are converted to space code (hex '20') on the
printer.
g BBBB 8BGB 88BB OBB
B(]Q8BBBBBBBBBD
BBtJ
08BO
08BBBBBBBBBBBO BBO OBBO
~BOBOBBOBBBBLJ
0000
tfip~~~B9pr=a oRo
pgBr
Resets the superscript and subscript shift conditions, the insert
mode condition, and also some error conditions
This key is used to erase the error/status indications in the operator
information area. After you press this key, the error/status indication is either
erased or the condition with the highest priority is displayed in the operator
information area as a reminder.
This key also resets the superscript or subscript shift status and the insert
mode.
3-19
