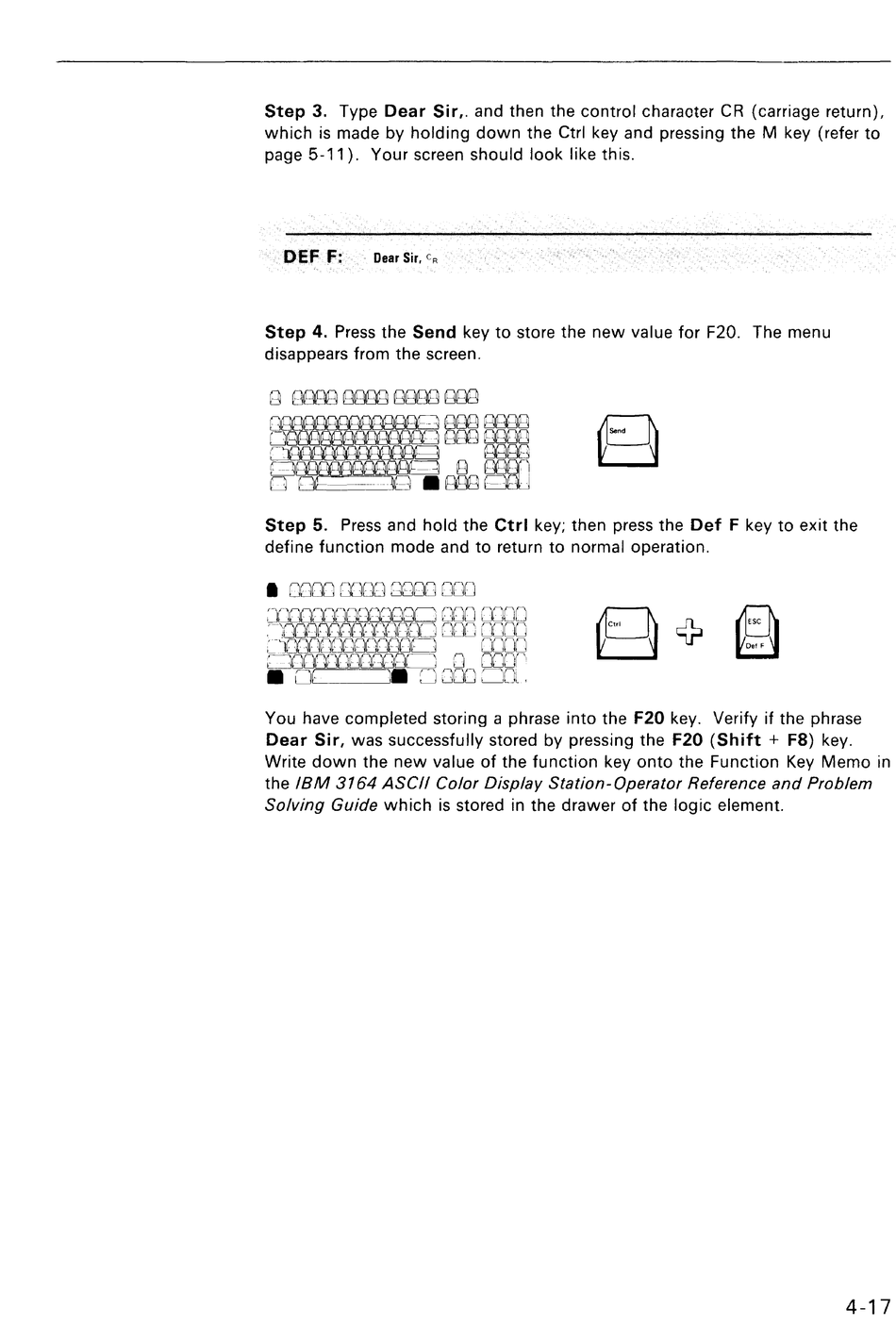

IBM 3164 ASCII Manual page 76

Step 3. Type Dear Sir,. and then the control charaoter CR (carriage return),
which is made by holding down the Ctrl key and pressing the M key (refer to
page 5-11). Your screen should look like this.
DEF F:
Dear Sir.
C R
Step 4. Press the Send key to store the new value for F20. The menu
disappears from the screen.
Step 5. Press and hold the Ctrl key; then press the Def F key to exit the
define function mode and to return to normal operation.
• 0000 0000 JgOO 000
~JOOOOOOOOOOClClD
000 CJOOO
,'--;0000000000000 000 0000
iJOOOOOOClOOOOD 0000
DOOOOOOOGOOc::::J 0 000("
• O~
l .
CJ 000 ~OL
,
~~
A
t::::j
~
You have completed storing a phrase into the F20 key. Verify if the phrase
Dear Sir, was successfully stored by pressing the F20 (Shift
+
F8) key.
Write down the new value of the function key onto the Function Key Memo in
the IBM 3164 ASCII Color Display Station-Operator Reference and Problem
Solving Guide which is stored in the drawer of the logic element.
4-17
