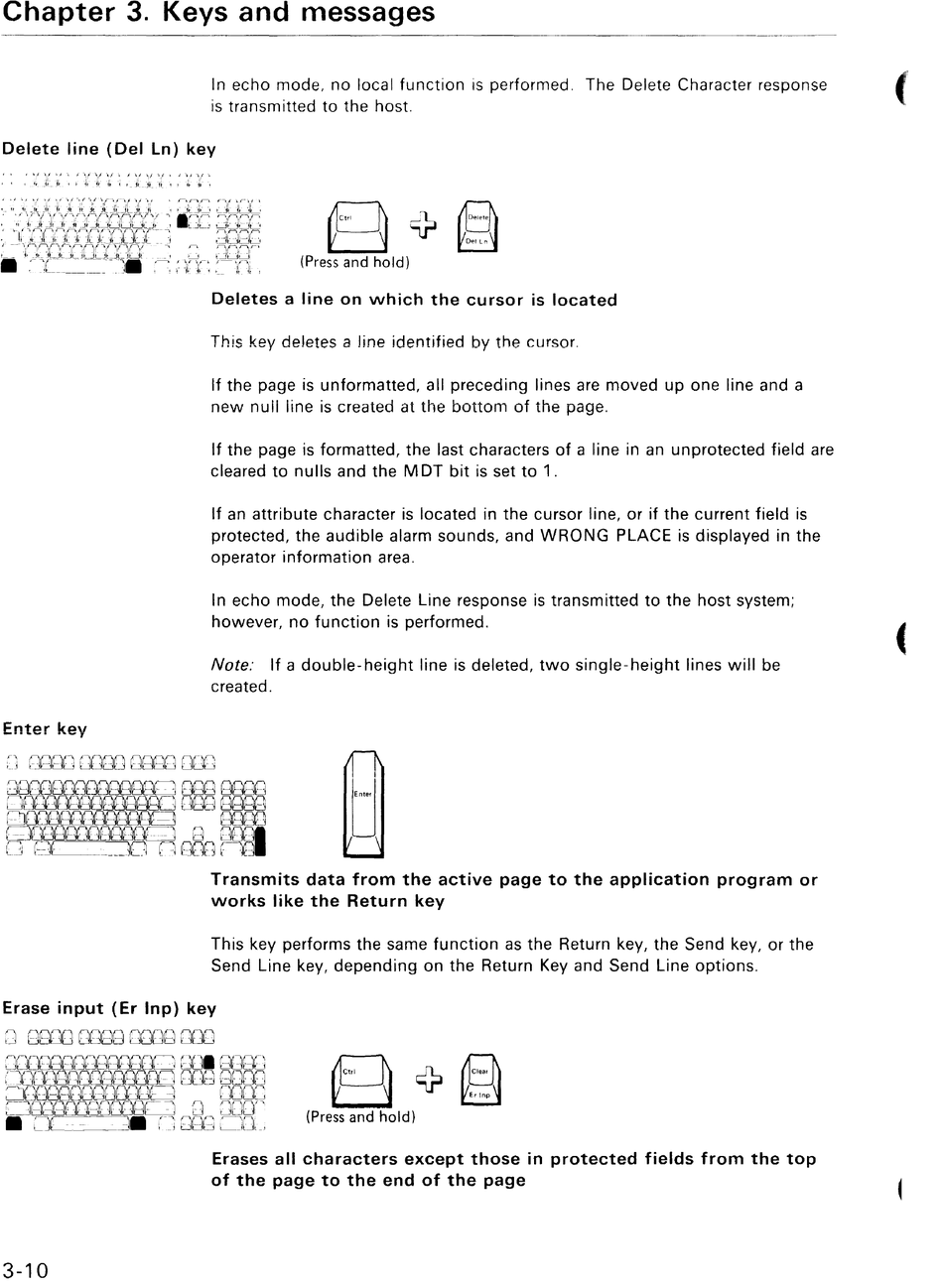

Chapter 3. Keys and messages
In echo mode, no local function is performed. The Delete Character response (
is transmitted to the host.
Delete line (Del Ln) key
, .. I ", I ' I , , , ~- "\ I -. f • I \ I \ I .. I • I -. I -'f •
, 1,. jr __ It , t
l.
it
j~ ~
f _
11- _ -" _
1~_
' , It
it ,
Enter key
if:!)
s?
~
~ ~
(Press and hold)
Deletes a line on which the cursor is located
This key deletes a line identified by the cursor.
If the page is unformatted, all preceding lines are moved up one line and a
new nuil iine is created at the bottom of the page.
If the page is formatted, the last characters of a line in an unprotected field are
cleared to nulls and the MDT bit is set to 1.
If an attribute character is located in the cursor line, or if the current field is
protected, the audible alarm sounds, and WRONG PLACE is displayed in the
operator information area.
In echo mode, the Delete Line response is transmitted to the host system;
however, no function is performed.
Note:
If a double- height line is deleted, two single- height lines will be
created.
Transmits data from the active page to the application program or
works like the Return key
This key performs the same function as the Return key, the Send key, or the
Send Line key, depending on the Return Key and Send Line options.
Erase input (Er Inp) key
J 8BOO OOBB 800B 800
~jOOO~OOOBBOOOG dOl OOQe
ClOOOOOOuQQgOBO 008 GOOD
~OOBOOOOOOOO~
DODe
OOOOOOOOOOB[-l d ~DDn
• CJL_- -- _ _ - -=~. (-::J 80G =:JD.,
B¢~
(Press and hold)
Erases all characters except those in protected fields from the top
of the page to the end of the page
