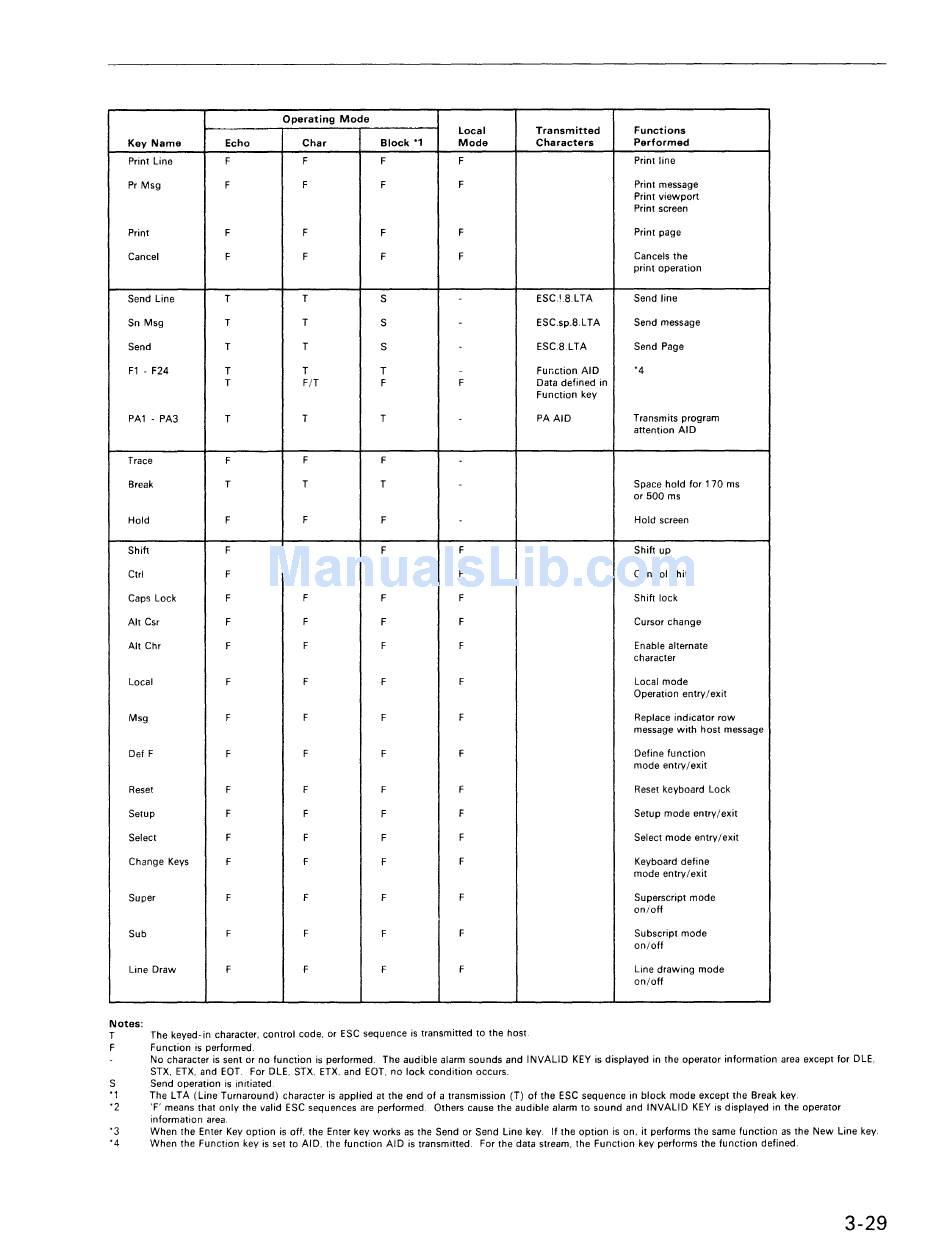

IBM 3164 ASCII Manual page 54

Operating Mode
Local Transmitted Functions
Key Name Echo Char Block '1 Mode
Characters Performed
Print Line F F F F
Print line
Pr Msg F F F
F Print message
Print viewport
Print screen
Print F
F
F
F Print page
Cancel
F
F F F Cancels the
print operation
Send Line T
T
S
ESC!.B.LTA Send line
Sn Msg T T
S
ESC.sp.8.LTA Send message
Send T T
S
ESCB.LTA Send Page
F1 - F24
T
T
T
Fur-ction AID '4
T F/T F
F Data defined in
Function key
PA1 - PA3 T
T T PAAID Transmits program
attention AID
Trace F F F
Break T T T Space hold for 170 ms
or 500 ms
Hold F
F
F
Hold screen
Shift F F F F Shift up
Ctrl F
F
F
F Control shift
Caps Lock F F F
F Shift lock
Alt Csr F F F F Cursor change
Alt Chr F F F F Enable alternate
character
Local F F F F Local mode
Operation entry/exit
Msg F F F F Replace indicator row
message with host message
Def F F F F F Define function
mode entry/exit
Reset F F F F Reset keyboard Lock
Setup F F F F
Setup mode entry/exit
Select F F F F Select mode entry/exit
Change Keys F F F F Keyboard define
mode entry/exit
Super F F F F Superscript mode
on/off
Sub F F F F Subscript mode
on/off
Line Draw F F F F Line drawing mode
on/off
Notes:
T
F
S
'1
'2
"3
'4
The keyed-in character, control code, or ESC sequence is transmitted to the host
Function is performed.
No character is sent or no function is performed. The audible alarm sounds and INVALID KEY is displayed in the operator information area except for OLE,
STX, ETX, and EaT. For OLE, STX, ETX, and EaT, no lock condition occurs.
Send operation is initiated
The L TA (Line Turnaround) character is applied at the end of a transmission (T) of the ESC sequence in block mode except the Break key
'F' means that only the valid ESC sequences are performed. Others cause the audible alarm to sound and INVALID KEY is displayed in the operator
information area.
When the Enter Key option is off, the Enter key works as the Send or Send Line key. If the option is on, it performs the same function as the New Line key
When the Function key is set to AID, the function AID is transmitted. For the data stream, the Function key performs the function defined.
3-29
