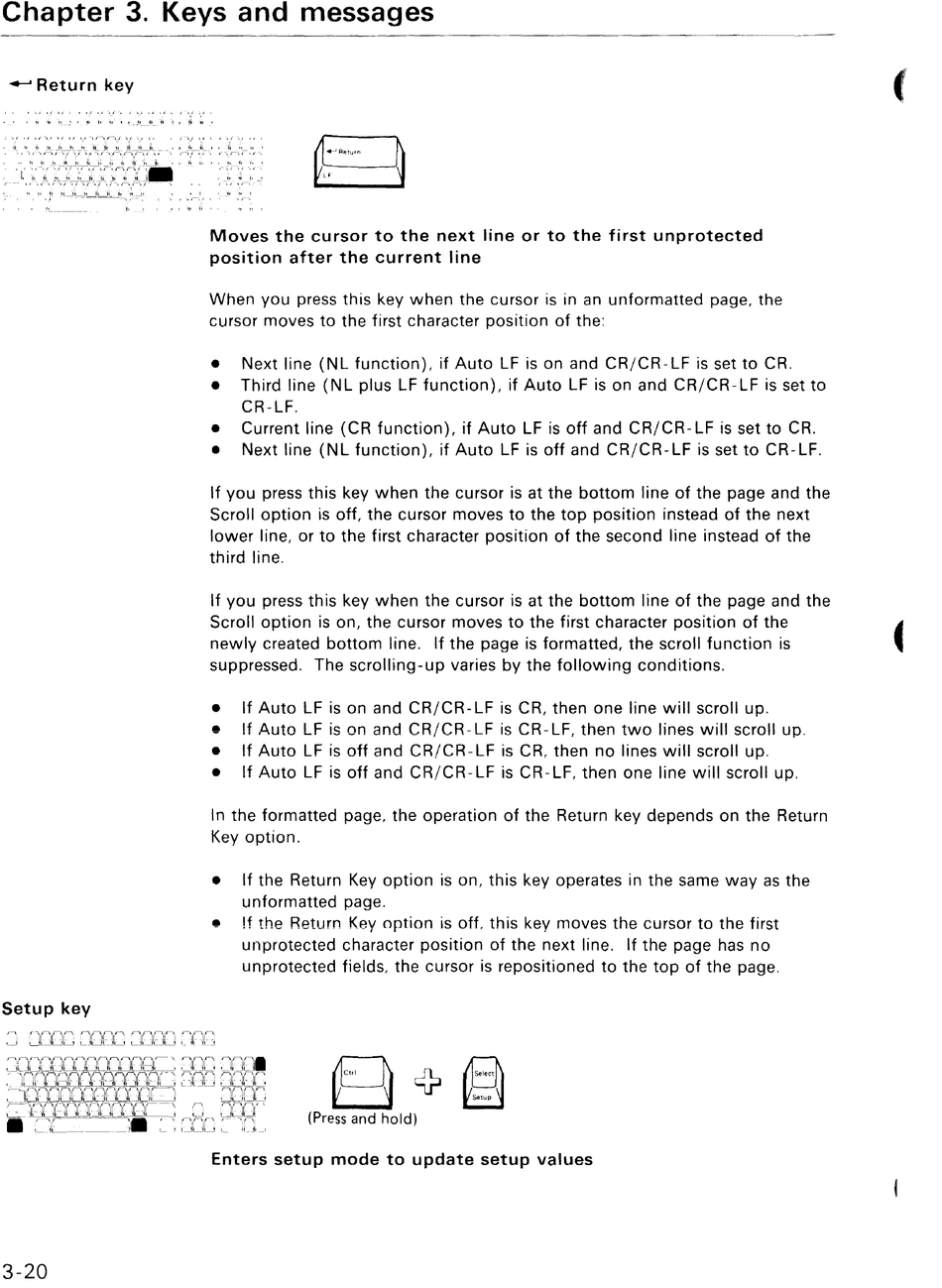

IBM 3164 ASCII Manual page 45

Chapter 3. Keys and messages
.-. Return key (
, " It It _, •
i~ ;,
;1 I , _,._
.t
11- ~ , it
It •
Setup key
~
JOOe JODe JOOO , _
Moves the cursor to the next line or to the first unprotected
position after the current line
When you press this key when the cursor is in an unformatted page, the
cursor moves to the first character position of the:
• Next line (NL function), if Auto LF is on and CR/CR-LF is set to CR.
• Third line (NL plus LF function), if Auto LF is on and CR/CR-LF is set to
CR-LF.
• Current line (CR function), if Auto LF is off and CR/CR-LF is set to CR.
• Next line (NL function), if Auto LF is off and CR/CR-LF is set to CR-LF.
If you press this key when the cursor is at the bottom line of the page and the
Scroll option is off, the cursor moves to the top position instead of the next
lower line, or to the first character position of the second line instead of the
third line.
If you press this key when the cursor is at the bottom line of the page and the
Scroll option is on, the cursor moves to the first character position of the
newly created bottom line. If the page is formatted, the scroll function is
suppressed. The scrolling-up varies by the following conditions.
• If Auto LF is on and CR/CR-LF is CR, then one line will scroll up.
• If Auto LF is on and CR/CR- LF is CR- LF, then two lines will scroll up.
• If Auto LF is off and CR/CR-LF is CR, then no lines will scroll up.
• If Auto LF is off and CR/CR-LF is CR-LF, then one line will scroll up.
In the formatted page, the operation of the Return key depends on the Return
Key option.
• If the Return Key option is on, this key operates in the same way as the
unformatted page.
• If the Return
Key
option is off. this key moves the cursor to the first
unprotected character position of the next line. If the page has no
unprotected fields, the cursor is repositioned to the top of the page.
CJOOCOCJOOOOOgC JOe ,](JOI
, JOOO(]OOOGOOOOC :JlJO JOoe
,i'-JJOOOOO(]OOOOLJ JODe
,-=1(]0800cooo(]r-~
C JOO;"
•
,~~=-
_ _ j.
,~~
,J:JC
~. ~C;._,
B9
(Press and hold)
t'I=J)
S
Enters setup mode to update setup values
3-20
