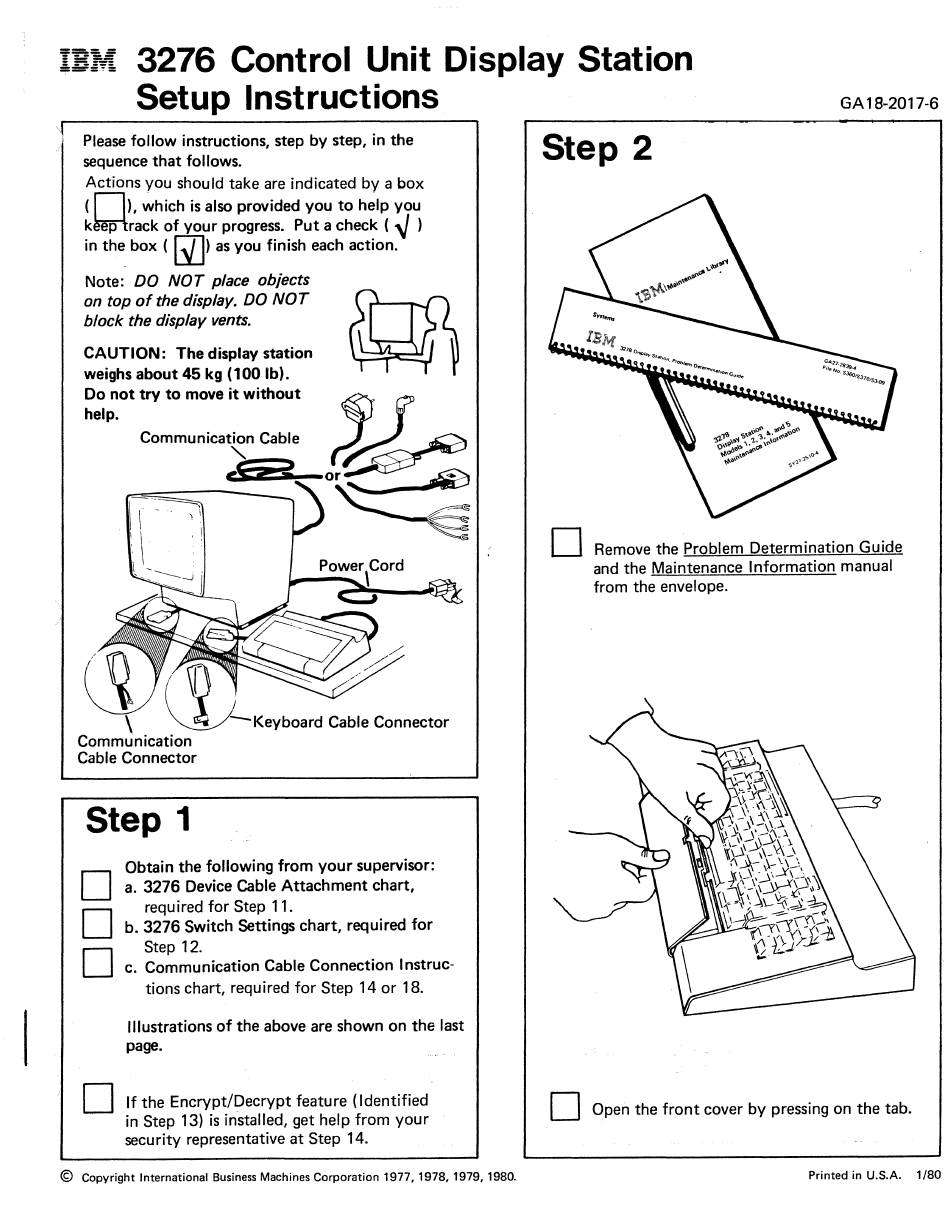

IBM 3276 Setup Instructions

IBt~1
3276 Control Unit Display Station
Setup Instructions
GA 1 S-2017-6
Please follow instructions, step by step, in the
sequence that follows.
Actions you should take are indicated by a box
( n),
~hich
is also provided you to
h~lp
you
k~rack
of your progress. Put a check (
,J )
in the_ box ( ~) as you finish each action.
Note: DO NOT place objects
on top of the display. DO NOT
block the display vents.
CAUTION: The display station
weighs about 45 kg (100 lb).
Do not try to move it without
help.
Communication Cable
"
ciz-~
Step 1
D
D
D
D
Obtain the following from your supervisor:
a. 3276 Device Cable Attachment chart,
required for Step 11.
b. 3276 Switch Settings chart, required for
Step 12.
c. Communication Cable Connection Instruc-
tions chart, required for Step 14 or 18.
Illustrations of the above are shown on the last
page.
If the Encrypt/Decrypt feature (Identified
in Step 13) is in.stalled, get help from your
security representative at Step 14.
©
Copyright International Business Machines Corporation 1977, 1978, 1979, 1980.
Step 2
D
Remove the Problem Determination Guide
and the Maintenance Information manual
from the envelope.
D
Open the front cover by pressing on the tab.
Printed in U.S.A. 1/80
