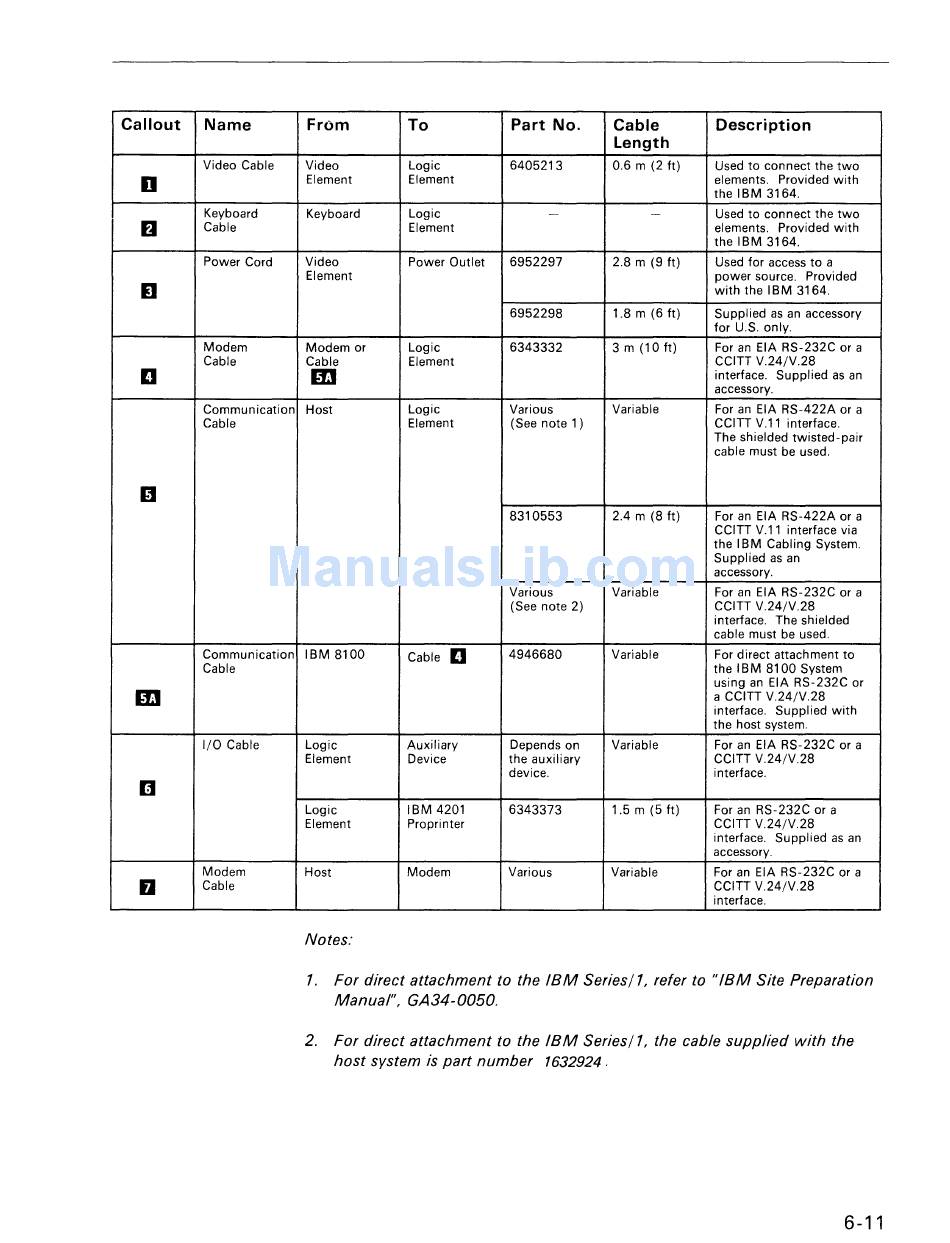

IBM 3164 ASCII Manual page 180

Callout Name
Video Cable
D
Keyboard
0
Cable
Power Cord
II
Modem
Cable
D
Communication
Cable
IJ
Communication
Cable
III
I/O Cable
D
Modem
IJ
Cable
From
To
Part No.
Cable
Description
Length
Video Logic 6405213 0.6 m (2 ft)
Used to connect the two
Element Element elements. Provided with
the IBM 3164.
Keyboard Logic
-
-
Used to connect the two
Element elements. Provided with
the IBM 3164.
Video
Power Outlet 6952297 2.8 m (9 ft) Used for access to a
Element
power source. Provided
with the IBM 3164.
6952298 1.8 m (6 ft) Supplied as an accessory
for U.S. only.
Modem or Logic 6343332 3m(10ft) For an EIA RS-232C or a
Cable Element CCITT V.24/V.28
III
interface. Supplied as an
accessory.
Host Logic Various Variable For an EIA RS-422A or a
Element
(See note 1 ) CCITT V.11 interface.
The shielded twisted-pair
cable must be used.
8310553 2.4 m (8 ft) For an EIA RS-422A or a
CCITT V.11 interface via
the I BM Cabling System.
Supplied as an
accessory.
Various Variable For an EIA RS-232C or a
(See note 2) CCITT V.24/V.28
interface. The shielded
cable must be used.
IBM 8100
Cable
D
4946680 Variable For direct attachment to
the IBM 8100 System
using an EIA RS-232C or
a CCITT V.24/V.28
interface. Supplied with
the host system.
Logic Auxiliary Depends on Variable For an EIA RS-232C or a
Element Device the auxiliary CCITT V.24/V.28
device. interface.
Logic IBM 4201 6343373 1.5 m (5 ft) For an RS-232C or a
Element Proprinter CCITT V.24/V.28
interface. Supplied as an
accessory.
Host
Modem
Various
Variable For an EIA RS-232C or a
CCITT V.24/V.28
interface.
Notes:
1. For direct attachment to the IBM Series/1, refer to "IBM Site Preparation
Manual", GA34-0050.
2. For direct attachment to the IBM Series/ " the cable supplied with the
host system is part number
1632924.
6-11
