7958 Door Track - Arrow VT1210-A Owner's Manual & Assembly Instructions

Step 12
BW24

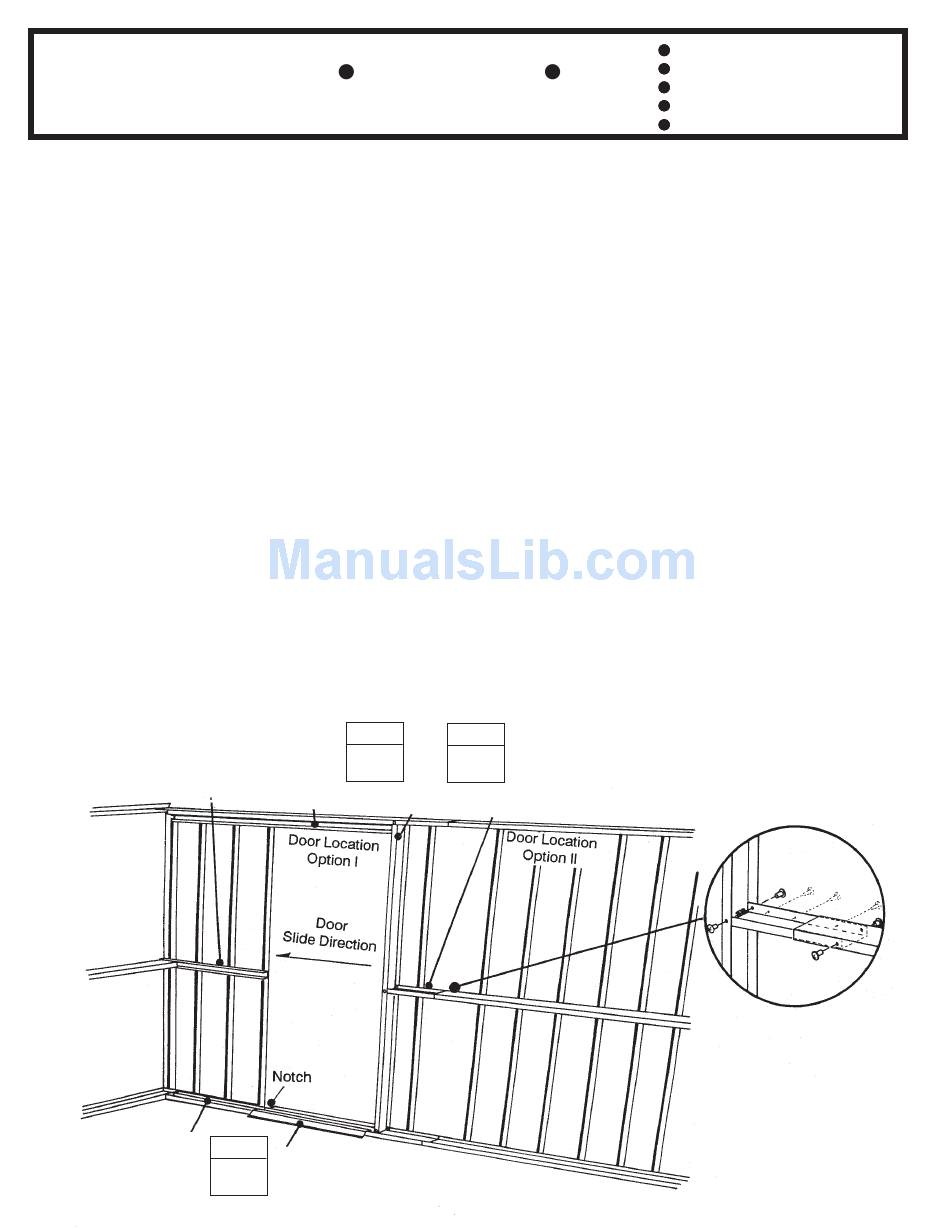

Using the previous side entry door
steps and this illustration, you can
install the entry door at 2 locations
along the rear wall. Whichever you
choose, the door will always slide
towards the corner of the building.
1
Install lower door track and ramp
using 1/4" bolts and nuts.
2
Fasten splice channel, upside
down, to rear frame and to support
column using bolts and nuts, and to
wall panel using screws. Fasten sup-
port column to rear frames using bolts
and nuts. Fold rear wall panel slightly
away from column to tighten bolts
and nuts.
3
Position door track to the inside of
the rear frame, butted up against sup-
port column. With short flange of track
at bottom, fasten frame to track using
4 screws at the 2nd, 3rd, 4th and 5th
hole in from support column.
7948
Step 13
7517
24
Parts Needed For
Rear Entry Door All Sizes
STEP
3
7958
STEP
7560
INSIDE OF
1
BUILDING
STEP
2
7951
8530
7517 Lower Door Track (1)
7560 Ramp (1)
8530 Splice Channel (1)
7951 Support Column (1)

7958 Door Track (1)

INSIDE
