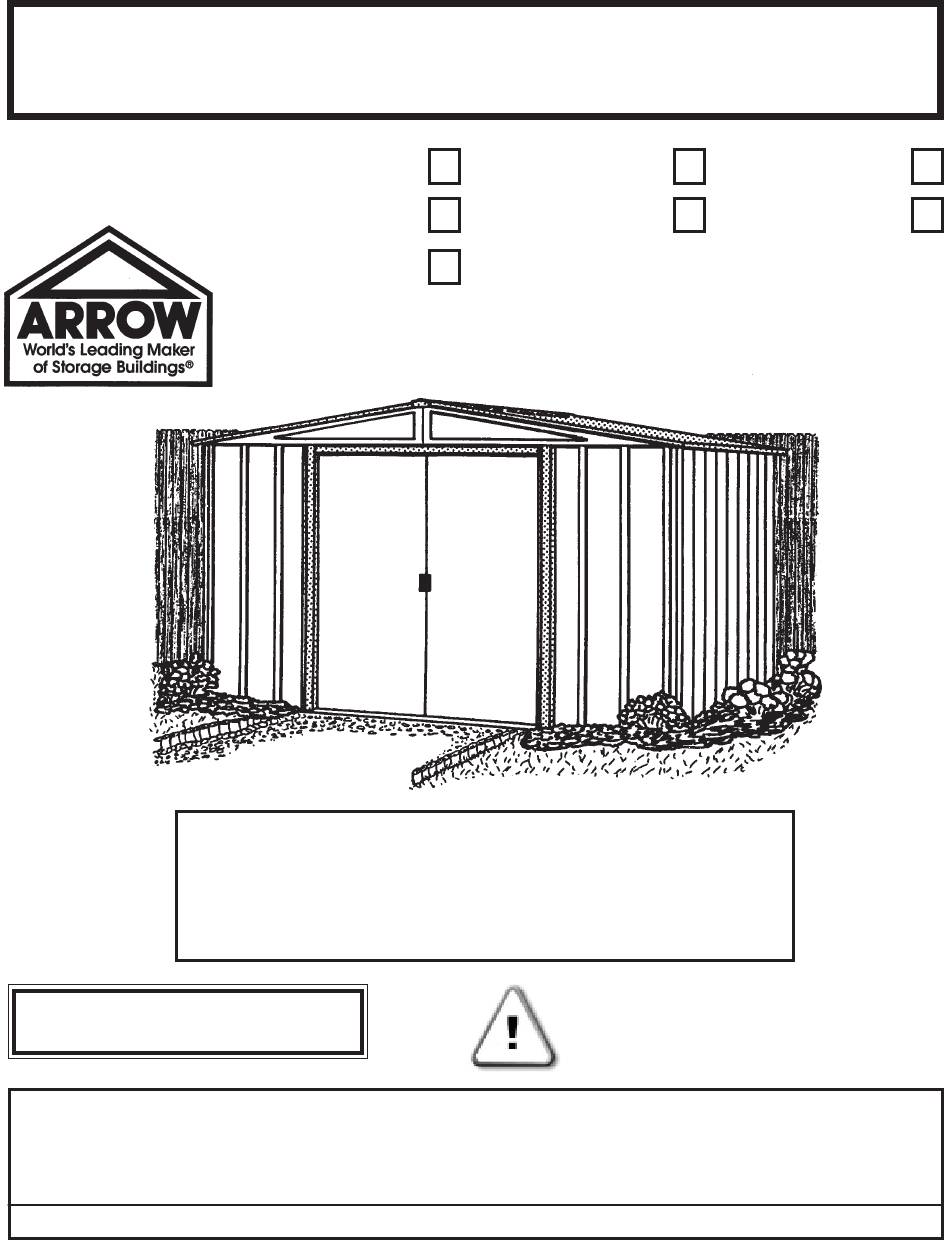

Owner's Manual & Assembly Instructions
P01
Model No.
709140210
Storage Area: 43 Sq. Ft.
4,0 m
BUILDING DIMENSIONS * Size rounded off to the nearest foot
*Approx.
Base
Size
Size
8' x 6'
97 1/2" x 68 3/4"
2,4 m x 1,7 m 247,7 cm x 174,6 cm
EH86-A
ML86-A
WL86-A
Missing Parts, Questions on Assembly?
Call: 1-800-851-1085
Do not return to dealer, they are not
equipped to handle your requests.
237 Cu. Ft.
6,7 m
2
3
Exterior Dimensions
(Roof Edge to Roof Edge)
Width
Depth
99 3/4"
253,4 cm
181,0 cm
EH86S
SA8662-A
Height
Width
71 1/4"
69 7/8"
177,5 cm
240,7 cm
VL8662-A
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
WHEN HANDLING METAL PARTS.
Interior Dimensions
(Wall to Wall)
Depth
Height
94 3/4"
66"
68 5/8"
167,6 cm
174,3 cm
LM86
Door
Opening
Width
Height
43 1/2"
60"
110,5 cm 152,4 cm
Advertisement
Related Manuals for Arrow EH86-A
Summary of Contents for Arrow EH86-A
- Page 1 Owner's Manual & Assembly Instructions Model No. EH86-A EH86S LM86 ML86-A SA8662-A VL8662-A WL86-A Missing Parts, Questions on Assembly? Call: 1-800-851-1085 Do not return to dealer, they are not equipped to handle your requests. 709140210 CAUTION: SOME PARTS HAVE SHARP EDGES. CARE Storage Area: 43 Sq.
- Page 2 We recommend the combined use of an Arrow Floor Frame Kit and an Arrow Anchoring Kit as an effective method of securing your building to the ground (Available by mail order or at your local dealer) or you may construct a base and anchoring system of your choice.
-
Page 3: Tools And Materials
PLAN AHEAD..Be sure the day you select to install your building is dry and calm. Watch the Weather: Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground. Whenever possible, two or more people should work together to assemble Teamwork: your building. - Page 4 SAFETY FIRST..Safety precautions are important to follow throughout the construction of your building. •Care must be taken when handling various •Practice caution with the tools being used in the pieces of your building since some contain assembly of this building. Be familiar with the sharp edges.
- Page 5 Roof: amounts of snow on roof can damage building making it unsafe to enter. In snow country, Roof Strengthening Kits are available for most Arrow Buildings for added protection against heavy snow accumulation. Always keep the door tracks clear of dirt and other debris that prevent them from Doors: sliding easily.
- Page 6 10'x9' (3,0 m x 2,6 m), use 2 kits. Model No. AT101 Heavy-duty galvanized steel bars that Model No. AK100 fit all 10' (3,0 m) wide Arrow buildings. New concrete anchor system permits They install quickly and easily to anchoring any size Arrow building help organize space and create directly to a concrete slab.
- Page 7 THIS PAGE LEFT BLANK INTENTIONALLY...
- Page 8 THIS PAGE LEFT BLANK INTENTIONALLY...
- Page 9 OPTION 1: ARROW FLOOR FRAME KIT: (Order No. FB106-A or 68381-A) Arrow has the best base for your building in this simple kit. It keeps stored items above the ground. This kit should be used with one of the following: A.
- Page 10 Below are recommended ways of anchoring. Anchoring into Wood/Post: (Model No. AK4 or 60298) Arrow Anchoring Kit: Use 1/4" (6 mm) Wood Screws. There are 1/4" (6 mm) Recommended for use with any suggested base. dia. holes provided in the frames for proper anchoring.
- Page 11 Screw (266) 65109 67468 66646 #8-32 Acorn Nut (6) Peak Cap (2) 66045 Washer (279) (Packed with Screws) (Arrow Logo) Handle (2) (8 sheets of 40) 66183 7916 66382 Roof Trim Cap 66769 Roof Beam Bracket (4) Lower Door Guide (4) (2 right &...
-
Page 12: Parts List
Parts List Assembly Part Part Quantity Check Key No. Number Description in Carton List 6615 Rear Wall Angle 6617 Door Track Splice 10498 Horizontal Door Brace 6658 Gable Brace 7875 Roof Panel 7906 Right Gable 7907 Left Gable 8461 Ridge Cap 8466 Right Roof Panel 8467... - Page 13 Assembly by Key No.
- Page 14 ● ● ● ● ● 8941 Ramp (1) ● Parts Needed For ● Step 1 ● ● ● ● ● 9379 Front Floor Frame (2) Floor Frame Assemblies ● ● ● ● ● 9377 Rear Floor Frame (2) The front floor frame is made up of three pieces.
-
Page 15: Frame Assemblies
● Parts Needed For ● ● ● ● ● ● 6615 Rear Wall Angle (2) Step 2 ● ● ● ● ● 9924 Rear Wall Channel (2) Frame Assemblies The main frame pieces reinforce the Rear Wall Channel walls. These pieces will later be in- 94 5/8"... - Page 16 ● Parts Needed For ● ● ● ● ● ● 8474 Roof Beam (1) Step 3 ● ● ● ● ● 8476 Side Wall Angle (1) Roof Beam Assembly The roof beams join the two gables and support the roof panels. The main roof beam is made up of two pieces fastened together.
- Page 17 ● Parts Needed For ● ● ● ● ● ● 6617 Door Track Splice (1) Step 4 ● ● ● ● ● 9378 Door Track (2) Door Track Assembly NOTE: Door Track Splice (painted part) The door track assembly supports the sliding doors and reinforces the front wall.
- Page 18 ● ● ● ● ● Front Floor Assembly (1) ● Parts Needed For ● Step 5 ● ● ● ● ● 8946 Side Floor Frame (2) Floor Frame ● ● ● ● ● Rear Floor Assembly (1) RIGHT REAR 8946 STEP 8946 9377...
- Page 19 ● Parts Needed For ● ● ● ● ● ● 9381 Front Corner Panel (2) Step 6 ● ● ● ● ● 9385 Rear Corner Panel (2) Corners NOTE Wide The remainder of the building assembly Side requires many hours and more than one 9385 person.
- Page 20 ● ● ● ● ● Door Track Assembly (1) ● ● ● ● ● Rear Wall Angle Assembly (1) ● Parts Needed For ● Step 7 ● ● ● ● ● 8476 Side Wall Angle (2) Frames ● ● ● ● ● Rear Wall Channel Assembly (1) ●...
- Page 21 ● Parts Needed For ● ● ● ● ● ● 6515 Wall Panel (4) Step 8 ● ● ● ● ● 6243 Wall Panel (2) Wall Panels The wall panels come in two widths. STEP Each wall panel has a crimped rib on 6243 6243 one side.
- Page 22 ● Parts Needed For ● Step 9 ● ● ● ● ● 9369 Door Jamb (2) Door Jamb INSIDE OF BUILDING TOP VIEW (3) bolts Door Track Acorn Nut 9369 Bolt The door jambs reinforce the door Cross-Section Top View opening and provide an attractive Plug TOP VIEW...
- Page 23 ● Parts Needed For ● ● ● ● ● ● 7906 Right Gable (2) Step 10 ● ● ● ● ● 7907 Left Gable (2) Gable Assemblies ● ● ● ● ● 7916 Roof Beam Bracket (4) The gables go on top of the front and rear walls to support the roof beams.
- Page 24 ● ● ● ● ● Left Gable Assembly (2) ● Parts Needed For ● Step 11 ● ● ● ● ● Right Gable Assembly (2) Gables/Braces ● ● ● ● ● 6658 Gable Brace (2) Lift and fasten a right and left gable, under angle at corner, to the rear wall angle with screws.
- Page 25 ● Parts Needed For ● ● ● ● ● ● Main Roof Beam (1) Step 12 ● ● ● ● ● 8474 Roof Beam (2) Roof Beams Fasten the main roof beam to the gable brace of the front gable. STEP Fasten the other end of the main roof beam to the gable brace of the...
- Page 26 ● Parts Needed For ● Step 13 ● ● ● ● ● 8466 Right Roof Panel (1) Right Roof Panel STEP Installing the roof panels is best done with a step ladder. Begin installing roof panels at the back right corner of 8466 8467 the building.
- Page 27 ● Parts Needed For ● ● ● ● ● ● 8467 Left Roof Panel (2) Step 14 ● ● ● ● ● 7875 Roof Panel (4) Roof Assembly ● ● ● ● ● 8466 Right Roof Panel (1) STEP STEP 8467 Left Roof Panel Weather Stripping Tape Roll...
- Page 28 ● Parts Needed For ● Step 15 ● ● ● ● ● 8461 Ridge Cap (1) Ridge Cap Install the ridge cap on the com- pleted roof section using bolts and nuts. Do not fasten the ends of the ridge cap at this time. Fasten the lower end of the panels to the side wall angles using screws and washers.
- Page 29 ● Parts Needed For ● Step 16 ● ● ● ● ● 8482 Side Roof Trim (2) Roof Trim Attach the side roof trim to the lower end of the roof panels on each side of the building using screws at each panel overlap.
-
Page 30: Door Assembly
● Parts Needed For ● ● ● ● ● ● 10478 Right and Left Doors (2) Step 17 ● ● ● ● ● 10498 Horizontal Door Brace (4) Door Assembly ● ● ● ● ● 6278 Vertical Door Brace (2) The steps on this page tell how to assemble the right door. - Page 31 ● Parts Needed For ● ● ● ● ● ● Right Door Assembly (1) Step 18 ● ● ● ● ● Left Door Assembly (1) Door Installation & Adjustment Horizontal Door Brace Gable Door Track Door Slide From inside the building, put the bottom of the right door assembly (on your left when you are inside the STEP...
- Page 32 EH86-A EH86S LM86 ML86-A SA8662-A VL8662-A WL86-A Anchoring and Floor Frame Anchoring Anchor your building at this time. Floor Frame If you have purchased a Floor Frame Kit you need to install it at this time. SOME FACTS ABOUT RUST 1.
