7839 Front Column; 7831 Lintel; 7838 Side Top Angle - Arrow VT1210-A Owner's Manual & Assembly Instructions

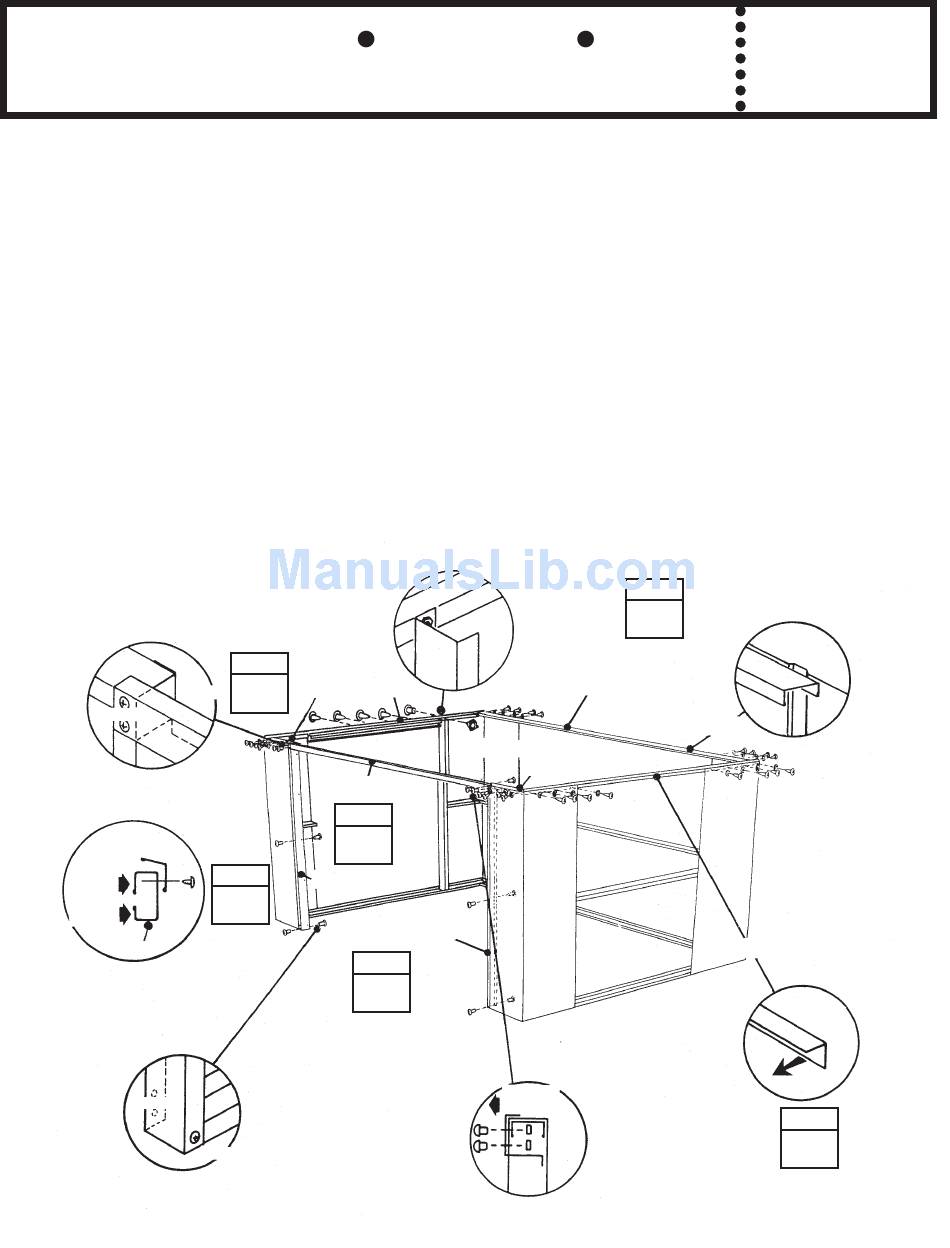

Step 9
BW21
The top frame pieces give rigidity to
the side walls and provide a surface
for attaching the gables which sup-
port the roof.
1
Fasten front columns to the bot-
tom and mid front frames with bolts
and nuts. Flange with 2 holes at each
end must be facing outside. Fold
front panel slightly away from column
to tighten bolts and nuts.
2
Fasten right and left front frame
to the top of front wall panels using 4
screws.
3
Position lintel across top of frames
and columns and fasten with bolts.
INSIDE
2 HOLES
SIDE TOP
ANGLE
LONG
FLANGE
SHORT
FLANGE
TRACK
2 HOLES
Parts Needed For
STEP
7834 7958
2
7831
STEP
3
STEP
7839
6
STEP
1
INSIDE
Frames 12x10
#10-32 Square Nut
7835
7839
#10-32x7/16" Bolt
FRONT OF
BUILDING

7839 Front Column (2)

7834 Right Front Frame (1)
7835 Left Front Frame (1)

7831 Lintel (1)

Rear Frame Assembly (1)

7838 Side Top Angle (2)

7958 Door Track (1)
4
Position rear frame assembly
across top of main wall panels and
fasten using screws.
5
Fasten side top angles to the
corner panels using screws. Fasten
support column to top angle using a
bolt.
6
Position door track to the inside of
side top angle, butted up against sup-
port column. With short flange of
track at bottom, fasten angle to track
using 4 screws at the 2nd, 3rd, 4th
and 5th hole in from support column.
See Step 12 for rear door installation.
STEP
4
8532
8531
7838
#8Ax5/16" Screw
FACING
INSIDE
STEP
5
