7824 Corner Wall Panel; 7825 Front Wall Panel; 7822 Main Wall Panel 7 - Arrow VT1210-A Owner's Manual & Assembly Instructions

Step 6
BW18
Each screw and bolt in the wall re-
quires a washer.
1

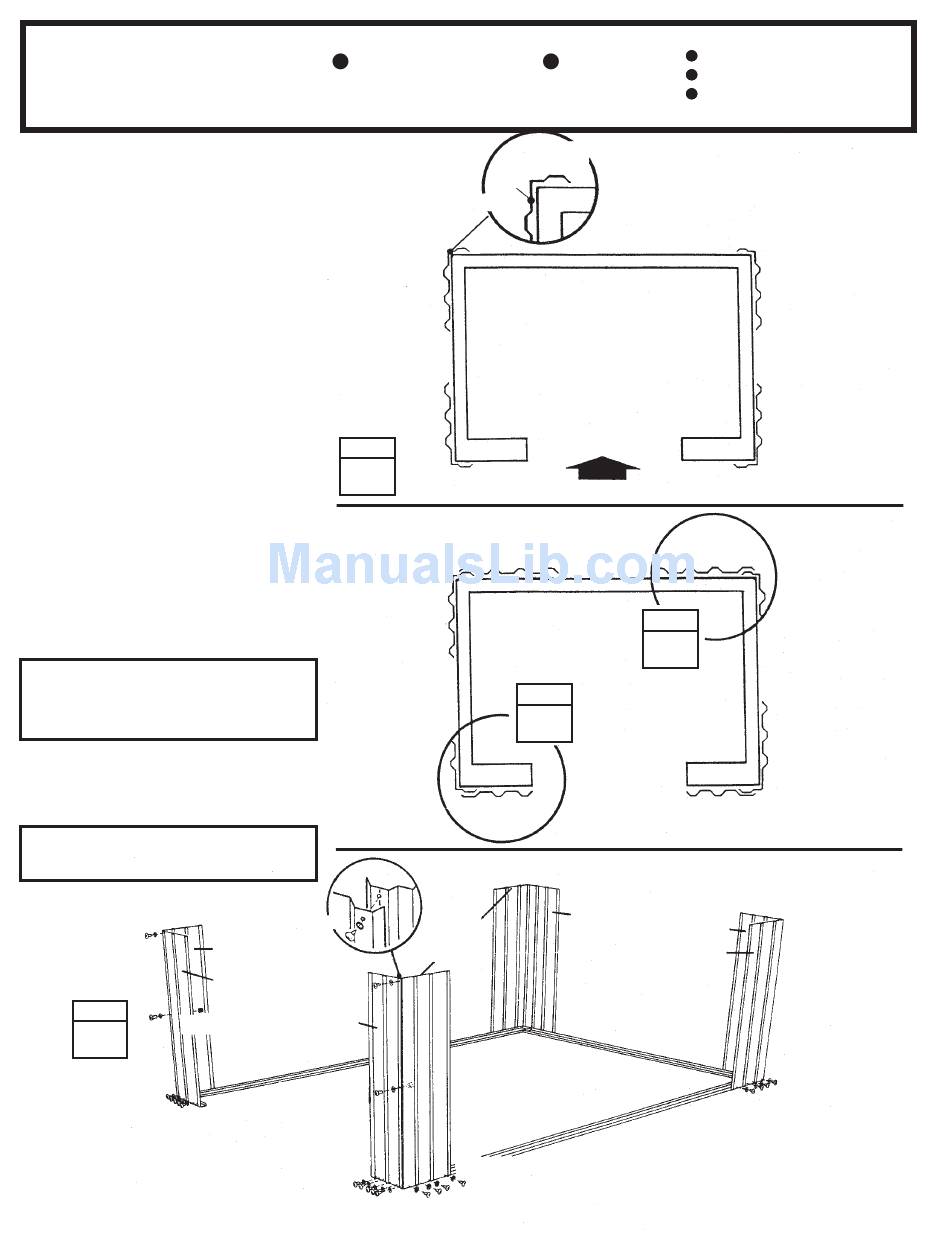

Install a corner wall panel at the
corner of the floor frame as shown.
The widest part of each corner panel
must be placed along the side of the
building for all 4 corners. Fasten the
corner panel to the floor frame with 4
screws.
Support the corner panel with a step
ladder until a wall panel is attached.
2
Attach the front wall panels to the
front corner panels, as shown.
3
Attach the main wall panels to the
rear corner panels, as shown.
NOTE
Be careful to install the correct
panel in each position as shown.
4
Double-check the part numbers of
the wall panels, before proceeding.
The floor frame must be square
and level or holes will not align.
#8Ax5/16" Screw
STEP
#10-32 Square Nut
4
18
Parts Needed For
Corners All Sizes
STEP
1
Washer
7824
7825
7825
#10-32x7/16" Bolt
Narrow
Side
7824
Wide Side
REAR
SIDE
TOP VIEW
7824
FRONT
7822
STEP
2
7825
7822
7824
7824
Washer

7824 Corner Wall Panel (4)

7825 Front Wall Panel (2)

7822 Main Wall Panel (2)
7824
SIDE
7824
7822
STEP
3
7825
7822
7824
