7946 Door Jamb; 7948 Door Wall Brace - Arrow VT1210-A Owner's Manual & Assembly Instructions

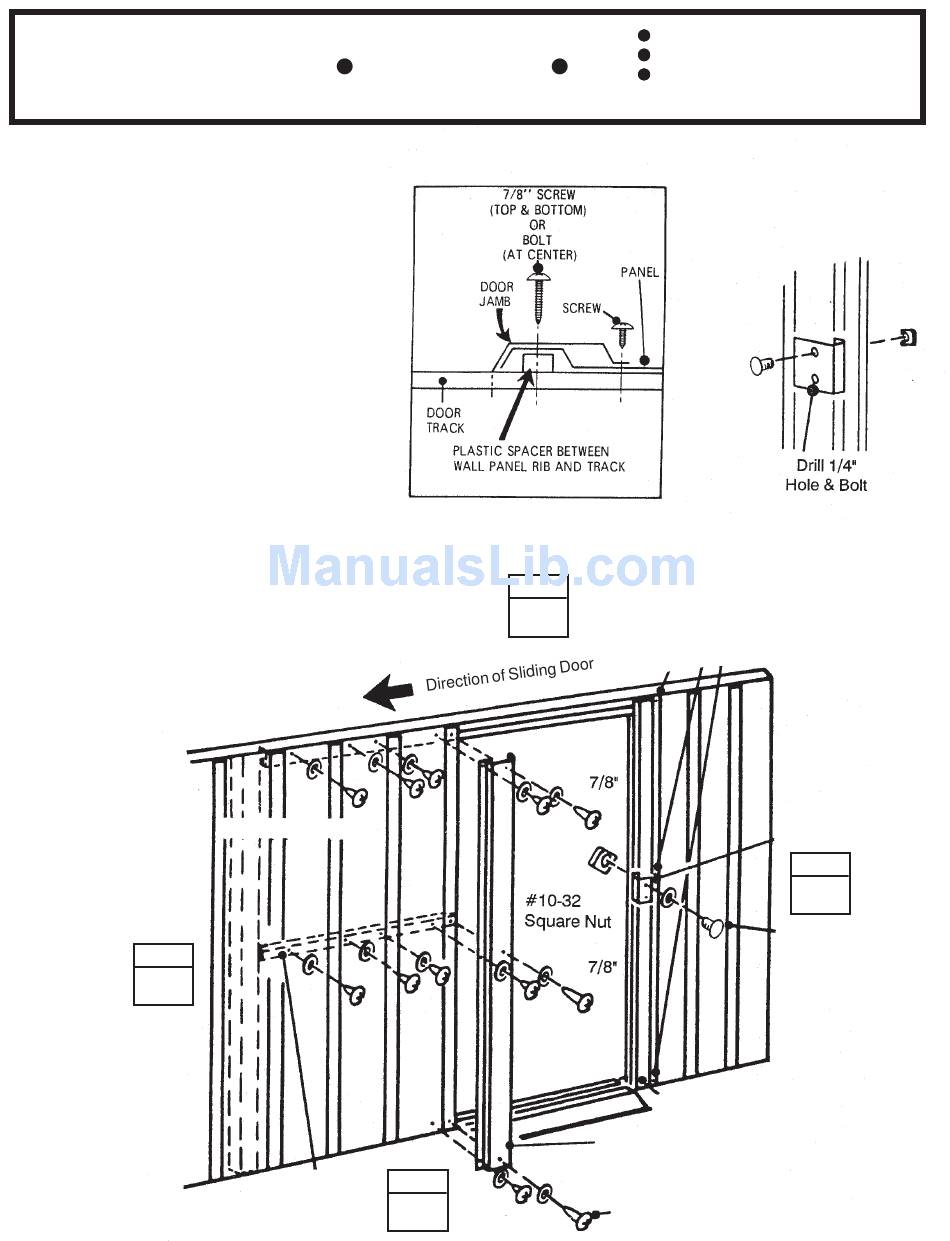

Step 13
BW25
The door jambs reinforce the door
opening and provide an attractive
trim. Follow these steps for both door
jambs.
1
Place door wall brace behind wall
panel in the direction of sliding door.
Fasten panel to brace using screws.
2
Overlap rib of wall panel with a
door jamb and fasten at top to angle,
middle to brace, and bottom to frame
using #6Ax7/8" screws and spacers.
Position spacer inside wall panel rib.
3
Fasten outer flange of door jamb to
wall panel using 3 screws.
4
Secure the door handle lock
bracket to the opposite door jamb at
the middle hole with a (no slot) bolt.
Inside of
Building
STEP
1
Parts Needed For
Side or Rear Entry Door All Sizes
#8Ax5/16" Screw
STEP
7948
STEP
2
3

7946 Door Jamb (2)

7948 Door Wall Brace (1)

7972 Door Handle Lock Bracket (1)
Remove and reinset
screws from panel
7946
7946
#6Ax7/8" Screw
7972
STEP
4
#10-32x7/16"
(No Slot) Bolt
