Ridge Cap. - Arrow VT1210-A Owner's Manual & Assembly Instructions

Step 22
BW33
1
Position middle roof panel over-
lapping rib of left corner roof panel.
Fasten overlap at center of roof panel
rib using a bolt and nut. Fasten to roof
beams as before using screws.
2
Cut the weather stripping tape
into 8 strips, each strip being about 2"
(5cm) long.
3
Cover the joint at the peak with
weather stripping tape. Unroll the tape
and press it down over the opening at
the ridge as you install each roof
panel. Do not cut the tape at this time.
4
Install a middle roof panel on the
left side of building. At the top roof
beam end of panels, fasten 1st roof
panel rib overlaps with a bolt and nut.
Press 2 strips over the bolt heads.
Save the other strips for the 2nd, 4th and
5th overlaps. Remember, the crimped
rib is always overlapped by wide rib of
adjacent panel. Repeat procedure with 2
more middle roof panels working side to
side.

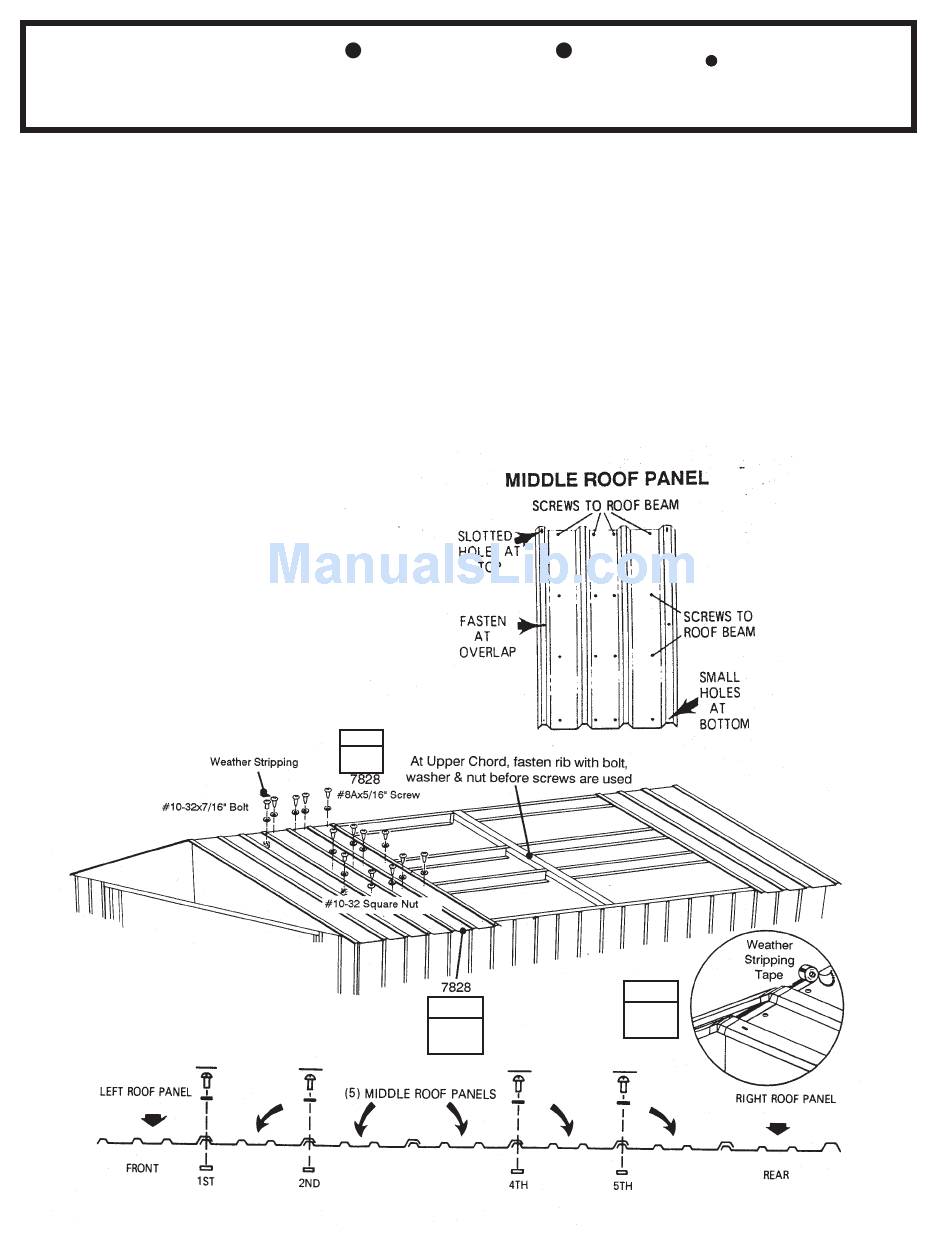

Parts Needed For
Roof Panels 12x17, 12x24 & 12x31
STEP
4
STEP
1
7828 Middle Roof Panel
(see below)
IF YOU ARE BUILDING A 12x24
Cut 12 2" (5cm) strips. There are 3 extra
middle roof panels on each side of building.
Fasten 7th and 8th panel overlap and apply
strip over head of bolt, along with ridge caps.
IF YOU ARE BUILDING A 12x31
Cut 16 2" (5cm) strips. There are 6 extra
middle roof panels on each side of building.
Fasten 7th, 8th, 10th & 11th panel overlap
and apply strip over head of bolt, along with
ridge caps.
