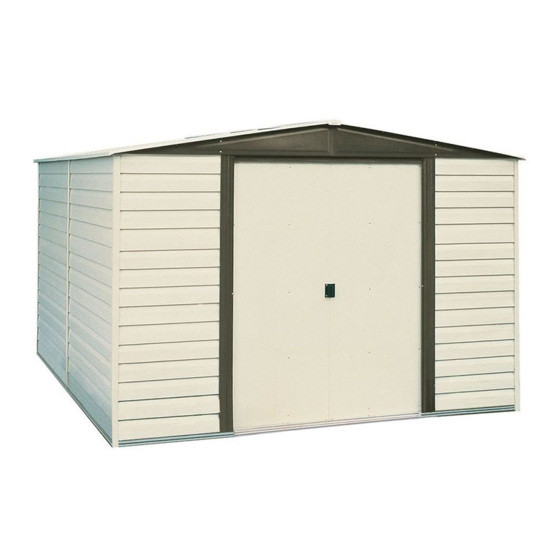

Owner's Manual & Assembly Instructions
W1
Model No. VD86
705340805
BUILDING DIMENSIONS
*Approx.
Foundation
Size
Size
8' x 6'
97 1/2" x 68 3/4"
2,4m x 1,7m 248cm x 175cm
VR86
* Size rounded off to the nearest foot
Storage Area
Sq. Ft. Cu. Ft.
43
271
4,0m
2
7,7m
3
697.68616
Exterior Dimensions
(Roof Edge to Roof Edge)
Width
Depth
Height
99 3/4"
71 1/4"
79 1/8"
253cm
181cm
201cm
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
WHEN HANDLING METAL PARTS.
Interior Dimensions
(Wall to Wall)
Width
Depth
Height
94 3/4"
66"
241cm
168cm
Door
Opening
Width Height
77 7/8" 43 1/2" 69 1/4"
198cm
110cm 176cm

Advertisement

loading
Need help?

Need help?

Do you have a question about the VD86 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Arrow VD86 Series

  • Page 1 Owner's Manual & Assembly Instructions Model No. VD86 VR86 697.68616 CAUTION: SOME PARTS HAVE SHARP EDGES. CARE MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ 705340805 SAFETY INFORMATION PROVIDED IN THIS MANUAL BEFORE BEGINNING CONSTRUCTION.
  • Page 2 A foundation is also necessary as a base in order to construct a square and level building. Anchoring and foundation materials are not included with your building. We recommend the combined use of an Arrow Floor Foundation Kit and an Arrow Anchoring Kit as an effective method of securing your building to the ground (Available by mail order or at your local dealer) or you may construct the foundation and anchoring system of your choice.
  • Page 3: Tools And Materials

    PLAN AHEAD..Watch the Weather: Be sure the day you select to install your building is dry and calm. Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground. Teamwork: Whenever possible, two or more people should work together to assemble your building.
  • Page 4 SAFETY FIRST..Safety precautions are important to follow throughout the construction of your building. •Care must be taken when handling various •Practice caution with the tools being used in the pieces of your building since some contain assembly of this building. Be familiar with the sharp edges.
  • Page 5 Keep roof clear of leaves and snow with long handled, soft-bristled broom. Heavy amounts of snow on roof can damage building making it unsafe to enter. In snow country, Roof Strengthening Kits are available for most Arrow Buildings for added protection against heavy snow accumulation.
  • Page 6 ATTIC KIT / WORKBENCH KIT FLOOR FOUNDATION KITS Heavy-duty galvanized steel bars that fit all 10' wide Arrow buildings. They install quickly and easily to help organize space and create more useable space as an attic or workbench.
  • Page 7 THIS PAGE LEFT BLANK INTENTIONALLY...
  • Page 8 THIS PAGE LEFT BLANK INTENTIONALLY...
  • Page 9 OPTION 1: ARROW FLOOR FOUNDATION KIT: (Order No. FB106-A or 68381-A) Arrow has the best base for your building in this simple kit. It keeps stored items above the ground. This foundation should be used with one of the following: A.
  • Page 10 It is important that the entire floor frame be anchored after the building is erected. Below are recommended ways of anchoring. Anchoring into Wood/Post: Arrow Anchoring Kit: (Model No. AK4 or 60298) Use 1/4" Wood Screws. There are 1/4" (0,63cm) dia.
  • Page 11 Handle (2) Weather Stripping (1) (Packed with Screws) (5 sheets of 40) 66183 66242 66382 Roof Trim Cap 67468 (Arrow Logo) Door Slide (4) Lower Door Guide (4) (2 right & 2 left) Peak Cap (2) 65958 6228 65020 7916 #8-32x7/8"...
  • Page 12: Parts List

    Parts List Assembly Part Part Quantity Check Key No. Number Description in Carton List 8941 Ramp 9379 Front Floor Frame 9377 Rear Floor Frame 9336 Right Rear Wall Angle 9378 Door Track 6617 Door Track Splice 9337 Left Rear Wall Angle 7907 Left Gable 7906...
  • Page 13 Assembly by Key No.
  • Page 14 8941 Ramp (1) Parts Needed For Step 1 9379 Front Floor Frame (2) Floor Frame Assemblies 9377 Rear Floor Frame (2) The front floor frame is made up of three pieces. The rear floor frame is 9379 made up of two pieces. The holes in these pieces will align when the pieces are positioned with correct 8941...
  • Page 15: Frame Assembly

    Parts Needed For 9336 Right Rear Wall Angle (1) Step 2 9337 Left Rear Wall Angle (1) Frame Assembly The main frame pieces reinforce the walls. This piece will later be installed at the top edge of the rear wall. Pro- ceed as follows: Overlap the right and left rear wall angle pieces as shown in the figure...
  • Page 16 Parts Needed For 8474 Roof Beam (1) Step 3 Roof Beam Assembly 8476 Side Wall Angle (1) The roof beams join the two gables and support the roof panels. The main roof beam is made up of two pieces fastened together. Place the side wall angle, back- to-back, with a roof beam and fasten together using ten screws.
  • Page 17 Parts Needed For 6617 Door Track Splice (1) Step 4 Door Track Assembly 9378 Door Track (2) NOTE: Door Track Splice (painted part) The door track assembly supports the sliding doors and reinforces the front wall. It is made up of three pieces. 6617 Using the door track splice, (painted), join the door track...
  • Page 18 Front Floor Assembly (1) Parts Needed For Step 5 8946 Side Floor Frame (2) Floor Frame Rear Floor Assembly (1) RIGHT REAR 8946 STEP 8946 9377 8946 Assemble the four corners of the floor frame using two screws at each RIGHT corner as shown.
  • Page 19 5288 Corner Post (4) Parts Needed For Door Track Assembly (1) Step 6 Rear Wall Angle Assembly (1) Posts/Top Frames 9342 Side Wall Angle (2) NOTE The remainder of the building assembly requires many hours and more than one person. Do not continue beyond this point if you do not have enough time to com- plete the assembly today.
  • Page 20 Parts Needed For Step 7 5287 Splice Post (1) 7311 Door Jamb (2) Splice Post/Door Jamb STEP The door jambs reinforce the door opening and provide an attractive 5287 trim. The splice post supports the rear wall. Position splice post at the center of the rear wall and fasten using 4 bolts and nuts into rear wall angle and 2 screws into rear floor frame.
  • Page 21 Parts Needed For Step 8 9344 Siding Stud (6) Studs The studs provide a surface for at- taching the siding panels. Following dimensions, measuring from the ends of angles, place a stud between each corner and splice post at the rear of building and 2 studs between corner posts at the sides.
  • Page 22: Side Siding

    Parts Needed For Step 9 8719 Side Siding (6) Side Siding Each screw in the wall requires a washer. Slide side siding into channels of corner posts, flat edge upward, bottom edge down resting on floor frame. Always follow this pattern. STEP Fasten bottom edge and tab of stud to floor frame using screws.
  • Page 23 Parts Needed For Step 10 9345 Rear Siding (6) Rear/Front Siding 9746 Front Siding (6) STEP STEP Slide rear siding into channel of corner and splice posts fastening to Fasten Top Center of rear frame as shown in previous step Last Siding to Stud 9345 9345...
  • Page 24 Parts Needed For 7906 Right Gable (2) Step 11 7907 Left Gable (2) Gable Assemblies 7916 Roof Beam Bracket (4) The gables go on top of the front and rear walls to support the roof beams. NOTE The gables are packed nested together and might be mistaken as one piece.
  • Page 25 Left Gable Assemblies (2) Parts Needed For Step 12 Right Gable Assemblies (2) Gables/Braces 6658 Gable Brace (2) Lift and fasten a right and left gable, under angle at corner, to the rear wall angle with screws. Hint: On the rear gable, use a bolt and nut at the overlapping rear wall angle.
  • Page 26 Parts Needed For Step 13 Main Roof Beam (1) Roof Beams 8474 Roof Beam (2) Fasten the main roof beam to the STEP gable brace of the front gable. Fasten the other end of the main 8474 Roof Beam roof beam to the gable brace of the rear gable.
  • Page 27 Parts Needed For Step 14 8466 Right Roof Panel (1) Right Roof Panel STEP Installing the roof panels is best done with a step ladder. Begin installing roof panels at the back right corner of 8466 8467 the building. Each screw and bolt in the roof requires a washer.
  • Page 28 8467 Left Roof Panel (2) Parts Needed For Step 15 7875 Roof Panel (4) Roof Assembly 8466 Right Roof Panel (1) STEP STEP 8467 Left Roof Panel Weather Stripping Tape Roll Install a left roof panel at the left rear and right front corner of the roof. 8466 Right Install a right roof panel at the left Roof Panel...
  • Page 29 Parts Needed For Step 16 8461 Ridge Cap (1) 8482 Side Roof Trim (2) Ridge Cap/Roof Trim Install the ridge cap on the com- pleted roof section using bolts. Do STEP not fasten the ends of the ridge cap 8461 until instructed to do so.
  • Page 30: Door Assembly

    67725 Foam Board (2) Parts Needed For 9348 Right Door (1) Step 17 9349 Left Door (1) Door Assembly 8644 Horizontal Door Brace (4) 8641 Vertical Door Brace (2) The steps on this page tell how to assemble the left door. You will per- form exactly the same procedures for the right door.
  • Page 31 Parts Needed For Right Door Assembly (1) Step 18 Door Installation & Adjustment Left Door Assembly (1) Horizontal Door Brace Gable Door Track Door Slide From inside the building, put the bottom of the right door assembly (on your left when you are inside the STEP STEP building) behind door jamb into the...
  • Page 32 VD86 VR86 697.68616 SOME FACTS ABOUT RUST 1. Avoid nicking or scraping the coating surface, Rusting is a natural oxidizing process that occurs inside and out. when bare metal is exposed to moisture. Problem areas include screw holes, unfinished edges, or 2.
