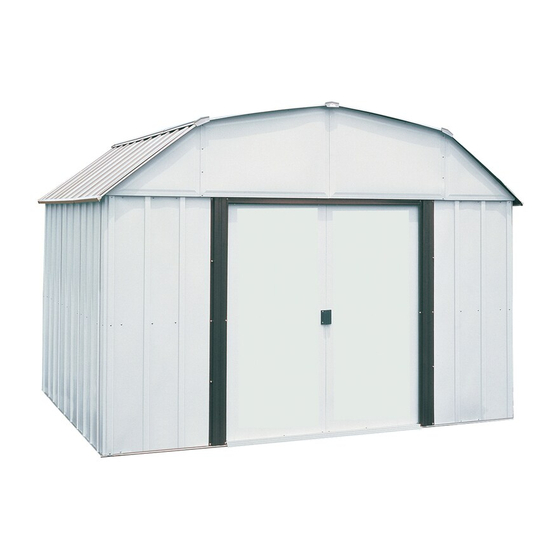

Arrow YT108M Series Owner's Manual & Assembly Instructions

Hide thumbs

page of 32

/ 32
Bookmarks

Quick Links

Download this manual

Owner's Manual & Assembly Instructions

D01

Model No.CO108-A

LX108-A

WV108-A

697.68603

697.68789

709040106

BUILDING DIMENSIONS

*Approx.

Foundation

Size

10' x 8'

121" x 92 3/4"

3,0m x 2,3m 307cm x 236cm

* Size rounded off to the nearest foot

Storage Area

Sq. Ft. Cu. Ft.

487

6,9m

13,8m

313cm

DK108

RV108

YT108-A

697.68629

Exterior Dimensions

(Roof Edge to Roof Edge)

Width

Depth

Height

123 1/4"

95 1/4"

87 7/8"

242cm

223cm

LB108-B

VS108-A

YT108M

697.68729-A

CAUTION: SOME PARTS HAVE SHARP EDGES. CARE

MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES

TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ

SAFETY INFORMATION PROVIDED IN THIS MANUAL

BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES

WHEN HANDLING METAL PARTS.

Interior Dimensions

(Wall to Wall)

Width

Depth

118 1/4"

90"

300cm

229cm

220cm

Door

Opening

Height Width Height

86 5/8" 55 1/2"

60"

141cm 152cm

Need help?

Do you have a question about the YT108M Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Arrow YT108M Series

Page 1 Owner's Manual & Assembly Instructions Model No.CO108-A DK108 LB108-B LX108-A RV108 VS108-A WV108-A YT108-A YT108M 697.68603 697.68629 697.68729-A 697.68789 CAUTION: SOME PARTS HAVE SHARP EDGES. CARE MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ 709040106 SAFETY INFORMATION PROVIDED IN THIS MANUAL BEFORE BEGINNING CONSTRUCTION.
Page 2 A foundation is also necessary as a base in order to construct a square and level building. Anchoring and foundation materials are not included with your building. We recommend the combined use of an Arrow Floor Foundation Kit and an Arrow Anchoring Kit as an effective method of securing your building to the ground (Available by mail order or at your local dealer) or you may construct the foundation and anchoring system of your choice.
Page 3 PLAN AHEAD..Watch the Weather: Be sure the day you select to install your building is dry and calm. Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground. Teamwork: Whenever possible, two or more people should work together to assemble your building.
Page 4 SAFETY FIRST..Safety precautions are important to follow throughout the construction of your building. •Care must be taken when handling various •Practice caution with the tools being used in the pieces of your building since some contain assembly of this building. Be familiar with the sharp edges.
Page 5 Keep roof clear of leaves and snow with long handled, soft-bristled broom. Heavy amounts of snow on roof can damage building making it unsafe to enter. In snow country, Roof Strengthening Kits are available for most Arrow Buildings for added protection against heavy snow accumulation.
Page 6 ATTIC KIT / WORKBENCH KIT FLOOR FOUNDATION KITS Heavy-duty galvanized steel bars that fit all 10' wide Arrow buildings. They install quickly and easily to help organize space and create more useable space as an attic or workbench.
Page 7 THIS PAGE LEFT BLANK INTENTIONALLY...
Page 8 THIS PAGE LEFT BLANK INTENTIONALLY...
Page 9 OPTION 1: ARROW FLOOR FOUNDATION KIT: (Order No. FB109-A or 68385-A) Arrow has the best base for your building in this simple kit. It keeps stored items above the ground. This foundation should be used with one of the following: A.
Page 10 It is important that the entire floor frame be anchored after the building is erected. Below are recommended ways of anchoring. Anchoring into Wood/Post: Arrow Anchoring Kit: (Model No. AK4 or 60298) Use 1/4" Wood Screws. There are 1/4" (0,63cm) dia.
Page 11 65109 67468 66646 #8-32 Acorn Nut (4) Peak Cap (1) 66045 Washer (403) Handle (2) (Packed with Screws) (Arrow Logo) (11 sheets of 40) 66183 66242 66382 Roof Trim Cap 66192 Door Slide (4) Lower Door Guide (4) (2 right & 2 left)
Page 12 Parts List Assembly Part Part Quantity Check Key No. Number Description in Carton List 8934 Ramp 5986 Rear Wall Angle 9365 Front Wall Channel 6085 Roof Beam Bracket 6108 Large Right Gable 6109 Large Left Gable 6114 Small Right Gable 6115 Small Left Gable 8470...
Page 13 Assembly by Key No.
Page 14 8934 Ramp (1) Parts Needed For 9367 Front Floor Frame (2) Step 1 8936 Rear Floor Frame (2) Floor Frame Assemblies 8937 Side Floor Frame (4) The front floor frame is made up of three pieces. The side floor frames 9367 and the rear floor frame are made up of two pieces.
Page 15 5986 Rear Wall Angle (2) Parts Needed For 9917 Rear Wall Channel (2) Step 2 9922 Side Wall Channel (4) Frame Assemblies 8841 Side Wall Angle (4) The main frame pieces reinforce the walls. These pieces will later be in- Rear Wall Channel 9917 stalled in the center and at the top...
Page 16 Parts Needed For 8834 Right Roof Beam (4) Step 3 Roof Beam Assemblies 8835 Left Roof Beam (4) The roof beams join the two gables and support the roof panels. The main roof beam is made up of four pieces Left overlapped back to back at the cen- 8835...
Page 17 Parts Needed For 6403 Door Track Splice (1) Step 4 Door Track Assembly 9366 Door Track (2) NOTE: Door Track Splice (painted part) The door track assembly supports the sliding doors and reinforces the front wall. It is made up of three pieces. 6403 Using the door track splice, (painted), join the door track...
Page 18 Front Floor Assembly (1) Parts Needed For Step 5 Side Floor Assembly (2) Floor Frame Rear Floor Assembly (1) RIGHT REAR 8937 STEP Assemble the four corners of the 8936 floor frame using two screws at each corner as shown. At the front corners fasten bolts through...
Page 19 Parts Needed For 6515 Wall Panel (2) Step 6 9373 Front Wall Panel (2) Corners 8470 Corner Panel (4) NOTE Narrow The remainder of the building assembly Side 8470 requires many hours and more than one person. Do not continue beyond this point Wide Side if you do not have enough time to com- REAR...
Page 20 Door Track Assembly (1) Rear Wall Angle Assembly (1) Parts Needed For Step 7 Side Wall Angle Assemblies (2) Frames Rear Wall Channel Assembly (1) Side Wall Channel Assemblies (2) 5986 The main frame pieces give rigidity to the side walls and provide a surface Wall Angles for attaching the gables which sup- Must Face...
Page 21 Parts Needed For Step 8 7332 Wall Panel (4) Wall Panels 6515 Wall Panel (4) The wall panels come in two widths. STEP Each wall panel has a crimped rib on 6515 6515 one side. The crimped rib should go under the rib of the panel that follows 7332 6515...
Page 22 Parts Needed For Step 9 9369 Door Jamb (2) Front Channel/Door Jamb 9365 Front Wall Channel (2) The door jambs reinforce the door opening and provide an attractive 9365 trim. Follow these steps for both door jambs. Fasten the front wall channels STEP in their positions between the end of the side wall channel and the cor-...
Page 23 6108 Large Right Gable (2) 6109 Large Left Gable (2) Parts Needed For Step 10 6114 Small Right Gable (2) Gable Assemblies 6115 Small Left Gable (2) 6085 Roof Beam Bracket (4) The gables go on top of the front and 67521 Edge Trim (Plastic Piece) rear walls to support the roof beams.
Page 24 Left Gable Assemblies (2) Parts Needed For Right Gable Assemblies (2) Step 11 Single Roof Beam (2) Gables/Roof Beams 6636 Gable Brace (2) Lift and fasten a right and left gable, under angle at corner, to the door track and rear wall angle with screws.
Page 25 Parts Needed For Step 12 Main Roof Beam (1) Roof Beam//Braces 6227 Roof Beam Brace (2) STEP Fasten the track supports to the front gable assembly only, as shown. Wrap the weather stripping tape around the two joined edges of the large left and right gables.
Page 26 Parts Needed For Step 13 8462 Right Roof Panel (1) Right Roof Panel AY26 STEP Installing the roof panels is best done with a step ladder. Begin installing 8462 8463 roof panels at the back right corner of the building. Each screw and bolt in the roof requires a washer.
Page 27 8462 Right Roof Panel (1) Parts Needed For Step 14 8463 Left Roof Panel (2) 5209 Roof Panel (2) Roof Assembly 6538 Roof Panel (2) STEP 8463 Left Roof Panel STEP Install a left roof panel at the left rear and right front corner of the roof. 5209 Roof Panel Weather Stripping Tape Roll...
Page 28 8840 Ridge Cap (3) Parts Needed For Step 15 5209 Roof Panel (2) Ridge Caps & Panels 8486 Ridge Cap (3) Install the 3 ridge caps on the 8840 completed roof section using bolts 8840 and nuts. Fasten roof panel overlaps 8840 not used for ridge cap.
Page 29 Inside of Fasten the roof trim caps to the Roof Trim Cap side trim using a screw. Fasten the roof panel ribs, peak STEP caps and ridge caps together using bolts and nuts. Arrow Logo Goes on Front of Building...
Page 30 3719 Door Handle Brace (2) Parts Needed For 8538 Right Door (1) Step 17 8539 Left Door (1) Door Assembly 6264 Horizontal Door Brace (4) 6278 Vertical Door Brace (2) The steps on this page tell how to assemble the right door. You will perform exactly the same procedures for the left door.
Page 31 Parts Needed For Right Door Assembly (1) Step 18 Door Installation & Adjustment Left Door Assembly (1) Horizontal Door Brace Gable Door Track Door Slide From inside the building, put the bottom of the right door assembly (on your left when you are inside the STEP STEP building) behind door jamb into the...
Page 32 CO108-A DK108 LB108-B LX108-A RV108 VS108-A WV108-A YT108-A YT108M 697.68603 697.68629 697.68729-A 697.68789 SOME FACTS ABOUT RUST 1. Avoid nicking or scraping the coating surface, Rusting is a natural oxidizing process that occurs inside and out. when bare metal is exposed to moisture. Problem areas include screw holes, unfinished edges, or 2.
