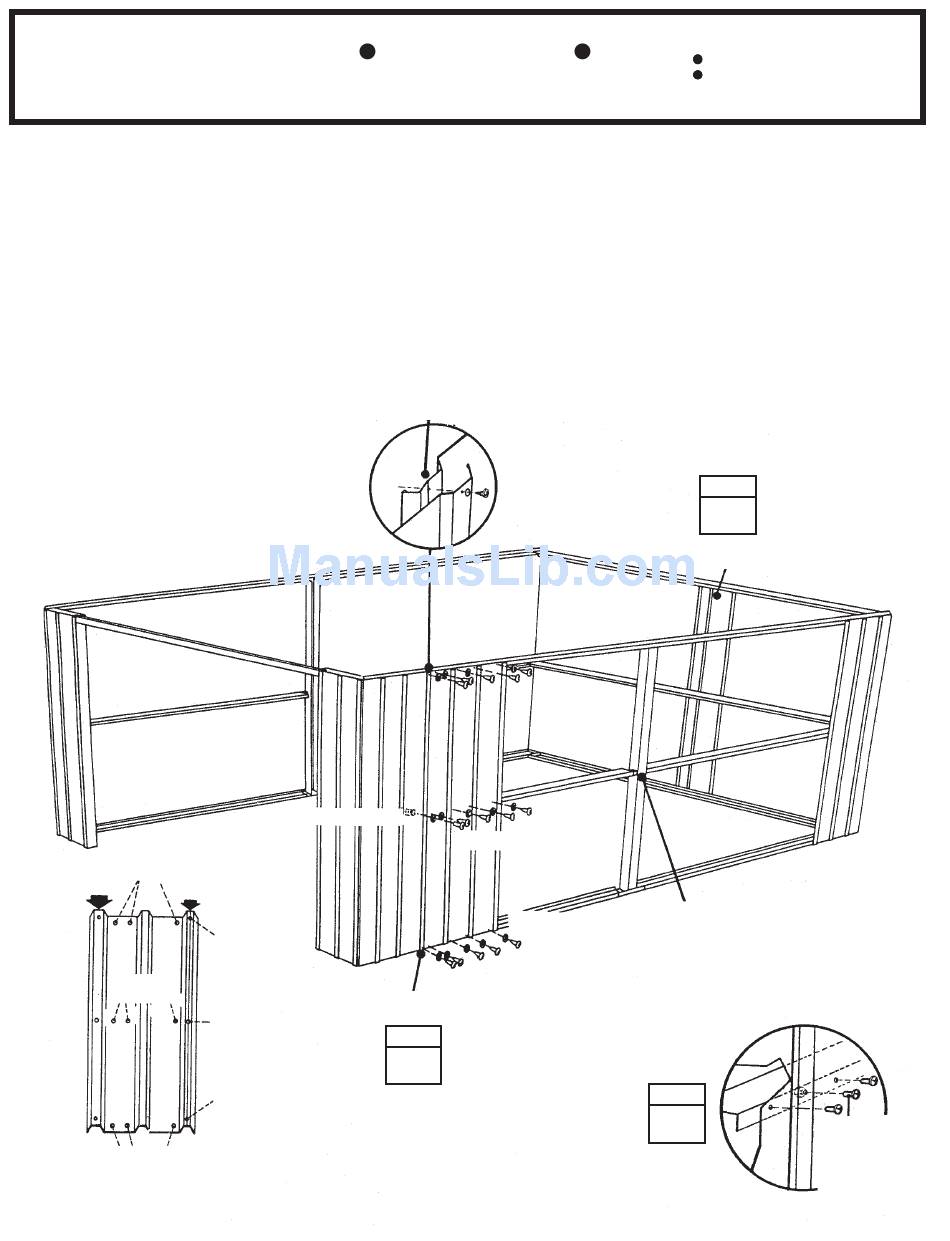

Step 11
BW23
Each wall panel has a crimped rib on
1 side. The crimped rib should go
under the rib of the panel that follows
it. Leave out 1 main wall panel at the
side or rear entry door location.
1
Fasten the main wall panels at the
top and bottom with screws.
2
Fasten center of each panel to the
mid frames with screws. Fasten over-
lapping ribs using 2 screws and a
bolt with nut at the center.
3
At the rear center of the building,
fasten the medium wall panel in the
same manner.
SCREWS TO FRAME
WIDE RIB
NARROW RIB
SCREWS TO
FRAME
SCREWS TO FRAME

MEDIUM WALL PANEL

Parts Needed For
Walls All Sizes
#10-32 Square Nut
(HAS BEAD)
SCREW
TO RIB
BOLT TO
PANEL
SCREW
TO RIB
Crimped Rib
Underneath
#10-32x7/16" Screw
Washer
#8Ax5/16" Screw
7822
STEP
1
7822 Main Wall Panel (see below)
7823 Medium Wall Panel (1)
IF YOU ARE BUILDING A 12x24
Install 3 additional main wall panels on
each side of the building.
IF YOU ARE BUILDING A 12x31
Install 6 additional main wall panels on
each side of the building.
STEP
3
7823
At the truss columns, fasten rib with bolt,
washer & nut before screws are installed.
Detail Showing
Center of Panel Screwed
to Side Frame
STEP
2
Bolt and nut
does not go
thru side frame
at overlap
