Front Wall Panel - Arrow COMMANDER SERIES Owner's Manual And Assembly Manual

Step 2: Continued
You will need for this page:
SB
(QTY: 12)
(QTY: 8)
SB
SB
SB
SB
Left Front Wall Assembly
IMPORTANT: A minimum
of two (2) people should
be used at all times when
handling or maneuvering
the Front Wall Assembly.
When installing the Front
Wall Assembly
building, two people should
hold the Assembly in place
until it is secure. Failure
to do so could result in
bending the Front Frame
and Fascia pieces.
Use washers on all fasteners
used on painted parts.
10618
SS
Front Wall
Panel
SB
SB
SB
Right Front Wall Assembly
Corner Panel
SS
in the
SS
SS
Assemblies from previous page:
2
• Left Front Wall Assembly
• Right Front Wall Assembly
• Door Header Assembly
Reused Parts:
• Corner Panel (2)

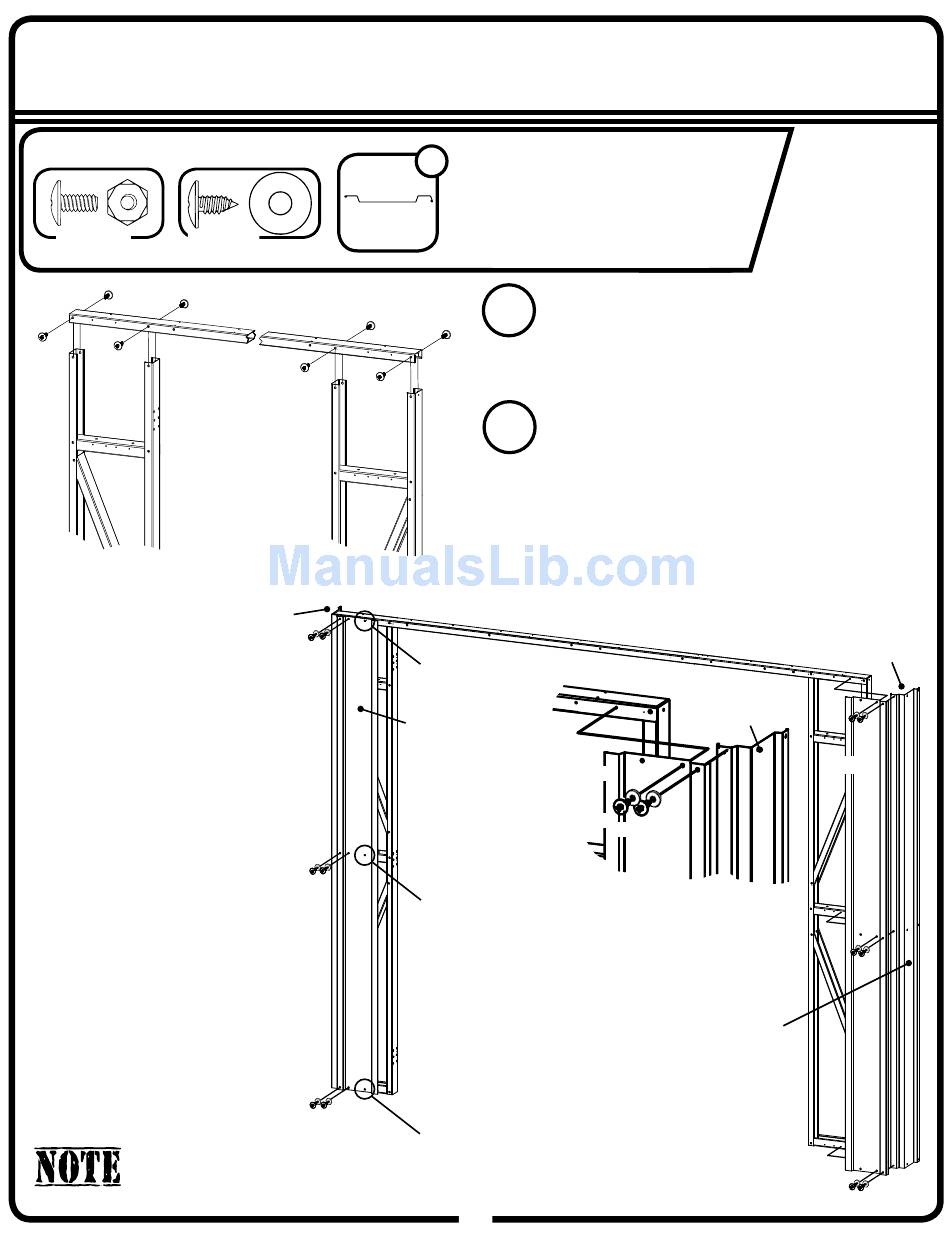

Slide the Door Header Assembly down
5
onto the Front Wall Assemblies as shown
SB
and secure with Small Bolts and Nuts.
Once these pieces are joined, take care when
moving them as the Door Header may bend.
Using Small Screws, attach a Front Wall
6
Panel and Corner Panel to each corner of
the Front Wall as shown. Reuse Corner
Panels from original unit. The Corner Panel
should only be secured to the Front Wall Panel
where the Panels overlap. Do not secure the
Corner Panel to the Front Wall itself, this will be
done in Step 3. Also, leave the holes closest to the
Door open in the Front Wall Panel. These will be
used to attach the Door Jambs in Step 3.
LEAVE HOLE OPEN
10618
10618
LEAVE HOLE OPEN
LEAVE HOLES OPEN
ALONG SIDE OF WALL
LEAVE HOLE OPEN
11
Corner Panel
SS
SS
11AG
Corner Panel
10618
