Vendo VUE 30 User Manual page 138

WORK CONTENTS : Set the Y Stops.
Note: .

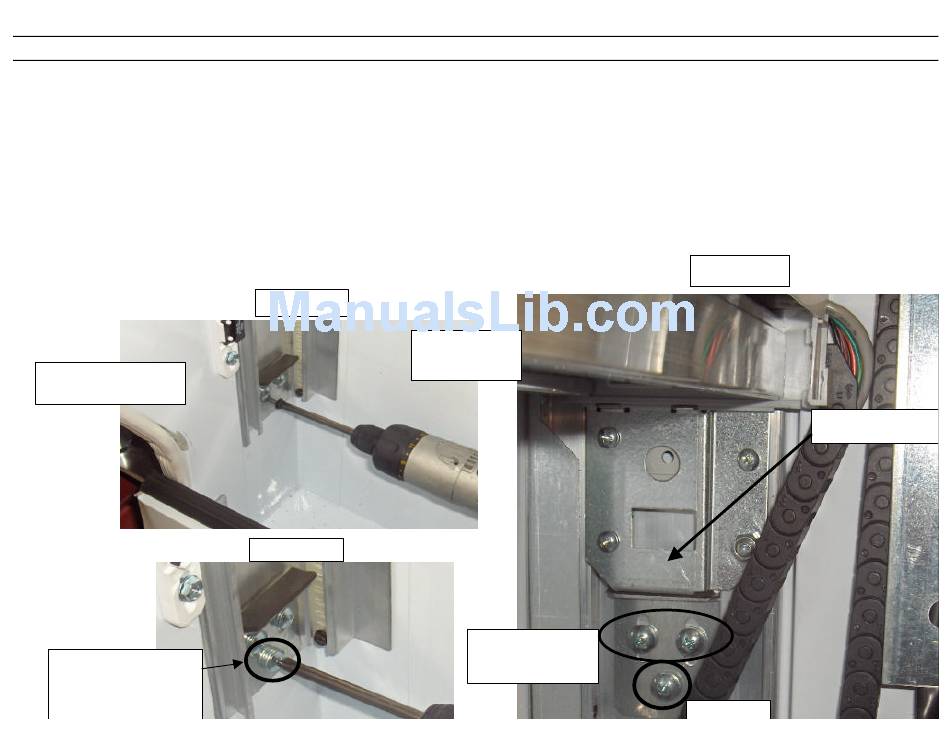

STEPS: (1) With all the adjustments made it is time to tap and insert the Y Stop set screws.
(2) Raise the X-Rail assembly to access the Y Stops, tap the set screw holes for
both Y stop brackets.
(3) Insert the screw set (screw and 2 washers) in both Y Stops as shown in
Step 3 and 4.
(4) Lower the X Rail assembly to the stops, connect the Y Motor connector.
(5) Reset the power by unplugging then plugging in the power supply,
shut the door and latch it.
(6) Proceed to vending test or next test in sequence.
tap the hole.
Screw p/n
V801489, self
insert screw with
2 washers. Screw
p/n V802212,
washers p/n
V801455.
GFV Cabinet, set Y home adjustment.
Do not run the screw into the door liner.
Machine should run Discovery 2.
Step 2
View of Y-Rail
stop, latch
Step 3
Y Rail stop,
hinge side
adjust
Step 4
Carriage
assembly.
set
