SVE DL6 - SVE DL9 - SVE DV6 - SVE DV9
SandenVendo Europe S.p.A.
Regione Cavallino, 2
15030 Coniolo (AL) - ITALIA
Tel.: +39 0142 335111 – Fax: +39 0142 562348
e-mail:
marketing@sandenvendo.it
website:
www.sandenvendo.com
PROGRAMMING MANUAL
BOARD SVE01
VENDING MACHINE
G-Drink Design Line
Revision: 03
Date: 9/01/2014
Code: 412486
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vendo SVE DL6
Summary of Contents for Vendo SVE DL6

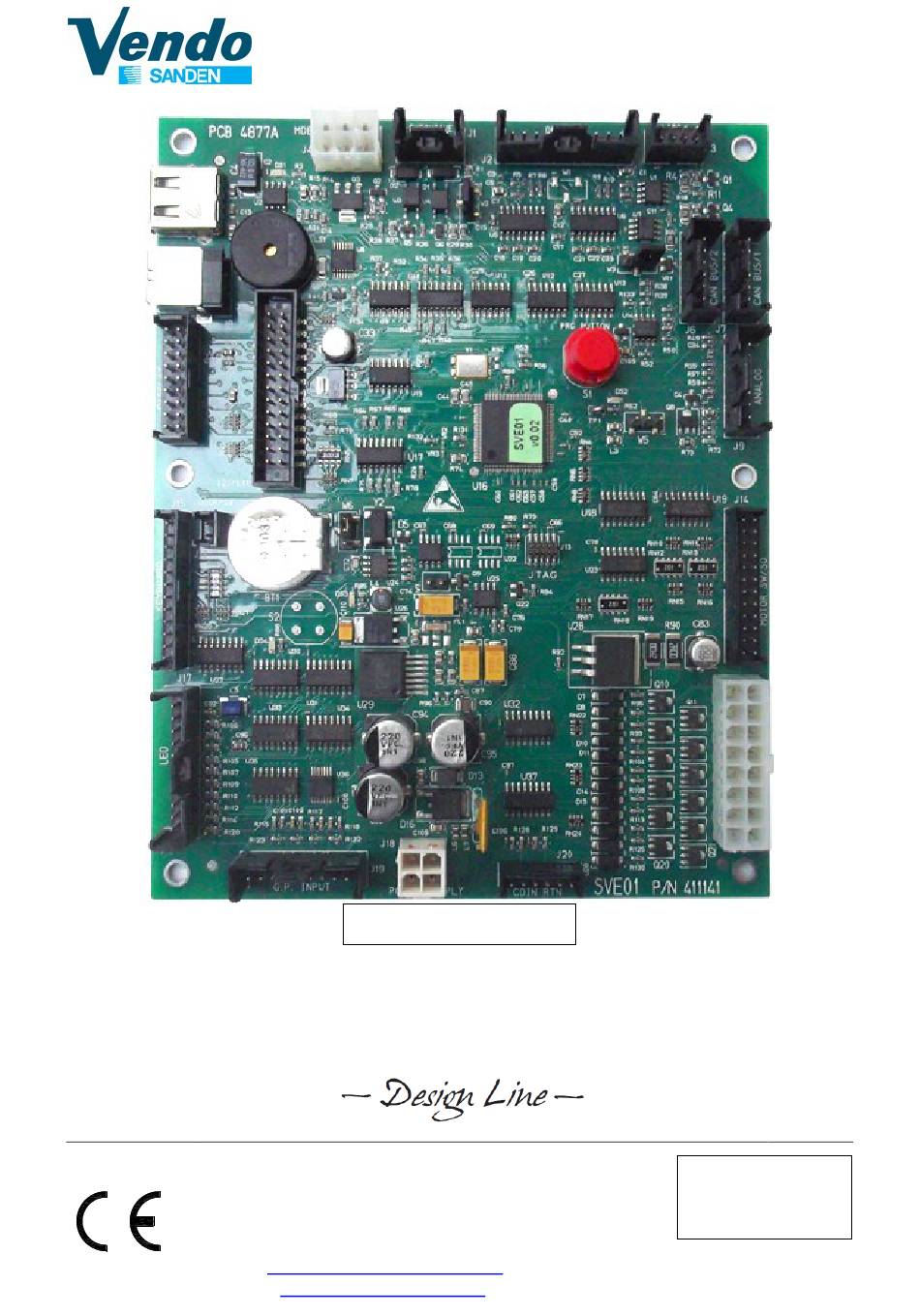

- Page 1 PROGRAMMING MANUAL BOARD SVE01 VENDING MACHINE G-Drink Design Line SVE DL6 - SVE DL9 - SVE DV6 - SVE DV9 Revision: 03 SandenVendo Europe S.p.A. Date: 9/01/2014 Regione Cavallino, 2 Code: 412486 15030 Coniolo (AL) - ITALIA Tel.: +39 0142 335111 – Fax: +39 0142 562348 e-mail: marketing@sandenvendo.it...
- Page 2 SandenVendo Italian Branch of Sanden International (Europe) Limited (SVI) Regione Cavallino, 2 15030 Coniolo (AL) Italy Tel.:+ 39 0142 335111 Fax.:+ 39 0142 562348 e-mail: marketing@sandenvendo.it www.sandenvendo.com SandenVendo German Branch of Sanden International (Europe) Limited (SVG) Spangerstrasse 22 40599 Dusseldorf Germany Tel.: + 49 211 740390 Fax: + 49 211 7488541...
-
Page 3: Table Of Contents
Instructions for programming SVE01 Board functions 1 GENERAL WARNINGS ....................3 1.1 Purpose of this manual ....................3 1.2 To whom this manual is addressed ................3 1.3 Responsibility ......................5 1.4 Manufacturer ....................... 5 1.5 Service centers ......................6 1.6 Warranty ........................ - Page 4 Instructions for programming SVE01 Board functions 4.10.5.1.2 ~ MDB Mode ....................25 4.10.6 ~ 06 Time Setting......................28 4.10.7 ~ 07 Load file from USB ....................29 4.10.8 ~ 08 Save file to USB ....................29 4.10.9 ~ 09 Reset Code ......................29 4.10.10 ~ 10 Group.........................
-
Page 5: General Warnings
Instructions for programming SVE01 Board functions 1 GENERAL WARNINGS 1.1 Purpose of this manual The manual contains the correct procedures for programming of the Vending Machine. This manual is an integral part of the machine and must therefore be kept intact and available to hand for the machine’s entire productive life. - Page 6 Instructions for programming SVE01 Board functions Technicians allowed to operate this vending machine Installer/ Maintenance / Specialized technician o The intervention of the maintenance technician is required for all those operations where the lower protection carter must be opened: when carter is removed all operations must be done only by SandenVendo personnel or by authorized technicians (trained and...
-
Page 7: Responsibility
Instructions for programming SVE01 Board functions 1.3 Responsibility The manufacturer’s responsibility is confined to the correct use of the machine, in the limits indicated in this manual. “SandenVendo Europe Spa” declines all responsibility for any damages caused to persons and/or property as the result of: - Incorrect installation - Use of unauthorized spare parts - Execution of changes unforeseen/unauthorized... -
Page 8: Service Centers
Instructions for programming SVE01 Board functions 1.5 Service centers “SandenVendo Europe Spa.” is represented by a valid and prepared sales network in both Italy and Europe (see inner cover page). 1.6 Warranty The warranty on the Vending Machine components, starting from the date shown on the delivery note, is for 24 months for the cooling system. -
Page 9: General Safety Warnings
Instructions for programming SVE01 Board functions 1.7 General safety warnings Carefully read the manual before starting or loading the vending machine Protect the vending machine against weather conditions Only maintenance technicians should remove the protective covers Always read the programming manual before operating the electronic board settings ... - Page 10 Instructions for programming SVE01 Board functions This machine is not suitable for outside installation To prevent hazards due to machine instability, secure the machine according to the instructions In case of a failure and/or poor operation, only seek help of the qualified personnel of our service centers.
- Page 11 Instructions for programming SVE01 Board functions CAUTION: FAILURE TO FOLLOW THE INSTRUCTIONS CONTAINED IN THIS MANUAL MAY INVOLVE DAMAGES TO THE MACHINE AND/OR PERSONNEL The pictures and illustrations in this document are only indicative. SandenVendo Europe S.p.A. recalls that the technical and performance of products can change without notice.
-

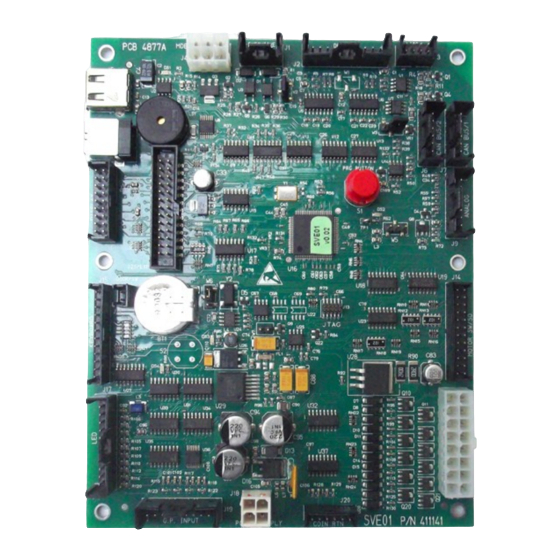

Page 12: Sve01 Electronic Board Specification
Instructions for programming SVE01 Board functions 2 SVE01 ELECTRONIC BOARD SPECIFICATION 2.1 Electronic Features Power supply: 24 Volt DC Outputs motors : 11 a 24 Volt DC Motor micro-switches: Sold-out micro switches: Sold-out LEDs: Selections switches: Door switch: Temperature probe: Real time clock: Exit audit Dex/UCS: Port USB:... -
Page 13: Software Application For G-Drink Design Line
Instructions for programming SVE01 Board functions 2.3 Software application for G-Drink Design Line 2.3.1 Initialization After connecting the vending machine to the electricity grid and switched on the main power switch on the transformer box, close the door. The lift and the product withdrawal system "Bucket"... -
Page 14: General Instruction
Instructions for programming SVE01 Board functions 3 GENERAL INSTRUCTION 3.1 Selection Button Functions In Programming Mode Exit from the submenu, exit without saving the set Selection Button 1 values Increases values, or shifts to the next menu. Keeping Selection Button 2 pressed increases rapidly. -
Page 15: Information With The Vending Machine Opened
Instructions for programming SVE01 Board functions 3.2 Information with the vending machine opened On models G-Drink Design Line the safety micro switches are no longer activated by the glass door but by the extraction / insertion of the sliding panel (drawer). When the vending machine is open, i.e. -
Page 16: Programming
Instructions for programming SVE01 Board functions 4 PROGRAMMING To enter the programming menu, open the vending machine and push the button that is on the SVE01 board. ( See figure) Once you press the Program button the display will show the programming menu. In programming mode, you have access to a variety of information that allow you to change the configuration of the distributor. -
Page 17: Historical Error
Instructions for programming SVE01 Board functions 4.1 ~ 00 Historical Error This menu displays a list of the errors found during operation of the distributor. In the event where there is no error, the display will show "No error"; Otherwise, it will display the errors that the machine has detected. -
Page 18: Tubes Payout
Instructions for programming SVE01 Board functions 4.2 ~ 01 Tubes Payout The tubes payout work only with MDB coin changer connected mode. This submenu allows you to drain the tubes of coin changer. To scroll between the tubes use button , the button for the next tube and the button to the... -
Page 19: Cash Counters
Instructions for programming SVE01 Board functions 4.4 ~ 03 Cash Counters On the display you can read the quantity of money cashed for each selection and the total To scroll between the selection use button , the button for the next selection and the button to the previous selection. -
Page 20: Sale Counters
Instructions for programming SVE01 Board functions 4.5 ~ 04 Sale Counters On the display it is possible to read how many times a selection has been sold and the total. To scroll between the selection use button , the button for the next selection and the button to the previous selection. -
Page 21: Coin Price
Instructions for programming SVE01 Board functions 4.6 ~ 05 Coin Price In this submenu you can set the vend prices for the selections: The prices are set by default to 1. When prices are set to 0 (zero), the machine is in “free vend” and the settings of the coin changer is not respected Press the button to scroll between the prices of the available selections. -
Page 22: Audit Usb
Instructions for programming SVE01 Board functions 4.8 ~ 09 Audit Usb Before selecting this item of the menu connect a USB key to the board. After you connect a USB to the board press button , the program create a file "audit.txt"... -
Page 23: Keyboard
Instructions for programming SVE01 Board functions 4.9.2 ~ 02 Keyboard 10.2 Test Keyboard 01 Flap Test 02 Keyboard 04 Temperatures This function allows you to check the correct functioning of the keyboard. The display show the number corresponding to the button you pressed. By pressing button the display show the number 10, by pressing button the display show the number 11, by pressing button... -
Page 24: Technician Menu
Instructions for programming SVE01 Board functions 4.10 ~ 11 Technician menu Pressing the button on the menu "11 Technician menu" the display will show a screen that prompts you to enter the password. 11 General Menu Insert Password 10 Test **** 11 Technician menu 12 EVA Counters... -
Page 25: Cooling
Instructions for programming SVE01 Board functions 02 Custom Cyrillic It is the language inserted on the USB key, in the desired language with Cyrillic characters Note: To reset the default language (English) press the programming button on the SVE01 board while turning on the machine, and then confirm by pressing button on the external keyboard. -
Page 26: Temperature Threshold
Instructions for programming SVE01 Board functions 4.10.3.3.1 ~ 00 Temperature Threshold In this submenu you can set the temperature threshold that is managed by HACCP parameters. 4.10.3.3.2 ~ 01 Temperature Excess Time In this submenu you can set after how much time you need activate the inhibition of the selections managed by the HACCP parameters. -
Page 27: Payment Setting
Instructions for programming SVE01 Board functions 4.10.5 ~ 05 Payment Setting 11 General Menu 11.5 Tecnician Menu 10 Test 04 SVE01 Update 11 Technician menu 05 Payment Setting 12 EVA Counters 06 Time settings Allows you to set all parameters of the payment system. 4.10.5.1 ~ 00 Payment Protocol Allows you to select the type of payment protocol: -Executive... - Page 28 Instructions for programming SVE01 Board functions 04 MDB max cashless credit Here you can set the maximum credit that the coinage accepts for the key. 05 MDB Changer Keypad Activate the button to dispense the coins you find on the coin mechanism OFF = Not activated ON = Enabled 06 MDB Correct change value...
- Page 29 Instructions for programming SVE01 Board functions 12 MDB Bill Acc.Low Change 2(*) This parameter allows you to set the bills to be accepted under low change condition (refer to "MDB Coin Accepted1" for explanation) 13 MDB Coin Accepted (*) This parameter allows you to set the coin to be accepted under normal condition of sales These parameters are used to accept or inhibit 16 different types of coins Coins accepted 1 = from coin 1 to 8...
-
Page 30: Time Setting
Instructions for programming SVE01 Board functions 18 MDB Multi vend NO = Multiple Sale disabled (the rest is paid automatically after selection) [default] YES = Multiple Sale enabled (the rest is retained for a subsequent selection, if you want instead of the rest of the provision is necessary to press the button changer) 19 MDB Bill Escrow mode This allows you to give as rest also banknotes. -
Page 31: Load File From Usb
Instructions for programming SVE01 Board functions 4.10.7 ~ 07 Load file from USB 11 General Menu 11.7 Tecnician Menu 10 Test 06 Time settings 11 Technician menu 07 Load file from USB 12 EVA Counters 08 Save file to USB To load a file you need to connect a ESB, that contain the file created b the program SVCM, into the connector (shown in figure): To perform this procedure you must press the red button on the SVE01 board, scroll... -
Page 32: Group
Instructions for programming SVE01 Board functions 4.10.10 ~ 10 Group The Group function allows you to associate some selections/columns loaded in a vending machine in order to group the same products. The machine therefore applies one price/group and to empty the selection/column equally aligned, by alternating the sales among the group. -
Page 33: Eva Counters
Instructions for programming SVE01 Board functions 4.11 ~ 12 EVA Counters 11 General Menu Total bills value: 0 11 Technician menu Resettable bills value: 0 12 EVA Counters Total cash tubes value: 0 Resettable cash tubes: 0 Through the programming menu of the machine you can see the following parameters: Total bills value: 0 Total cash dispensed value: 0 Resettable bills value: 0... - Page 34 Instructions for programming SVE01 Board functions CA306 Value of cash to cash box since initialisation CA307 Value of cash to tubes since initialisation CA309 Value of bills in since last reset CA310 Value of bills in since initialisation ...
-
Page 35: Description And Function Of Control Unit
Instructions for programming SVE01 Board functions 5 DESCRIPTION AND FUNCTION OF CONTROL UNIT 5.1 Control Unit EASY CAREL The electronic control unit EASY CAREL regulates and controls the refrigerant system and all its components: The compressor, the fans, the defrosting, and is independent of the control of the board SVE01, which control the electronics of the distributor. -
Page 36: Key Board
Instructions for programming SVE01 Board functions 5.1.2 Key board Key 1 "UP", in normal function if pushed for more than 1 second, it visualizes the temperature of probe 2 (evaporator). If pushed during the visualization of the set point it increases the set value. -
Page 37: Description Of The Main Signals And Alarms
Instructions for programming SVE01 Board functions 5.1.5 Description of the main signals and alarms The error codes are displayed on the display alternating with the temperature gauge. ERROR DESCRIPTION The compressor has a timing delay when starting, therefore the LED of the compressor on the display starts to flash. -
Page 38: Control Unit Carel Ir33
Instructions for programming SVE01 Board functions 5.2 Control Unit CAREL ir33 The electronic control unit CAREL ir33 regulates and controls the refrigerant system and all its components: the compressor, the fans, the defrosting and is independent of the control of the board SVE01, which control the electronics of the distributor. On the front of the control unit are: 3 digits, 7 LED indicators that show the operating conditions and 4 buttons. - Page 39 Instructions for programming SVE01 Board functions ICON FUNCTION DESCRIPTION Normal operation Start up BLINK indicate that the Real Time present Clock is fitted. Flashes if the anti-sweat heater function is active, ON when the Light auxiliary Anti-sweat heater auxiliary output (1 and/or 2) output function selected as LIGHT is activated...
-
Page 40: Keyboard
Instructions for programming SVE01 Board functions 5.2.2 Keyboard Automatic address Icon Normal operation Start up assignment request pressing the button pressing together with other buttons alone If pressed for more than 5 PRG+SET: if pressed together for more than If pressed for more seconds, accesses the If pressed for more 5 seconds, accesses the menu for setting... -
Page 41: Displaying And Setting The Set Point
Instructions for programming SVE01 Board functions 5.2.3 Displaying and setting the set point Press SET for more than 1 second to display the set point; ▲ ▼ Increase or decrease the set point using the buttons respectively, until reaching the desired value; Press SET again to confirm the new value. -
Page 42: Programming Menu Structure
Instructions for programming SVE01 Board functions 6 PROGRAMMING MENU STRUCTURE General Menu 1° Submenu 2° Submenu 3° Submenu 00 Historical menu No error ERROR SPEED Y ERROR HOME SWITCH ERROR OPTICAL SENSOR Y ERROR SPEED X ERROR HOME SWITCH ERROR OPTICAL SENSOR X ERROR INITIALISATION ERROR SLAVE... - Page 43 Instructions for programming SVE01 Board functions 10 Product 21 0.00 / 0.00 … 18 Product 29 0.00 / 0.00 20 Product 31 0.00 / 0.00 … 28 Product 39 0.00 / 0.00 30 Product 41 0.00 / 0.00 … 38 Product 49 0.00 / 0.00 40 Product 51 0.00 / 0.00 …...
- Page 44 Instructions for programming SVE01 Board functions 20 Product 31 = 0.00 … 28 Product 39 = 0.00 30 Product 41 = 0.00 … 38 Product 49 = 0.00 40 Product 51 = 0.00 … 48 Product 59 = 0.00 80 All Product 07 Key 2 Price 00 Product 11 = 0.00 …...
- Page 45 Instructions for programming SVE01 Board functions 02 Custom Cirillic 03 Cooling 00 Temperature display 01 HACCP Enable 02 HACCP Parameter 00 Temperature Threshold 01 Temperature Excess Time 02 Maximum Temperature Threshold 03 HACCP Products 04 SVE01 Update 05 Payment Setting 00 Payment Protocol 01 Executive Price Holding 02 MDB overpay mode...
- Page 46 Instructions for programming SVE01 Board functions 09 Reset Code 10 Group 00 Product 11-11 08 Product 19-19 10 Product 21-21 18 Product 29-29 20 Product 31-31 28 Product 39-39 30 Product 41-41 38 Product 49-49 40 Product 51-51 48 Product 59-59 80 Clear Product 12 EVA Counters ©...
- Page 47 SandenVendo Europe S.p.A. Regione Cavallino,2 15030 CONIOLO (AL) ITALY declares under its responsibility that the following vending machine: SVE DL9 - SVE DL6 Vending machine Model SVE DV9 - SVE DV6 Is in conformity with the following Directives: Directive 2006/42/EC (Machinery)
- Page 48 Revision Data ECRN Changes Page 28/05/2013 Manual Creation 01/10/2013 Improved descriptions Remove point 03 Cooling 02/04/2014 Update layout Inner Update service center pages cover Add point 3.2 Information with the vending machine opened Update point 4.2 ~ 01 Tubes Payout Update point 4.3 ~ 02 Tubes Fill Update point 4.4 ~ 03 Cash Counters Update point 4.5 ~ 04 Sale Counters...
