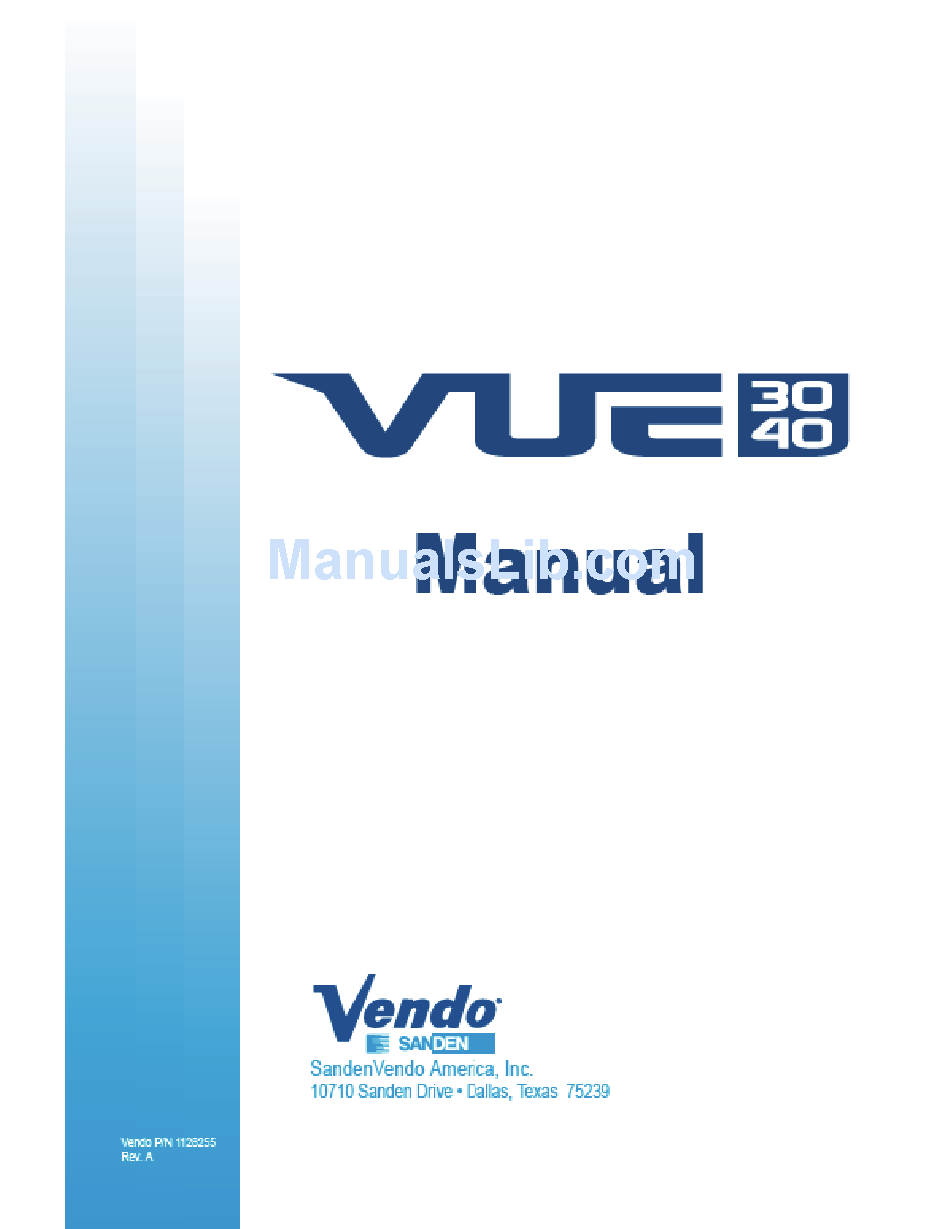

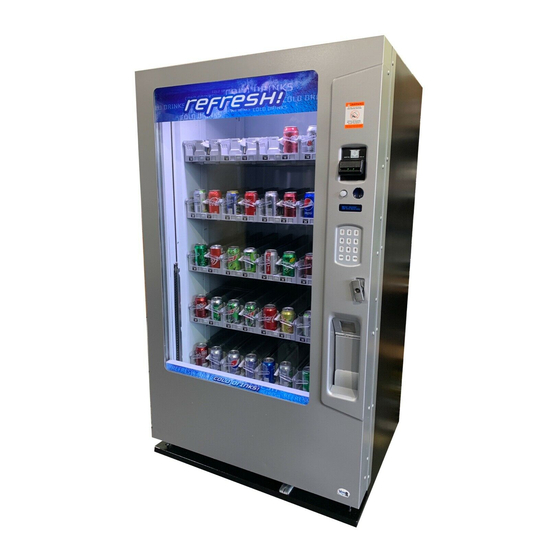

Vendo VUE 30 Manual

Hide thumbs Also See for VUE 30:
Table of Contents

Advertisement

Quick Links

See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VUE 30 and is the answer not in the manual?

Questions and answers

Related Manuals for Vendo VUE 30

Summary of Contents for Vendo VUE 30

  • Page 2 TABLE OF CONTENTS 01/2008...
  • Page 3 Table of Contents Safety S-1 - S-17 Commitment to Safety...................S-2 Vendor Installation..................S-3 Electrical Hazards ..................S-7 Mechanical Hazards..................S-10 Refrigeration Hazards ...................S-11 Temperature Hazards..................S-11 Substitutions and Modifications..............S-12 Consumer Safety Warning ................S-14 Parts, Sales, and Service Centers ..............S-15 Parts, Sales, and Service Centers for Latin America ........S-16 General Information G-1 - G-8 General Information ..................G-2...

  • Page 4: Table Of Contents

    Return ......................P-24 Wiring Diagram....................P-25 Cabinet Parts C-1 - C-11 Cabinet Assembly ..................C-2 Refrigeration Assembly .................C-4 Lighting Assembly ..................C-5 Power Distribution Assembly.................C-6 Harness Quick Guide ..................C-10 Shelves & Trays Parts ST-1 - ST-5 Shelves & Trays Assembly................ST-2 Tray Assembly....................ST-3 Door Parts D-1 - D-25 Door Assembly ....................D-2 Hand Assembly .....................D-6...
  • Page 30 CLEANING INFORMATION SECTION CL-1 04/2005...

  • Page 31: Care And Cleaning

    CARE AND CLEANING DO NOT USE WATER JET FOR CLEANING. AVOID USING WATER OR ANY OTHER LIQUIDS NEAR ELECTRONIC COMPONENTS GENERAL PROCEDURE (painted metal areas) Wash the vendor with soap and water. The exterior may be waxed with any good automobile wax.
  • Page 32 PRODUCT FLAP, HOPPER, & OTHER INTERIOR SURFACES THAT CONTACT PACKAGED PRODUCT Wash the surfaces with a mild food safe soap (i.e. Palmolive Liquid Dish Soap) & water. Rinse with plain water to remove any soap residue. Recommended Cleaning Schedule Vendor Area Frequency Product Flap Monthly and when spills occur...
  • Page 33 NOTES CL-4 04/2005...
  • Page 62 CABINET SECTION 11/2007...
  • Page 63 11/2007...

  • Page 64: Cabinet Assembly

    CABINET ASSEMBLY ITEM NO DESCRIPTION QTY PART NO FOAMED CABINET CABINET LATCH 1130807 SCREW, #10 X 3/8” CR TAP V802212 RAMP ASSEMBLY 1133925 RAMP, DOOR 1130868 THUMB SCREW, 1/4-20 X .5, RAMP 1127060 LEVELING BOLT 1059902 BASE COVER PANEL REFRIGERATION ASSEMBLY (SEE PAGE C-4) CHANNEL-TRAY SUPPORT 1126639 LIGHT ASSEMBLY (SEE PAGE C-5)

  • Page 65: Refrigeration Assembly

    REFRIGERATION ASSEMBLY ITEM NO DESCRIPTION PART NO REFRIGERATION UNIT ASSEMBLY, 115V 1033131-267 REFRIGERATION UNIT ASSEMBLY, 230V 1033131-268 FAN ASSY, CONDENSOR, 115V 1126307 FAN ASSY, CONDENSOR, 230V 1127995 HARNESS, FAN MOTOR 1125571 CORD, CONDENSOR MOTOR 1121020 POWER CORD, COMPRESSOR 1121019-3 FAN ASSY, EVAPORATOR, 115V 1126260 FAN ASSY, EVAPORATOR, 230V 1127994...

  • Page 66: Lighting Assembly

    LIGHTING ASSEMBLY ITEM NO DESCRIPTION QTY PART NO LAMP HOLDER 1127650 TIE WRAP RT-350 342469-1 LAMP, 2FT, T-8, 17W 1130637 LAMP LENS 1125967 LAMPHOLDER, .591 RH 1126146 LAMPHOLDER, .591 LH 1126145 SCREW, 6-35 X.25 TRUSS HEAD V802243 FOR A COMPLETE LIST OF HARNESSES, PLEASE SEE PAGE C-10. 11/2007...
  • Page 67 11/2007...

  • Page 68: Power Distribution Assembly

    POWER DISTRIBUTION ASSEMBLY, 115V ITEM NO DESCRIPTION PART NO POWER DISTRIBUTION ASSEMBLY, 115 V 1128752 PANEL, POWER DISTRIBUTION 1128743 TRANSFORMER, 24 VAC 1111201 FAN, PWR DISTRIBUTION 1127890 BUSHING 1116634 PLATE, PWR SUPPLY 1128356 POWER SUPPLY, 24V DC 1137384 STANDOFF V802255 SCREW, 10-16 5/16 HEX HEAD V801421 SCREW, 6-32 1/4...
  • Page 69 11/2007...
  • Page 70 POWER DISTRIBUTION ASSEMBLY, 230V ITEM NO DESCRIPTION PART NO POWER DISTRIBUTION ASSEMBLY, 115 V 1128752 PANEL, POWER DISTRIBUTION 1128743 TRANSFORMER, INTERNATIONAL, 230/24 VAC 1121932 FAN, PWR DISTRIBUTION 1127890 BUSHING 1116634 PLATE, PWR SUPPLY 1128356 POWER SUPPLY, 24V DC 1137384 STANDOFF V802255 SCREW, 10-16 5/16 HEX HEAD V801421...

  • Page 71: Harness Quick Guide

    HARNESS QUICK GUIDE PART NO DESCRIPTION 1127592 Cabinet Harness 1128054 Power Distribution Harness, High Voltage 1128750 Power Distribution Harness, Low Voltage 1125571 Fan Motor Harness 1121019-3 Compressor Power Cord 1121020 Condensor Motor Cord 1124281 Cord Set 90 Deg Plug & IEC 1121642 Cord Set, UK 1121641...
  • Page 72 NOTES C-11 11/2007...
  • Page 112 TROUBLESHOOTING SECTION 04/2005...

  • Page 113: Return

    All parts returned must be accompanied by a material return tags (P/N 1122825) Tag must clearly state the reason for the return and the Return Goods Authorization Number received from your Vendo Customer Service Rep at 1-800-344-7216. (Return tags are available from our parts department upon request).
  • Page 114 04/2005...
  • Page 115 04/2005...
  • Page 116 04/2005...
  • Page 117 04/2005...
  • Page 118 04/2005...
  • Page 119 04/2005...
  • Page 120 04/2005...
  • Page 121 T-10 04/2005...
  • Page 122 T-11 04/2005...
  • Page 123 T-12 04/2005...
  • Page 124 T-13 04/2005...
  • Page 125 NOTES T-14 04/2005...

This manual is also suitable for:

Vue 40
