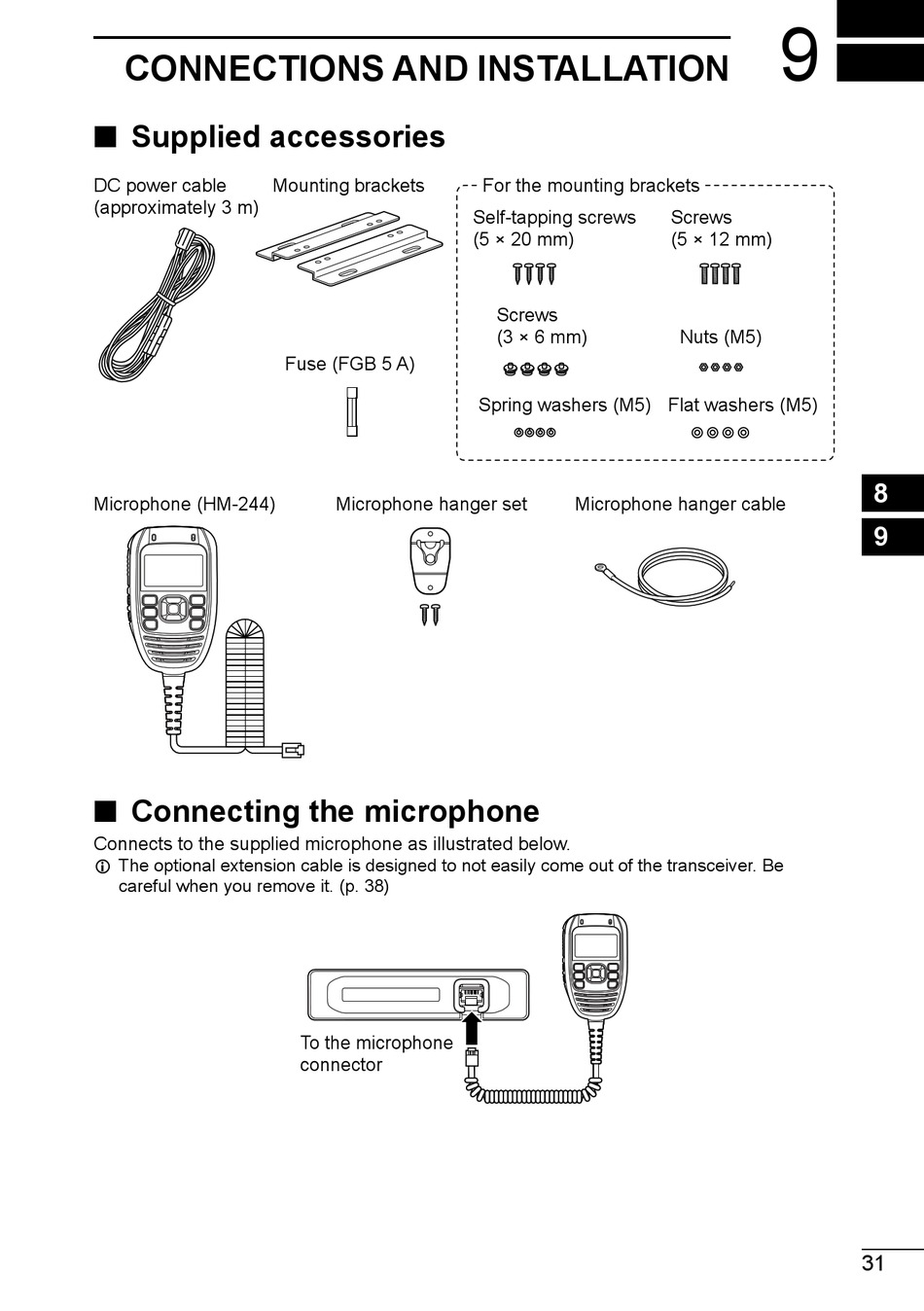

CONNECTIONS AND INSTALLATION
■ Supplied accessories
DC power cable
(approximately 3 m)
Microphone (HM-244)
■ Connecting the microphone
Connects to the supplied microphone as illustrated below.
L The optional extension cable is designed to not easily come out of the transceiver. Be
careful when you remove it. (p. 38)
Mounting brackets
Fuse (FGB 5 A)
Microphone hanger set
To the microphone
connector
For the mounting brackets
Self-tapping screws
(5 × 20 mm)
Screws
(3 × 6 mm)
Spring washers (M5) Flat washers (M5)
Microphone hanger cable
9
Screws
(5 × 12 mm)
Nuts (M5)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
