Selection
Manual Motor Starters
Provide 3-phase power for electric blowers often required
for larger motors. Power for the starters is provided from
the load side of any supplied contactor, circuit breaker, or
disconnect switch. Power is fused before each motor
starter, and is off when the incoming power to the drive is
off. Up to two starters are allowed (one if a 30 A, fuse-
protected circuit is ordered), and are integrated into the
adjustable frequency drive STO circuit.
Unit features include:
•
Operation switch (on/off)
•
Short-circuit and overload protection with test
function
•
Manual reset function
30 A, Fuse-Protected Terminals
•
3-phase power matching incoming AC line
voltage for powering auxiliary customer
equipment
•
Not available if two manual motor starters are
selected
•
Terminals are off when the incoming power to
the adjustable frequency drive is off
•
Power for the fused protected terminals will be
provided from the load side of any supplied
contactor, circuit breaker, or disconnect switch
In applications where the motor is used as a brake, energy
is generated in the motor and sent back into the
adjustable frequency drive. If the energy cannot be
transported back to the motor, it increases the voltage in
the adjustable frequency drive DC line. In applications with
frequent braking and/or high inertia loads, this increase
may lead to an overvoltage trip in the adjustable
frequency drive and finally a shutdown. Brake resistors are
used to dissipate the excess energy resulting from the
regenerative braking. The resistor is selected based on its
ohmic value, its power dissipation rate and its physical
size. Danfoss offers a wide variety of different resistors that
are specifically designed for Danfoss adjustable frequency
drives.

3.1.13 Remote Mounting Kit for LCP

When the adjustable frequency drive is inside a larger
enclosure, the LCP can be moved from an adjustable
frequency drive inside to the front of a cabinet using the
remote mounting kit. The LCP enclosure is IP66. Tighten
fastening screws with a torque of 1 Nm, maximum.
MG16C122
Design Guide
Enclosure
Max. cable length between LCP and unit
Communication std
Table 3.14 Technical Data

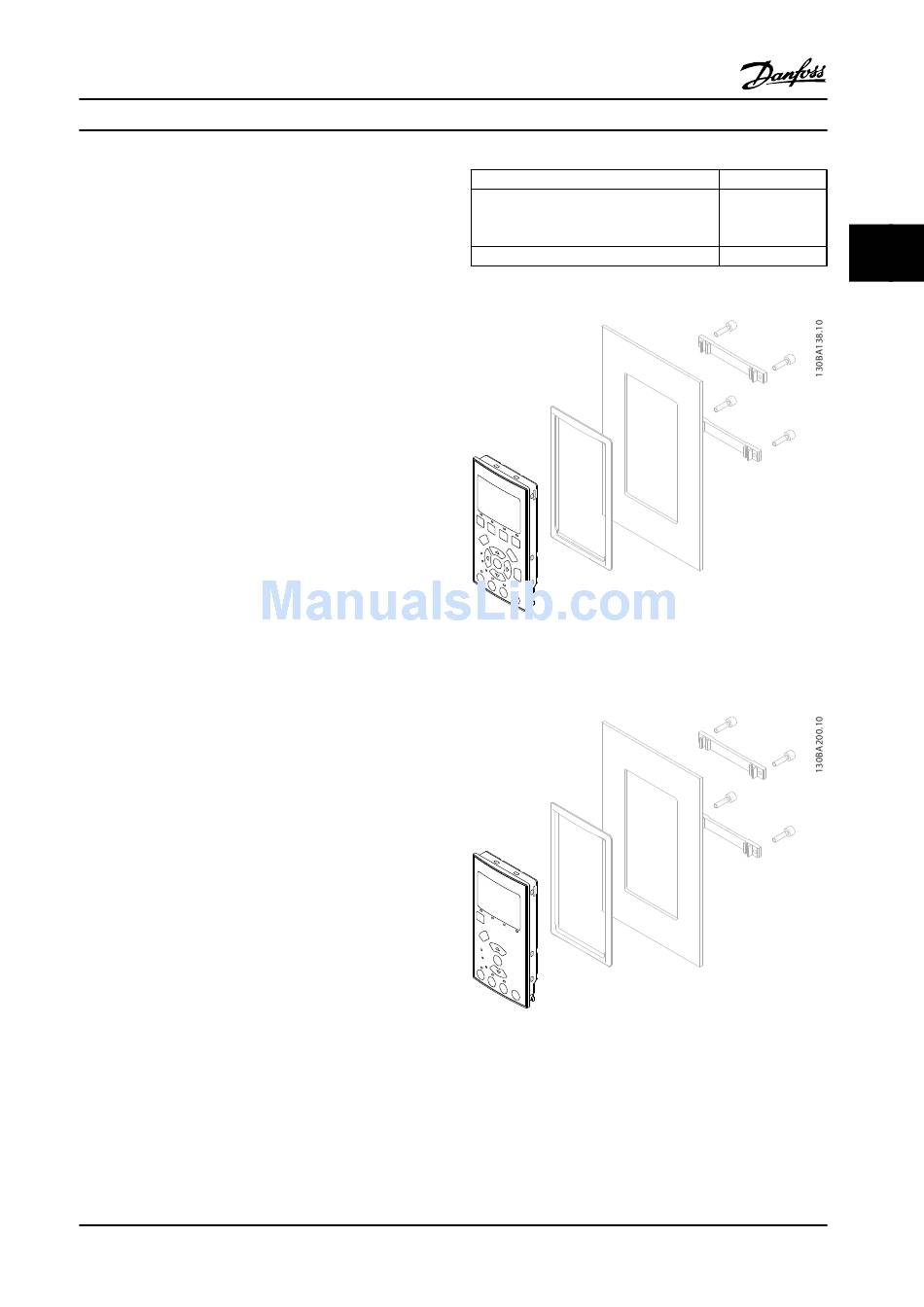

Figure 3.11 LCP Kit with Graphical LCP, Fasteners, 10 ft [3 m]
Cable and Gasket
Ordering No. 130B1113
Figure 3.12 LCP Kit with Numerical LCP, Fasteners and Gasket
Ordering no. 130B1114
Danfoss A/S © Rev. 2014-01-13 All rights reserved.
IP66 front
10 ft [3 m]
26 ft [8 m] for
option 130B1129
3 3
RS-485
