How to Install
D-frame Interior Components
10
11
1
15
13
(IP 21/54
NEMA 1/12)
13 (IP 20/Chassis)

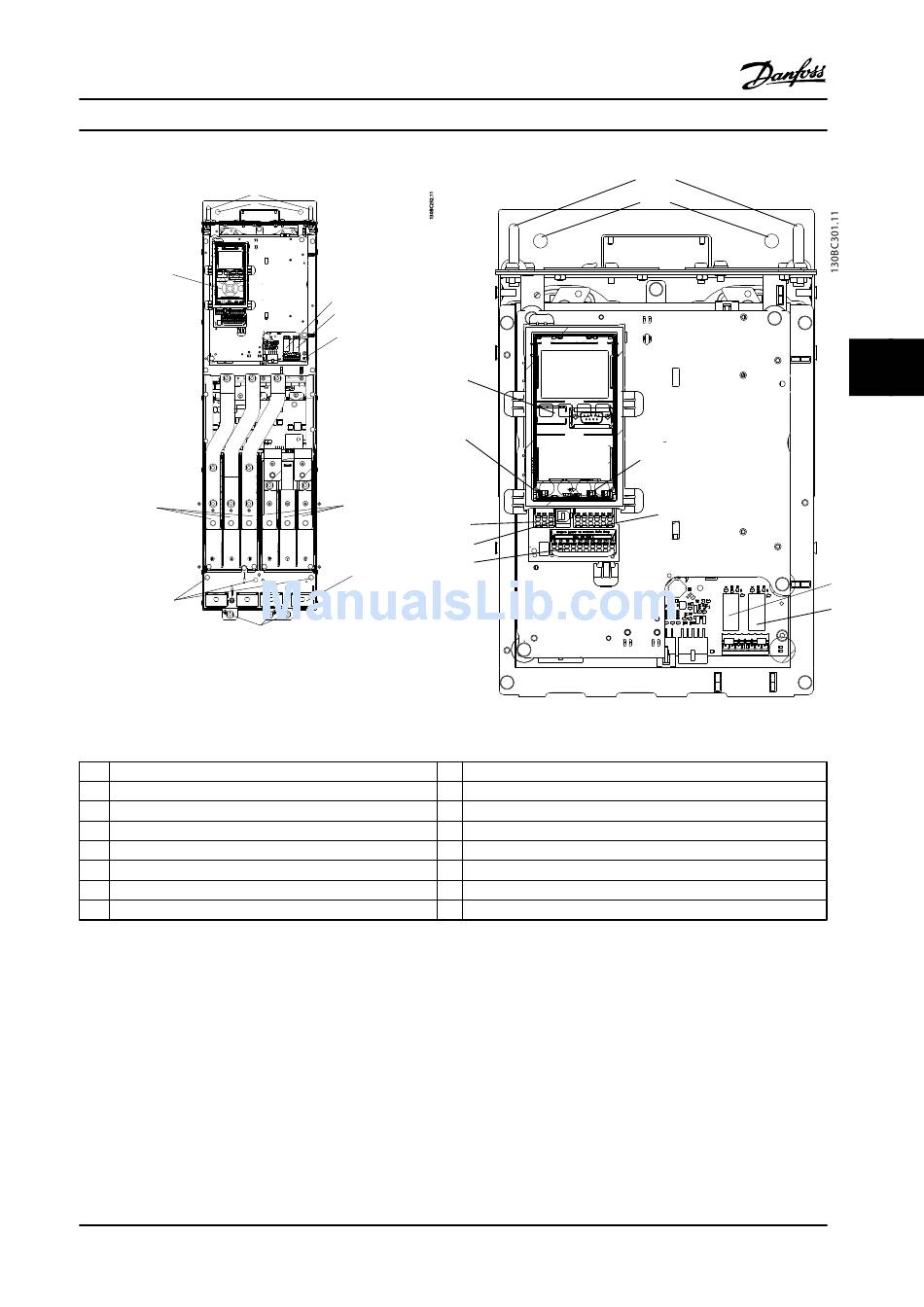

Figure 5.53 D-frame Interior Components
1 LCP (Local Control Panel)
2 RS-485 serial bus connector
3 Digital I/O and 24 V power supply
4 Analog I/O connector
5 USB connector
6 Serial bus terminal switch
7 Analog switches (A53), (A54)
8 Relay 1 (01, 02, 03)
Table 5.42 Legend to Figure 5.53 and Figure 5.54
MG16C122
Design Guide
8
9
16
1
6
14
2
5
3
12
Figure 5.54 Close-up View: LCP and Control Functions
9 Relay 2 (04, 05, 06)
10 Lifting ring
11 Mounting slot
12 Cable clamp (PE)
13 Ground
14 Motor output terminals 96 (U), 97 (V), 98 (W)
15 Line power input terminals 91 (L1), 92 (L2), 93 (L3)
