Chapter 3
Communication Ports

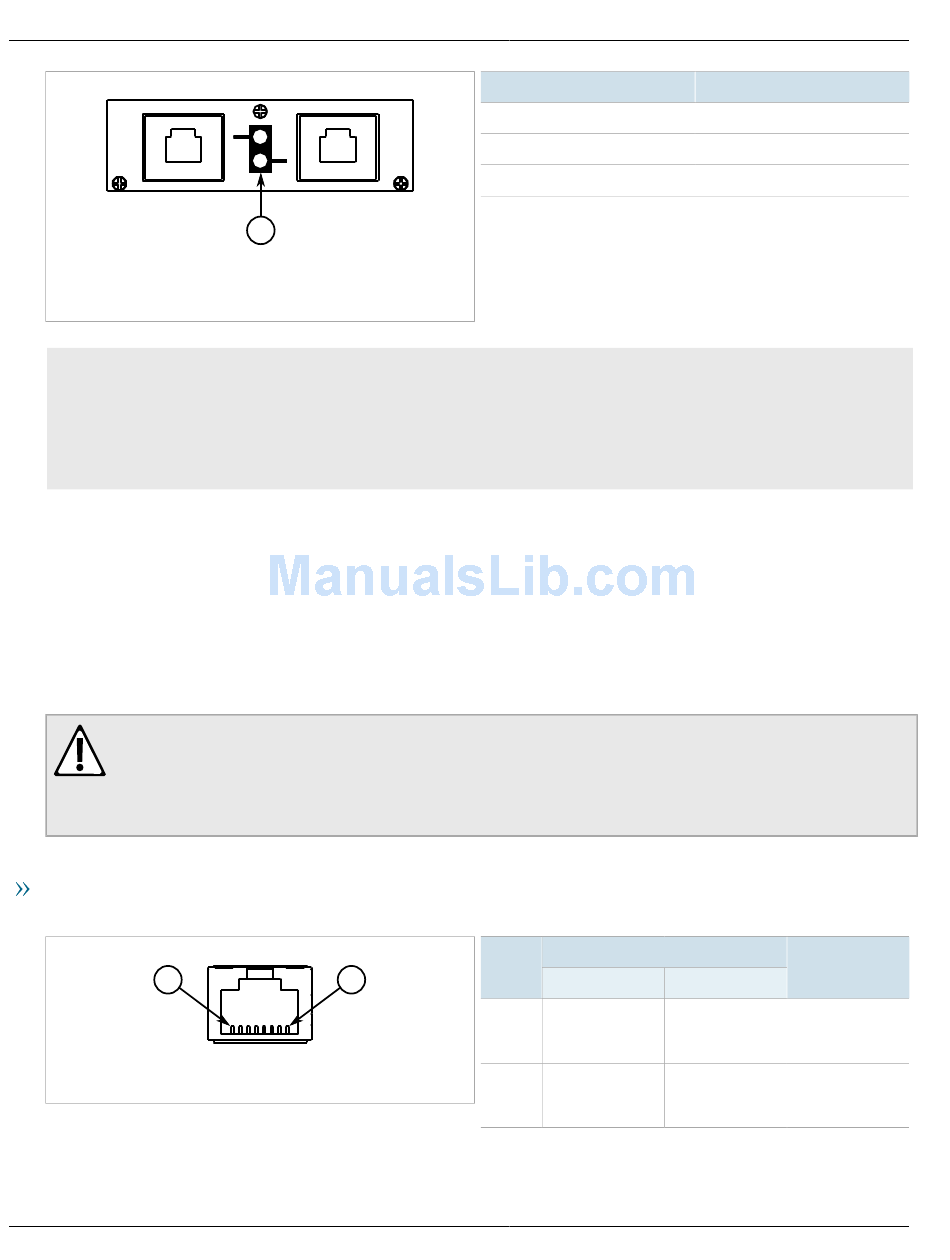

Figure 16: Port LEDs
1. Port LED
CONTENTS
• Section 3.1, "Copper Ethernet Ports"
• Section 3.2, "Fiber Optic Ethernet Ports"
• Section 3.3, "SFP Transceivers"
• Section 3.4, "GBIC Optic Ethernet Ports"
Section 3.1

Copper Ethernet Ports

The RUGGEDCOM RSG2100 supports several 10/100/1000Base-TX Ethernet ports that allow connection to
standard Category 5 (CAT-5) unshielded twisted-pair (UTP) cables with either RJ45 or Micro-D male connectors.
The RJ45 and Micro-D connectors are directly connected to the chassis ground on the device and can accept CAT-5
shielded twisted-pair (STP) cables.
WARNING!
Electric shock hazard – risk of serious personal injury and/or equipment interference. If shielded
cables are used, make sure the shielded cables do not form a ground loop via the shield wire and the
RJ45 receptacles at either end. Ground loops can cause excessive noise and interference, but more
importantly, create a potential shock hazard that can result in serious injury.
Pin-Out
The following are the pin-out descriptions for the RJ45 and Micro-D connectors:
8
Figure 17: RJ45 Ethernet Port Pin Configuration
22
1
1
LED State
Yellow (Solid)
Yellow (Blinking)
Off
Name
Pin
10/100Base-TX
1 RX+
2 RX-
RUGGEDCOM RSG2100
Installation Guide
Description
Link established
Link activity
No link detected
Description
1000Base-TX
BI_DA+ Receive Data+
or Bi-Directional
Pair A+
BI_DA- Receive
Data- or Bi-
Directional Pair A-
Copper Ethernet Ports
