Communication Ports
The RUGGEDCOM RS416P can be equipped with various types of communication
ports to enhance its abilities and performance.
Each communication port type has a specific place in the RUGGEDCOM RS416P
chassis.
1
2
3
4
5
6

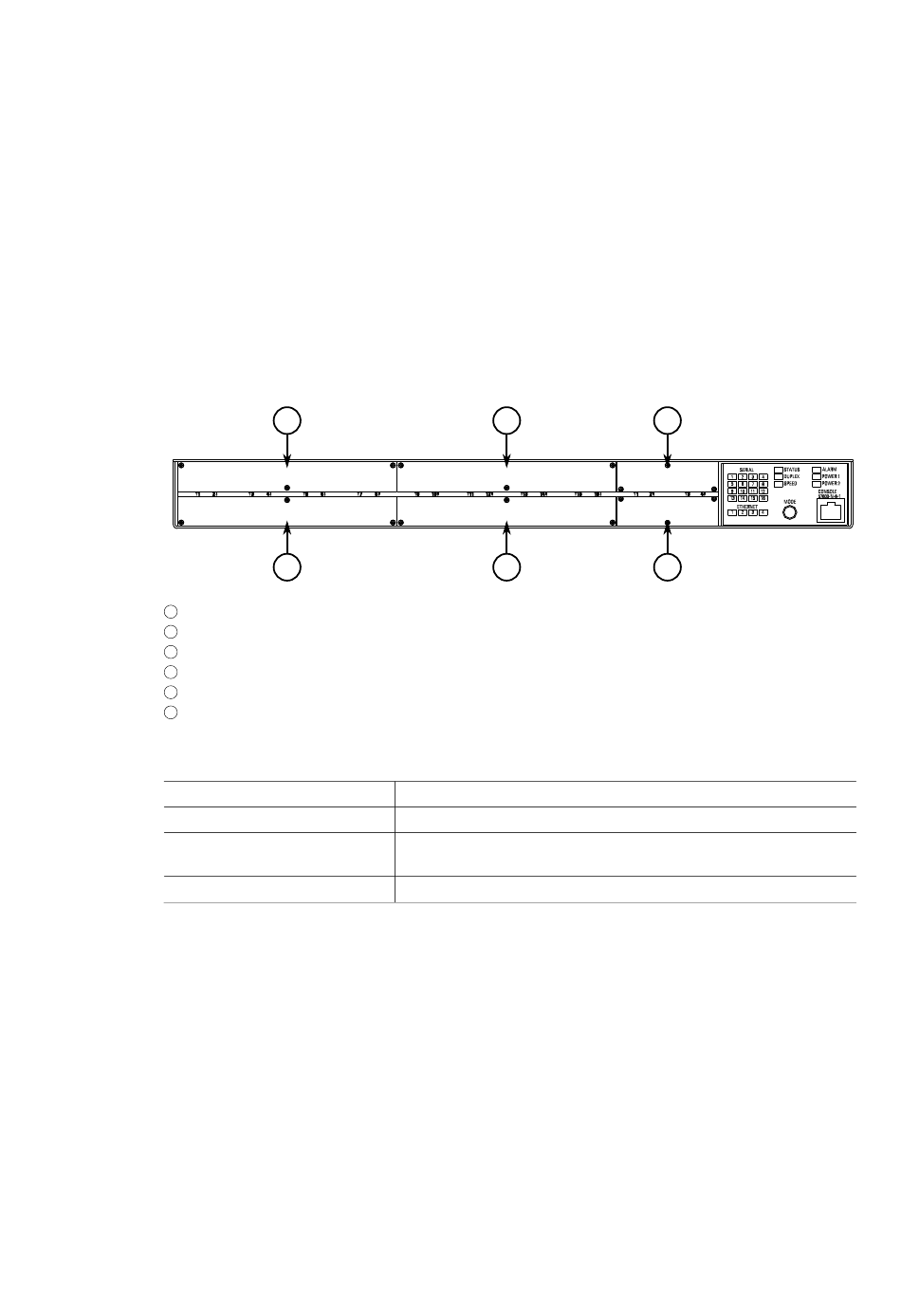

Figure 4.1
4.1
Copper Ethernet Ports
The RUGGEDCOM RS416P supports several 10/100Base-TX Ethernet ports that allow
connection to standard Category 5 (CAT-5) unshielded twisted-pair (UTP) cables with
RJ45 male connectors. The RJ45 connectors are directly connected to the chassis
ground on the device and can accept CAT-5 shielded twisted-pair (STP) cables.
RUGGEDCOM RS416P
Installation Manual, 11/2022, C79000-G8976-1019-11
1
2
Slot 1
Slot 2
Slot 3
Slot 4
Slot 5
Slot 6
Port Assignment
Slot
1 to 4
5
6
3
4
Serial Ports
Fast Ethernet (10/100Base-TX PoE, 10Base-FL or 10/100Base-FX) or
IRIG-B BNC Ports
Fast Ethernet (10/100Base-TX PoE, 10Base-FL or 10/100Base-FX)
5
6
Type
4
23
