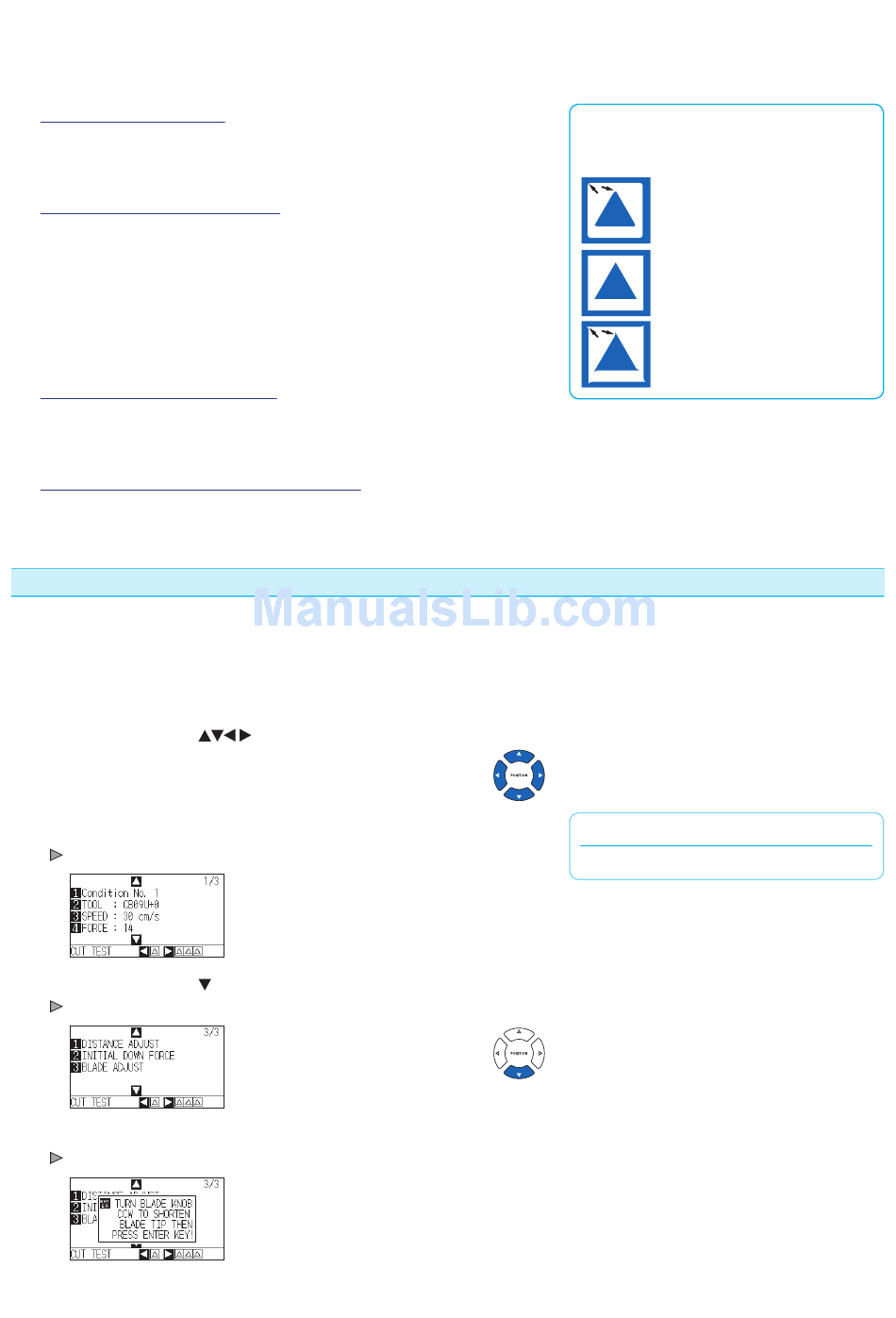

Adjustment Of Offset - GRAPHTEC CE6000 SERIES Setup Manual

5
Check if the cut test is appropriate.
Confirm the cutting test results, and adjust to optimal setting. Repeat cutting test and adjustment until optimal cut is
achieved.

Adjustment of Offset

Check the corners of the triangles and rectangles. See "Setting the Tool"
and adjust the offset value if the corner is not cut or if it is cut too much.
Adjust offsets in Normal mode.
Adjustment for Half Cutting
Peel off the triangle area, and adjust so it cuts slightly into the backing
sheet.
If the backing sheet has been cut through, either the FORCE setting is
too high or the cutter-blade tip is extended too far. If the backing sheet
shows only a few traces of the cutter blade, either the FORCE setting is
too low or the cutter blade tip is not sufficiently extended.
See "Adjusting the Blade Length" and "Setting the Force" and adjust the
settings.
Adjustment for Cutting Out
Adjust so the media is completely cut out.
If the media is not completely cut, either the FORCE setting is too low or the cutter blade tip is not sufficiently extended.
See "Adjusting the Blade Length" and "Setting the Force" and adjust the settings.
Adjustment When Using Plotting Pen
Adjust the FORCE so there will be no faint lines. To prolong the pen life, set the FORCE to the lowest setting without any
faint lines. See"Setting the Force" or setting the FORCE.
Adjust the Blade Length (Automatic Height Adjust)
Test cutting must be performed several times in order to confirm the optimal blade length setting. However, if the blade
length adjustment function is used, the optimal length can be easily set.
1
Load the media for test cutting in the plotter.
2
Press the POSITION (
3
Press the [COND/TEST] key in the default screen.
CONDITION setting screen (1/3) is displayed.
4
Press the POSITION ( ) key.
CONDITION setting screen (3/3) is displayed.
5
Press the [3] key (BLADE ADJUST).
Message prompting to turn the blade-length adjustment knob is displayed.
) key the tool carriage to the location you wish to perform the blade length adjustment.
How to check offset
Check if the offset value is set correctly by
following.
Supplement
Perform the settings in Normal mode.
12
Not enough adjustment. Increase
the offset value.
Optimal offset value.
Too much adjustment. Decrease
the offset value.
