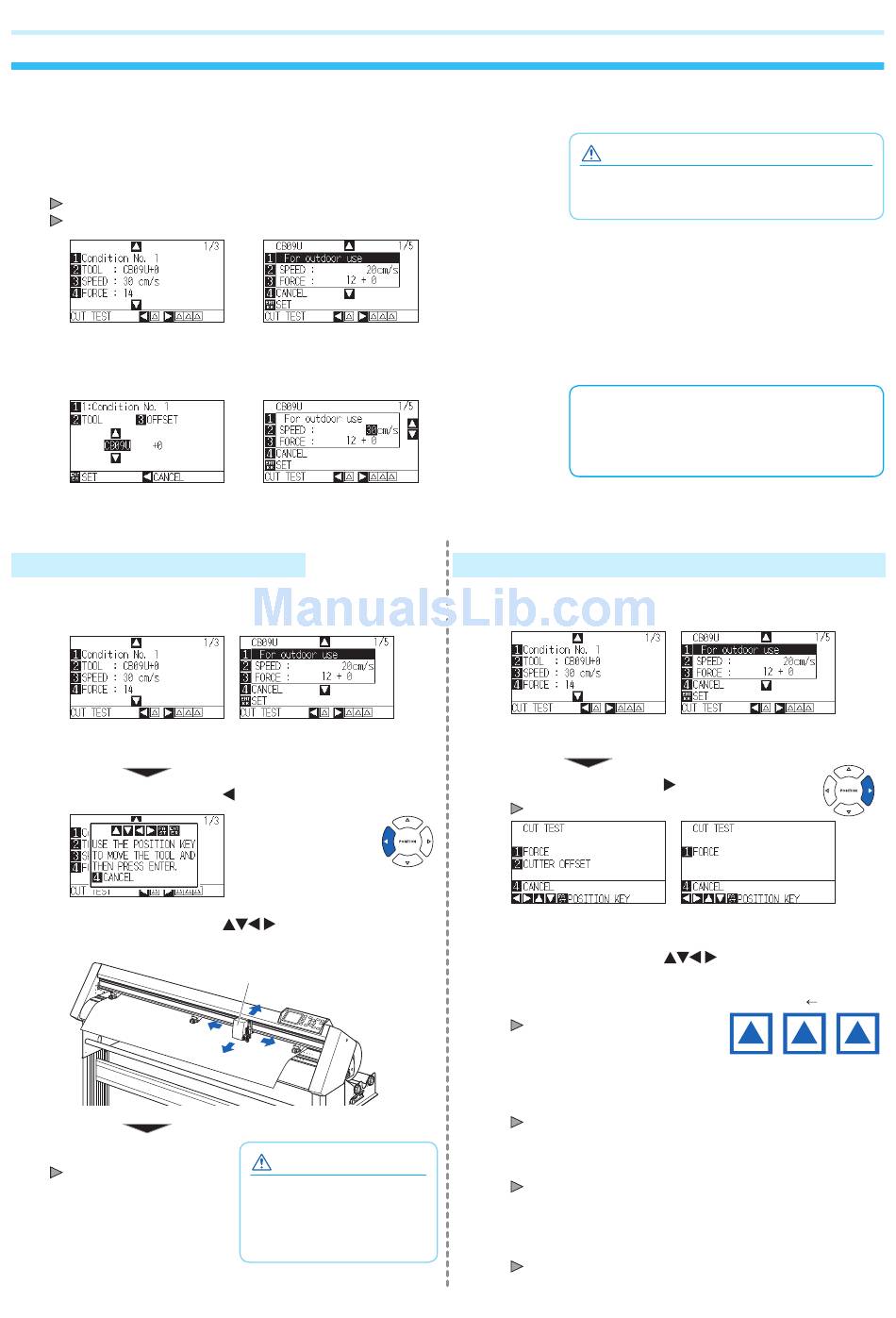

6. Tool adjustment and test cutting
After setting the Tool/Speed/Force/Acceleration, make test cutting, and repeat until optimal condition is achieved.
1
Load the media for test cutting in the plotter.
2
Press the [COND/TEST] key in the default screen.
In Normal mode, CONDITION screen (1/3) is displayed.
In Simple mode, CONDITION screen (1/5) is displayed.
CONDITION screen
(Normal mode)
3
Set the Tool conditions (Tool, Speed, Force, Acceleration).
Ex.) TOOLS CONDITION
Settings screen (Normal mode)

To make 1 cut with set value

4
Make test cutting for one piece while Tool conditions are
being set.
CONDITION screen
(Normal mode)
(1) Press the POSITION ( ) key (CUT TEST).
(2) Press the POSITION (
to the location you wish to perform the test cutting.
Press the [ENTER] key.
Cut test pattern is cut.
CONDITION screen
(Simple mode)
Ex.) TOOLS CONDITION
Settings screen (Simple mode)
CONDITION screen
(Simple mode)
) key the tool carriage
Tool carriage
CAUTION
When the [ENTER] key is
pressed, the tool carriage
will start moving, so take
care not to cut your fingers.
CAUTION
Do not touch the Tool edge when power is
turned on or during operation.
Setting the Tool conditions
For more information about the various cutting
conditions, see "Selecting Tool Condition".
To make 3 cuts with set value and ±1 of set value
4
Make test cutting for three pieces while Tool conditions
are being set.
CONDITION screen
(Normal mode)
(1) Press the POSITION ( ) key (CUT TEST).
CUT TEST screen is displayed.
CUT TEST screen
(Normal mode)
(2) Press the POSITION (
to the location you wish to perform the test cutting.
(3) Press the [1] key (FORCE).
3 cutting test patterns are cut,
with current FORCE in the
center, and 1 each of FORCE
increased and decreased for 1
(4) Press the [ENTER] key after completion.
It will return to CUT TEST menu screen.
(5) Press the [2] key (CUTTER OFFSET). (Normal mode
only)
3 cutting test patterns are cut, with current CUTTER
OFFSET in the center, and 1 each of CUTTER OFFSET
increased and decreased for 1.
(6) Press the [ENTER] key after completion.
It will return to CUT TEST menu screen.
11
CONDITION screen
(Simple mode)
CUT TEST screen
(Simple mode)
) key the tool carriage
Cut Order
+1 Setting –1
values
