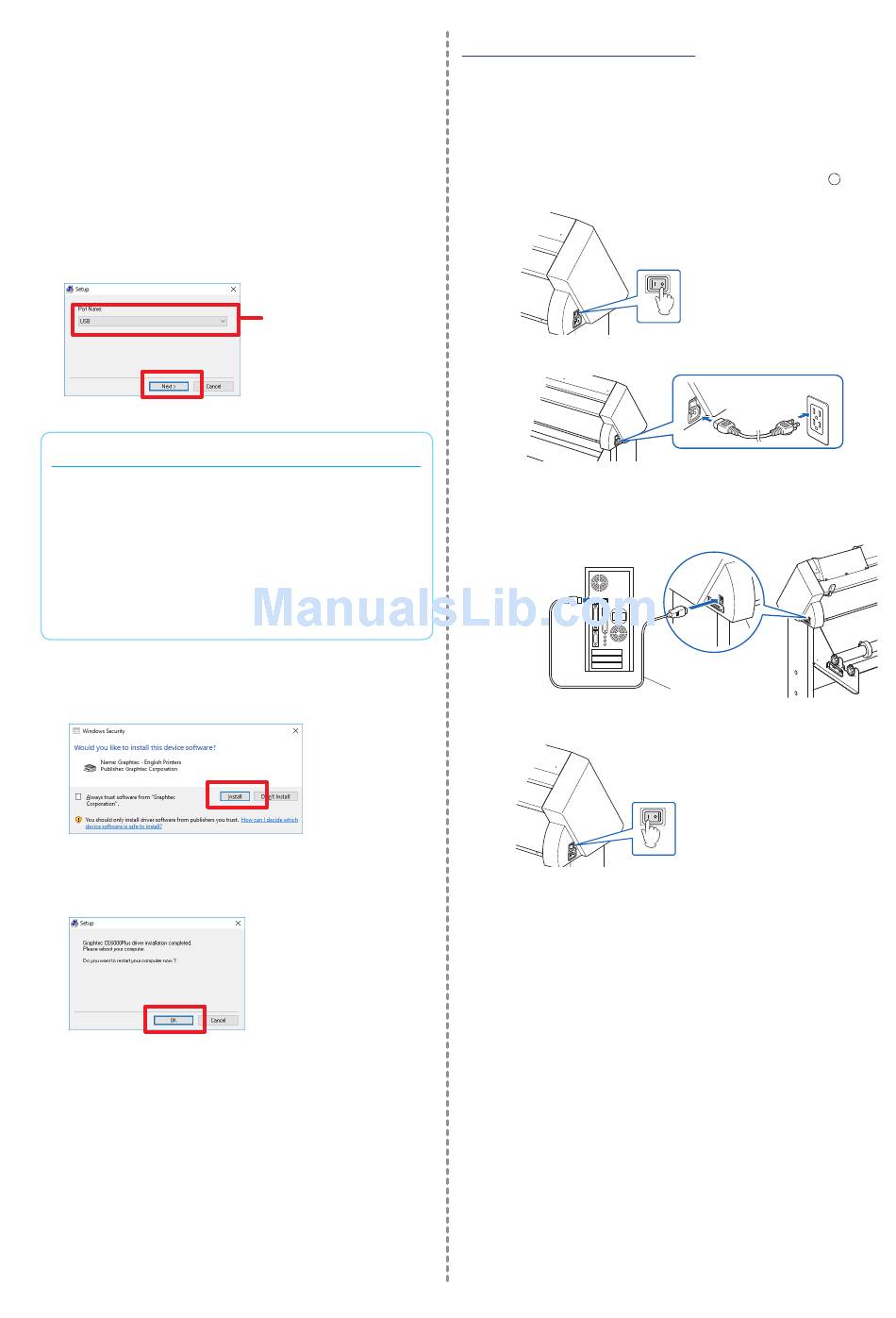

GRAPHTEC CE6000 SERIES Setup Manual page 17

8
A window for selecting the [Port Name] to be used
appears.
Select [USB].
Clicking on [Next] will begin the driver installation
process.
Available Port Names
USB : Selected when a USB cable is used for
connection.
COM1 : Selected when an RS-232C (serial) cable is
used for connection.
FILE : Selected to save outputted data (plot data) to
a file.
Supplement (When selecting the COM1)
To select "COM1" in "Selecting Port Name", do the
installation according to the message.
After the installation is completed, connect the RS-232C
cable. ( For more information about connecting the RS-
232C cable, see "Connecting the computer" in User's
Manual.)
To connect the COM1 for RS-232C, the Cutting Plotter must
be set to "Normal mode". For more information about setting
the COM1, see "Preparing to Cut" in User's Manual.
9
The [Windows Security] screen will appear momentarily.
Click on [Install] to install the [Plotter Driver].
10
Next, the [Update for the Graphtec CE6000Plus driver
was completed] screen will appear.
Click on [OK] to reboot your computer.
This concludes the installation of the [Plotter Driver].
After rebooting your computer, follow the below procedures
to connect the USB cable.
Select "USB"
Connecting the USB Cable
11
First, make sure that Windows 10 has been launched
successfully.
Next, connect the USB cable accompanying the Cutting
Plotter to your computer. Ensure that the Cutting Plotter
is turned off when you do.
(1) Ensure that the Plotter's power is turned off (" "
position).
(2) Connect the power cable.
(3) Connect the USB cable.
1. Connect to your computer.
12
Turn on the Cutting Plotter.
13
Installation of the device starts.
After a while, the printer icon of Plotter will be added
in the "Devices and Printers" screen.
* To display the "Devices and Printers" screen, display the
"Control Panel" screen from the Start menu and then click
on the [Devices and Printers] in the [Hardware and Sound].
his concludes the installation of the driver software.
Next, please install the software applications.
Install the software in accordance with your operating
environment.
17
2. Connect to the
Cutting Plotter.
USB cable
