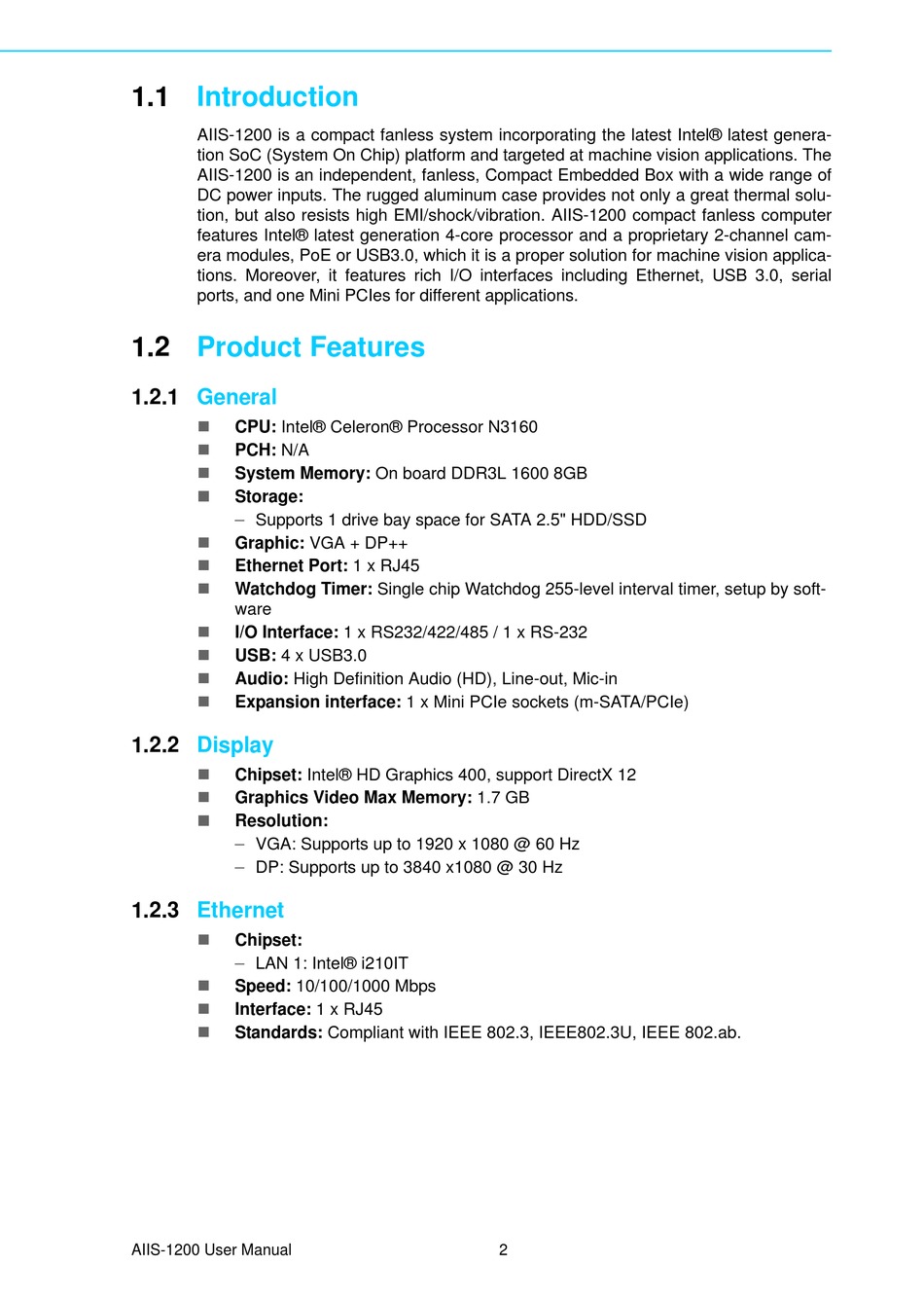

1.1

Introduction

AIIS-1200 is a compact fanless system incorporating the latest Intel® latest genera-
tion SoC (System On Chip) platform and targeted at machine vision applications. The
AIIS-1200 is an independent, fanless, Compact Embedded Box with a wide range of
DC power inputs. The rugged aluminum case provides not only a great thermal solu-
tion, but also resists high EMI/shock/vibration. AIIS-1200 compact fanless computer
features Intel® latest generation 4-core processor and a proprietary 2-channel cam-
era modules, PoE or USB3.0, which it is a proper solution for machine vision applica-
tions. Moreover, it features rich I/O interfaces including Ethernet, USB 3.0, serial
ports, and one Mini PCIes for different applications.
1.2

Product Features

1.2.1

General


CPU: Intel® Celeron® Processor N3160

PCH: N/A

System Memory: On board DDR3L 1600 8GB

Storage:
– Supports 1 drive bay space for SATA 2.5" HDD/SSD

Graphic: VGA + DP++

Ethernet Port: 1 x RJ45

Watchdog Timer: Single chip Watchdog 255-level interval timer, setup by soft-
ware

I/O Interface: 1 x RS232/422/485 / 1 x RS-232

USB: 4 x USB3.0

Audio: High Definition Audio (HD), Line-out, Mic-in

Expansion interface: 1 x Mini PCIe sockets (m-SATA/PCIe)
1.2.2

Display


Chipset: Intel® HD Graphics 400, support DirectX 12

Graphics Video Max Memory: 1.7 GB

Resolution:
– VGA: Supports up to 1920 x 1080 @ 60 Hz
– DP: Supports up to 3840 x1080 @ 30 Hz
1.2.3

Ethernet


Chipset:
– LAN 1: Intel® i210IT

Speed: 10/100/1000 Mbps

Interface: 1 x RJ45

Standards: Compliant with IEEE 802.3, IEEE802.3U, IEEE 802.ab.
