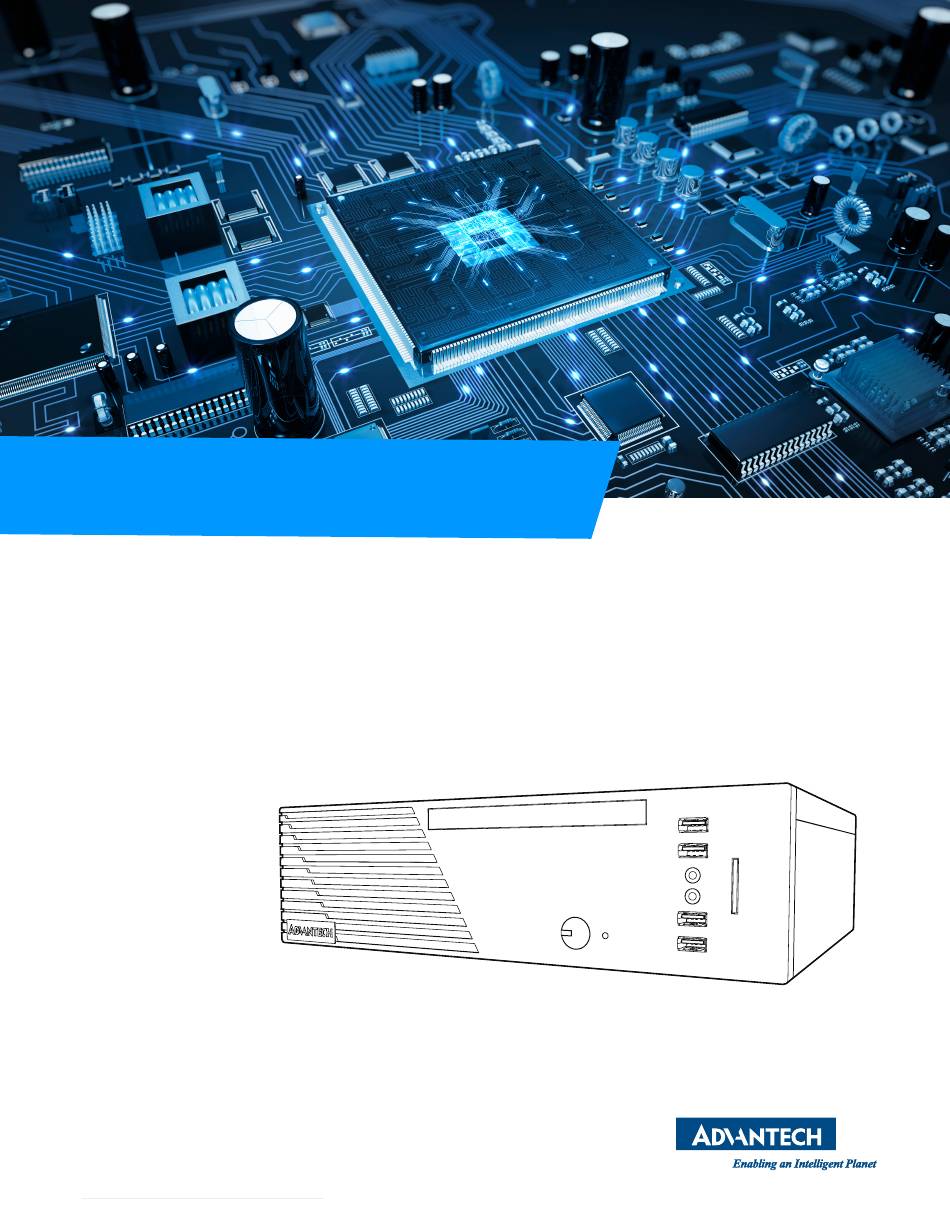

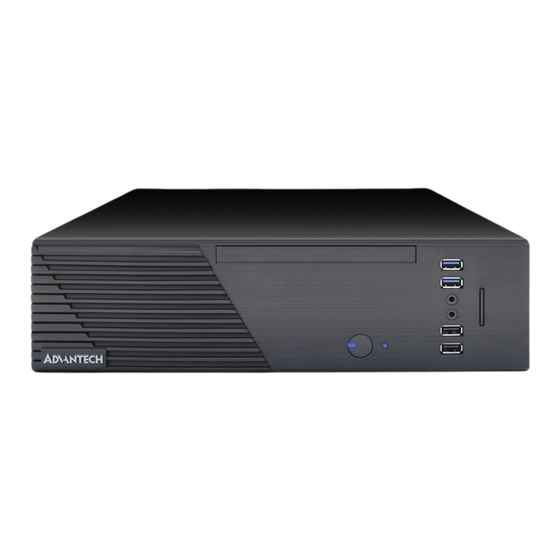

  • Page 1 User Startup Manual Advantech Valor System ANA-D8060 Series...
  • Page 2 There are no user serviceable components inside. Do not operate controls, make adjustments, or perform procedures to the laser device other than those specified herein. Allow only authorized service technicians to repair the laser device. Advantech Valor Startup Manual...
  • Page 3 This equipment is not suitable for use in locations where children are likely to be present. 20. Repair of the device may only be carried out by trained service personnel. Advantech recommends that a service contract be obtained with Advantech Service and that all repairs also be carried out by them.
  • Page 4 Il n’y a aucun composant réparable par l’utilisateur à l’intérieur. N’utilisez pas de commandes, n’effectuez pas de réglages ou n’effectuez pas de procédures sur l’appareil laser autres que celles spécifiées ici. N’autorisez que les techniciens de service agréés à réparer l’appareil laser. Advantech Valor Startup Manual...
  • Page 5 21. La réparation de l’appareil ne peut être effectuée que par du personnel de service qualifié. Advantech recommande qu’un contrat de service soit conclu avec Advantech Service et que toutes les réparations soient également effectuées par eux. Dans le cas contraire, le bon fonctionnement de l’appareil peut être compromis.

  • Page 6: Table Of Contents

    1.1 Introduction 1.2 Features 1.3 Specifications 1.4 Jumper and Connectors 1.5 Board Layout: Jumper and Connector Locations 1.6 AIMB-587 Board Layout 1.7 Safety Precautions 1.8 Jumper Settings 1.9 System Memory 1.10 Memory Installation Procedures 1.11 Processor Installation Advantech Valor Startup Manual...

  • Page 7: General Information

    Chapter General Information Advantech Valor Startup Manual...

  • Page 8: Introduction

    Base system configuration 10.1 lbs. Chassis Black Color Bezel Black Operating Temperature 0 ~ 35ºC (32 ~ 95ºF) Environmental Storage Temperature -20 ~ 70ºC (-4 ~ 158ºF) Operating Humidity 10 ~ 85% Humidity Storage Humidity 10 ~ 95% Advantech Valor Startup Manual...

  • Page 9: Dimensions Diagram

    1.2.1 Dimensions Diagram Dimensions (W x D x H): • 325 x 263 x 89.2 (mm) • 12.8 x 10.8 x 3.6 (inches) 325.00 Advantech Valor Startup Manual...

  • Page 10: Power Supply

    +3.3V and +5V DC maximum combined output power shall not exceed 110W Dimensions 140 mm (L) x 85 mm (W) x 65 mm (H) MTBF >100,000 Hours Safety cUL, TUV, CB, CCC, BSMI EMI/EMC CE, FCC, RCM Advantech Valor Startup Manual...
  • Page 11 Chapter Chassis Advantech Valor Startup Manual...

  • Page 12: Chassis And Drive Access

    2.1 Chassis & Drive Access Figure 2.1 Installing the Rubber Feet Figure 2.2 & 2.3 Removing/Installing the Cover Figure 2.4 Removing the Drive Tray Figure 2.5 Installing ODD & 3.5” HDD Advantech Valor Startup Manual...
  • Page 13 Soyez prudent lors de l’installation ou de l’utilisation des composants avec le châssis ouvert. Être assurez-vous de couper l’alimentation, de débrancher le cordon d’alimentation et de vous mettre à la terre en touchant le châssis métallique avant de manipuler les composants à l’intérieur de la machine. Advantech Valor Startup Manual...

  • Page 14: Operation

    Chapter Operation Advantech Valor Startup Manual...

  • Page 15: Front And Rear Panel

    HDD Activity LED 2x USB 2.0 Ports (Red) Figure 3.1 Motherboard Version Front Panel AC Power Inlet 2x Ethernet Ports 2x Video Display Ports 4x USB 3.2 Ports Audio Ports (DP++) Figure 3.2 Motherboard Version Back Panel Advantech Valor Startup Manual...
  • Page 16 3.1.1 LED Indicator Table 3.1: LED Definition Summary Description Color Location Front Power System Power Blue (Part of Power Switch) HDD Activity Front Panel Advantech Valor Startup Manual...
  • Page 17 Appendix System Board Reference Advantech Valor Startup Manual...

  • Page 18: Introduction

    6 USB 3.2 Gen1 ports with transmission rates up to 5 Gbps, 4 USB 3.2 Gen2 ports with transmission rates up to 10 Gbps. • GPIO: AIMB-587 supports 16-bit GPIO from super I/O for general purpose control application. Advantech Valor Startup Manual...
  • Page 19 Measure the maximum current value which system under maximum load (CPU: Top speed, RAM & Graphic: Full loading) 1.3.8 Mechanical • Board size: 244 mm x 244 mm (9.6” x 9.6”) • Board weight: 0.365 kg Advantech Valor Startup Manual...

  • Page 20: Jumper And Connectors

    AUDIO1 Line Out, Mic IN connector INV1 EDP Backlight Inverter Power Connector FPAUDIO1 Front Panel audio connector (FP_AU-DIO) SPDIF1 Digital Audio connector 4 x 1 header pitch = 2.54 mm LANLED1 Front Panel LAN Indicator connector Advantech Valor Startup Manual...
  • Page 21 ATX 8pin 12V Auxiliary power connector EC programming header CPUFAN1 CPU FAN connector (4 pin) SYSFAN1/2/3/4 System FAN Power Connector (4 pin) (Fan3/Fan4 Optional) VOLT1 Voltage Display connector KBMS1 On board external keyboard and Mouse connector Advantech Valor Startup Manual...

  • Page 22: Board Layout: Jumper And Connector Locations

    PCIEX8_1 JCMOS1 FPAUD1 LPC1 JUSBPWR2 SATA2/SATA1 SPDIF1 SATA3/SATA4 PCIEX16_2 LANLED1 SATA6/SATA5 JUSBPWR1 SATA7/SATA8 PCIEX1_1 SPI1_BIOS1 SPI_CN1 KBMS1 JFP2 SMBUS1 VOLT1 JFP1 USB910 USB1314/USB1516 JOBS1+JWDT1 USB1112 USB78/USB56 Figure 1.1 Jumper and Connector Location Figure 1.2 I/O Connectors Advantech Valor Startup Manual...

  • Page 23: Safety Precautions

    Caution! There is a danger of a new battery exploding if it is incorrectly installed. Do not attempt to recharge, force open, or heat the battery. Replace the battery only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions. Advantech Valor Startup Manual...
  • Page 24 N’essayez pas de recharger, de forcer ou de chauffer la batterie. Remplacez la batterie uniquement par le même type ou un type équivalent recommandé par le fabricant. Jetez les piles usagées conformément aux instructions du fabricant. Advantech Valor Startup Manual...

  • Page 25: Jumper Settings

    CMOS data, set CMOS1 to 2-3 closed for just a few seconds, and then move the jumper back to 1-2 closed. This procedure will reset the CMOS to its default setting. Table 1.3: CMOS1 Function Jumper Setting *Keep CMOS data (1-2 closed) Clear CMOS data (3-4 closed) * Default Advantech Valor Startup Manual...
  • Page 26 1.8.4 JUSBPWR1-2 (USB Power Selection Connector) JUSBPWR1: selection for USB910, USB1112, USB1314, USB1516 JUSBPWR2: selection for LAN1_USB12, LAN2_USB34, USB56, USB78 Table 1.5: JUSBPWR1-2 (USB Power Selection Connector) Pin Name +V5_Vsb +V5_USB Default: 1-2 Pin (+5 VSB) Advantech Valor Startup Manual...
  • Page 27 1.8.6 JOBS1+JWDT1: Watchdog Timer Output and OBS Beep Table 1.7: JOBS1+JWDT1: Watchdog Timer Output and OBS Beep Pin Name Watch Dog Reset# Output System Reset Input# SIO Warning Beep Output SP1 Buzzer Beep Input Default 2-3. 4-5. Advantech Valor Startup Manual...
  • Page 28 (5-6) (7-9) (8-10) (13-15) (14-16) 9 11 13 15 17 10 12 14 16 18 RS-422 Mode (3-4) (9-11) (10-12) (15-17) (16-18) 9 11 13 15 17 10 12 14 16 18 RS-485Mode (1-2)(9-11)(10-12)(15-17)(16-18) 9 11 13 15 17 Advantech Valor Startup Manual...

  • Page 29: System Memory

    AIMB-587 has four 288-pin memory sockets for 2933/2666/2400 MHz memory modules with maximum capacity of 128 GB (Maximum 32 GB for each DIMM). AIMB-587QG2/L supports only non-ECC DDR4 memory modules and do not support registered DIMMs (RDIMMs). AIMB-587F/WG2 can support ECC/non-ECC DDR4 memory module. Advantech Valor Startup Manual...

  • Page 30: Memory Installation Procedures

    The built-in second-level cache in the processor yields much higher performance than conventional external cache memories. 1.12 Processor Installation The AIMB-587 is designed for LGA1200, Intel Xeon and Intel Core i7/Core i5/ Core i3/Pentium/Celeron processor. Ed.1 - MAR2022 Advantech Valor Startup Manual...
