2.3.1.5 VGA Connector
The AIIS-1200 provides a high resolution VGA interface with a 15-pin D-sub connec-
tor to support a VGA CRT monitor. It supports display resolution of up to 2048 x 1152
@ 60 Hz.
Table 2.6: VGA Connector Pin Assignments
Pin Signal Name
1 Red
3 Blue
5 GND
7 GND
9 +5V
11 NC
13 H-SYNC
15 DDC_CLK
2.3.1.6 DP++ Connector
AIIS-1200 provides a high resolution DVI-D, powered by Intel® QM170 accelerator. It
integrates both analog and digital video signals. It supports display resolution of up to
1920 x 1080 @ 60 Hz.
Table 2.7: DP Port Connector Pin Assignments
Pin Signal Name
1 TMDS Data 2-
3 GND
5 N/C
7 DDC data
9 TMDS Data 1-
11 GND
13 N/C
15 GND
17 TMDS Data 0-
19 GND
21 N/C
23 TMDS Clock +
5
10
11
15

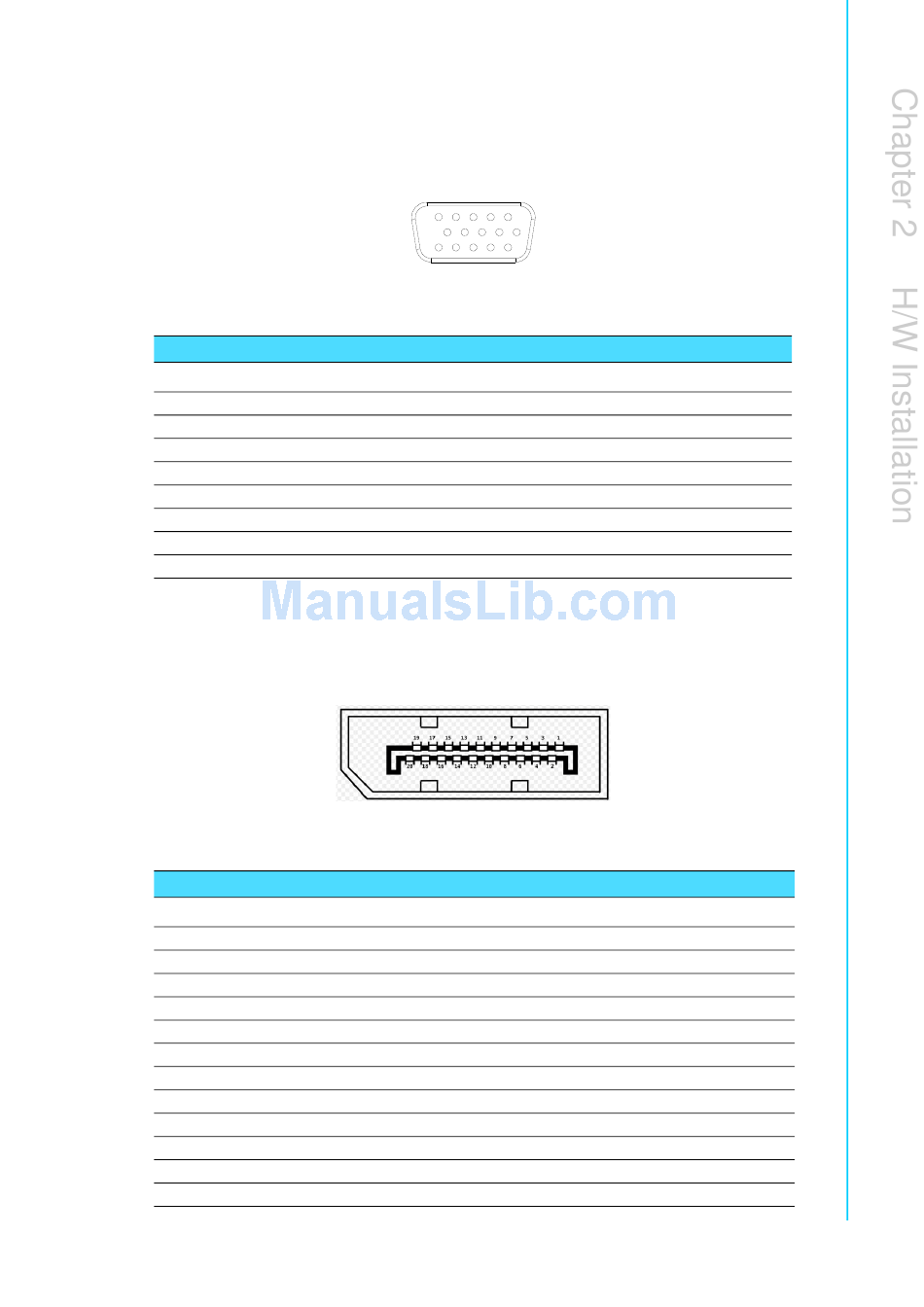

Figure 2.5 VGA Connector

Pin
2
4
6
8
10
12
14
Figure 2.6 DP++ Connector
Pin
2
4
6
8
10
12
14
16
18
20
22
24
13
1
6
Signal Name
Green
NC
GND
GND
GND
DDC_DAT
V-SYNC
Signal Name
TMDS Data 2+
N/C
DDC Clock
N/C
TMDS Data 1+
N/C
+5V
Hot plug detect
TMDS Data 0+
N/C
GND
TMDS Clock -
