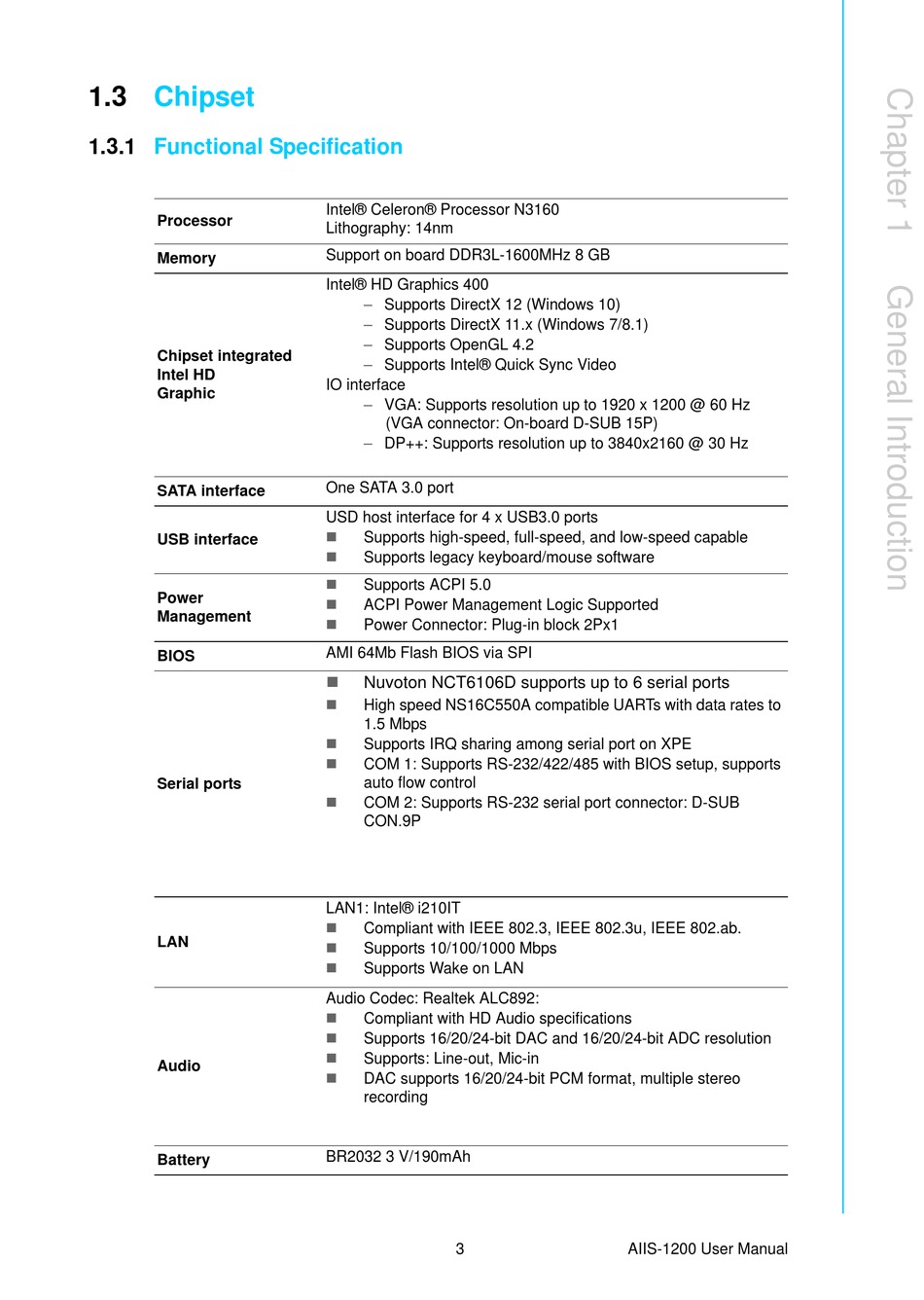

Chipset; Functional Specification - Advantech AIIS-1200 User Manual

1.3

Chipset

1.3.1

Functional Specification

Processor
Memory
Chipset integrated
Intel HD
Graphic
SATA interface
USB interface
Power
Management
BIOS
Serial ports
LAN
Audio
Battery
Intel® Celeron® Processor N3160
Lithography: 14nm
Support on board DDR3L-1600MHz 8 GB
Intel® HD Graphics 400
– Supports DirectX 12 (Windows 10)
– Supports DirectX 11.x (Windows 7/8.1)
– Supports OpenGL 4.2
– Supports Intel® Quick Sync Video
IO interface
– VGA: Supports resolution up to 1920 x 1200 @ 60 Hz
(VGA connector: On-board D-SUB 15P)
– DP++: Supports resolution up to 3840x2160 @ 30 Hz
One SATA 3.0 port
USD host interface for 4 x USB3.0 ports

Supports high-speed, full-speed, and low-speed capable

Supports legacy keyboard/mouse software

Supports ACPI 5.0

ACPI Power Management Logic Supported

Power Connector: Plug-in block 2Px1
AMI 64Mb Flash BIOS via SPI

Nuvoton NCT6106D supports up to 6 serial ports

High speed NS16C550A compatible UARTs with data rates to
1.5 Mbps

Supports IRQ sharing among serial port on XPE

COM 1: Supports RS-232/422/485 with BIOS setup, supports
auto flow control

COM 2: Supports RS-232 serial port connector: D-SUB
CON.9P
LAN1: Intel® i210IT

Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.ab.

Supports 10/100/1000 Mbps

Supports Wake on LAN
Audio Codec: Realtek ALC892:

Compliant with HD Audio specifications

Supports 16/20/24-bit DAC and 16/20/24-bit ADC resolution

Supports: Line-out, Mic-in

DAC supports 16/20/24-bit PCM format, multiple stereo
recording
BR2032 3 V/190mAh
